Pioneer PDP-507XD Service Manual

PDP-507XD
10
1234
1234
C
D
F
A
B
E

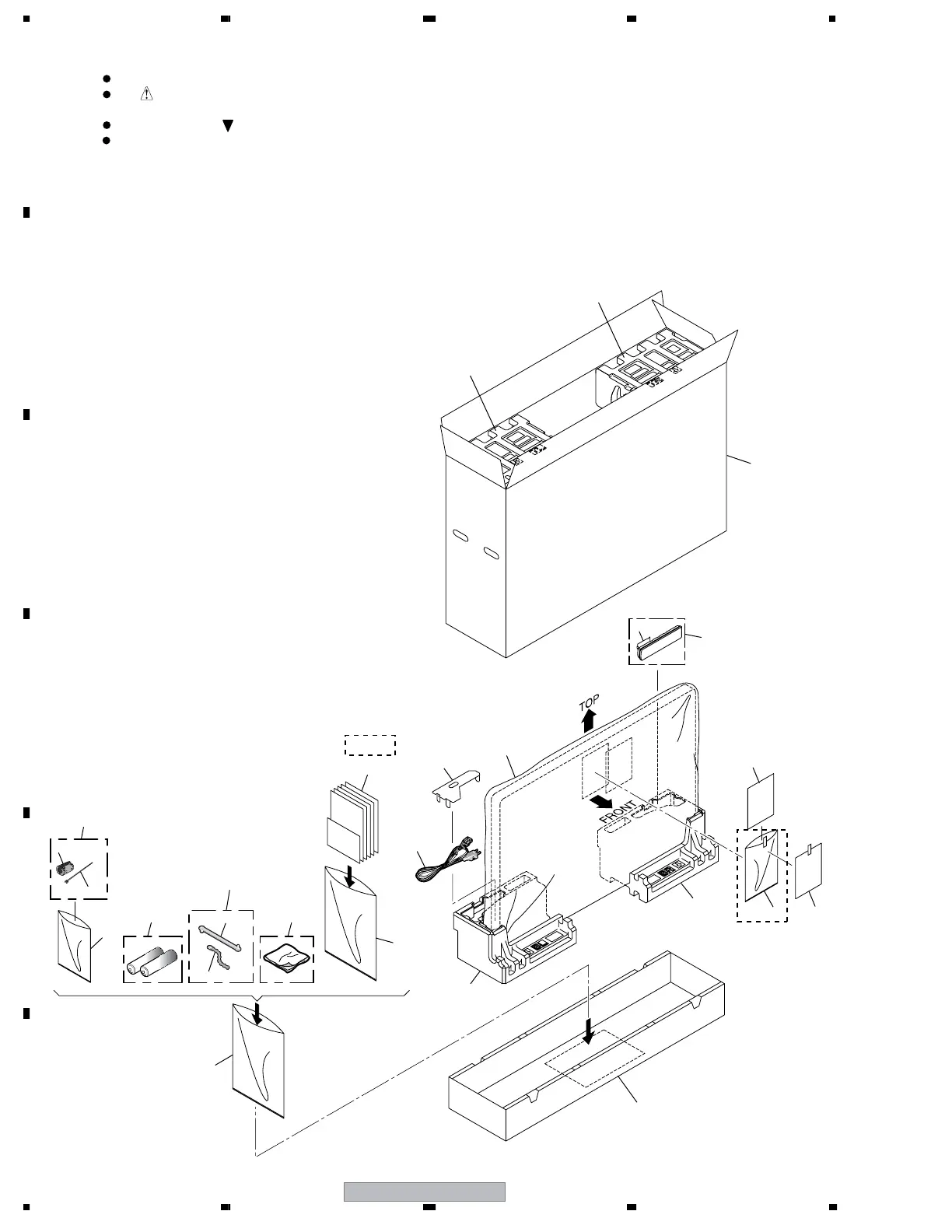

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING SECTION
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
Speed clamp ×3
Bead band ×3
Ferrite core
Cable tie
4
6
15
10,
8, 9, 12
7
19
20
13
22
16
16
1
21
11
14
WYVIXK5
model only
WYVIXK5
model only
3
2
24
17
23
18
5

Pioneer PDP-507XD Specifications

General

Comb filter	3D
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
Display diagonal	50 \
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Viewable size diagonal	1270 mm
Contrast ratio (typical)	4000:1
