PDP-507XD
144
1234
1234
C
D
F
A
B
E

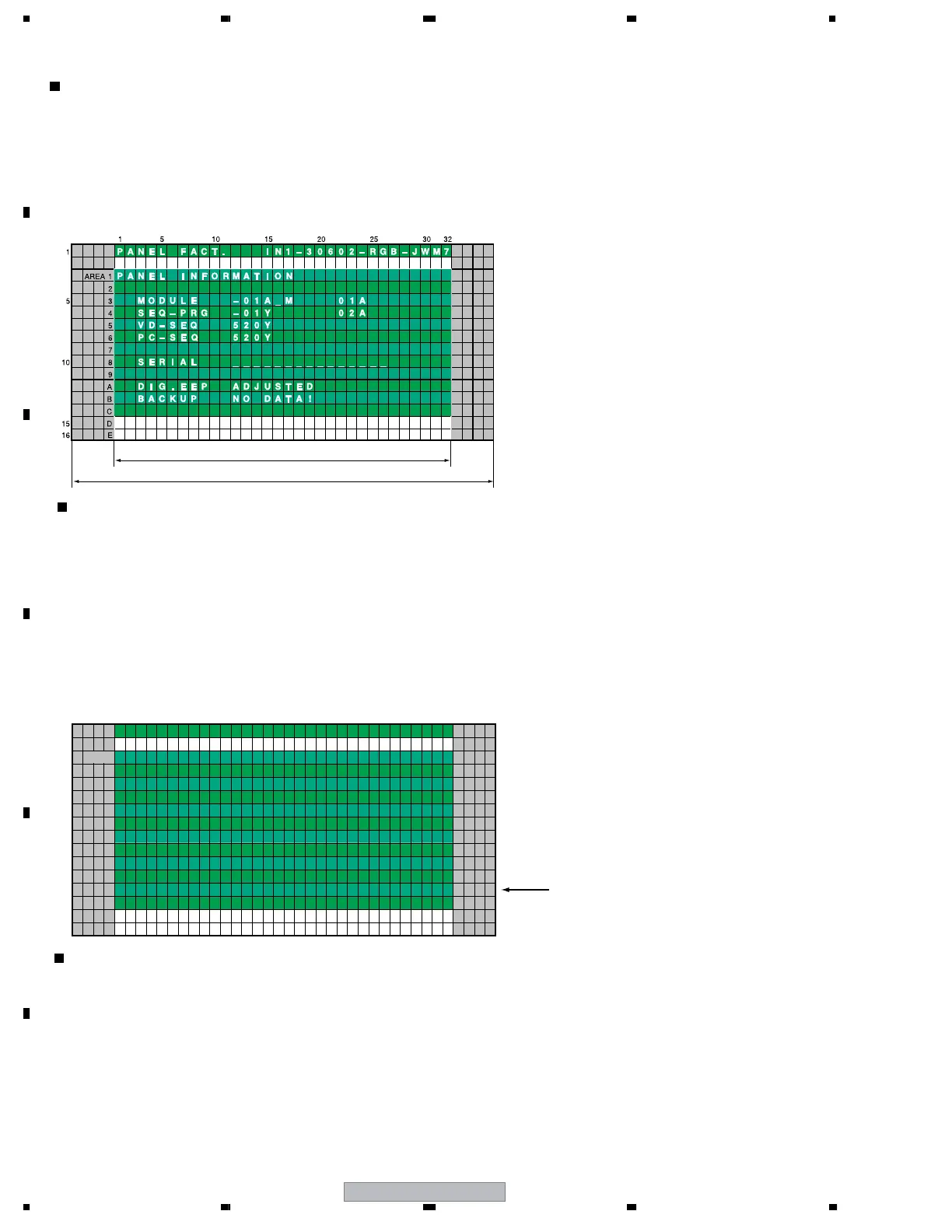

8.2.2.1 PANEL INFORMATION
• Data, such as the version of the microcomputer of the panel, product serial number, and statuses of memories for
adjustment values for the main unit and for backup, are displayed. No other layers are nested below this layer, and
there are no adjustment items.
MODULE : The version of data written in the Module microcomputer (IC3151) is indicated.
SEQ-PRG : The version of data written in the Sequence Program Storage Memory (IC3301) is indicated.
VD-SEQ : The Drive Sequence version for Video mode is indicated.
PC-SEQ : The Drive Sequence version for PC mode is indicated.
SERIAL : The serial number of the module is indicated.
DIG.EEP : The adjusted status of the EEPROM that is mounted on the DIGITAL Assy is indicated.
BACKUP : The adjusted status of the EEPROM for backup that is mounted on the SENSOR Assy is indicated.
• In the following examples, GUI images for a 50-inch model are indicated. Although the display areas for the menu for
42-inch and 50-inch models are different, the items to be displayed are the same.
<DOWN> : Shifting to PANEL WORKS
<UP> : Shifting to COMBI MASK SETUP
(+)
<L/R> : Updating displayed information
7 Key operation
Details of indications in each layer
Display items:
Contents of the Display item
Display area for 42-inch model
Display area for 50-inch model
• PM-B1 to B5: The accumulated pulse-meter counts for the 5 blocks on the screen are indicated.
(the lowest-order digit represents millions of pulses.)
• HR-MTR: The hour-meter value (accumulated power-on hours) is indicated.
• P-COUNT: The accumulated power-on count is indicated.
• TEMP1: The current panel temperature and the historical maximum temperature recorded in memory are indicated.
The range of temperature indication is from -50.0 to +99.9. (The temperature unit is " °C (Centigrade) ".)
• Data on operations, such as the accumulated pulse-meter counts, hour-meter count, power-on count, and temperature
detected by the sensor, are sent back. No other layers are nested below this layer, and there are no adjustment items.
8.2.2.2 PANEL WORKS
<DOWN> : Shifting to POWER DOWN
<UP> : Shifting to PANEL INFORMATION
<L/R> : Updating displayed information
7 Key operation
A.PNEL
APNEL OWRKS
MP–B1 000 00
MP–B2 000 00
751
67
M
M0
000 00
000 00
825
68
M
M6
000 0073M3
000 205 0M2H
MP–B3
MP–B4
MP–B5
–PCOU TN00000059ITMSE
ETMP1 +2 4.7+78.0/
RH–MTR
FACT
I–N1 3 2060 –RGB WJ–M7
1
5
10
15
16
15 10 15 20 25 30 32
1
2
3
4
5
6
7
8
9
A
B
C
D
E
AREA
Temperature unit is " °C (Centigrade) ".
