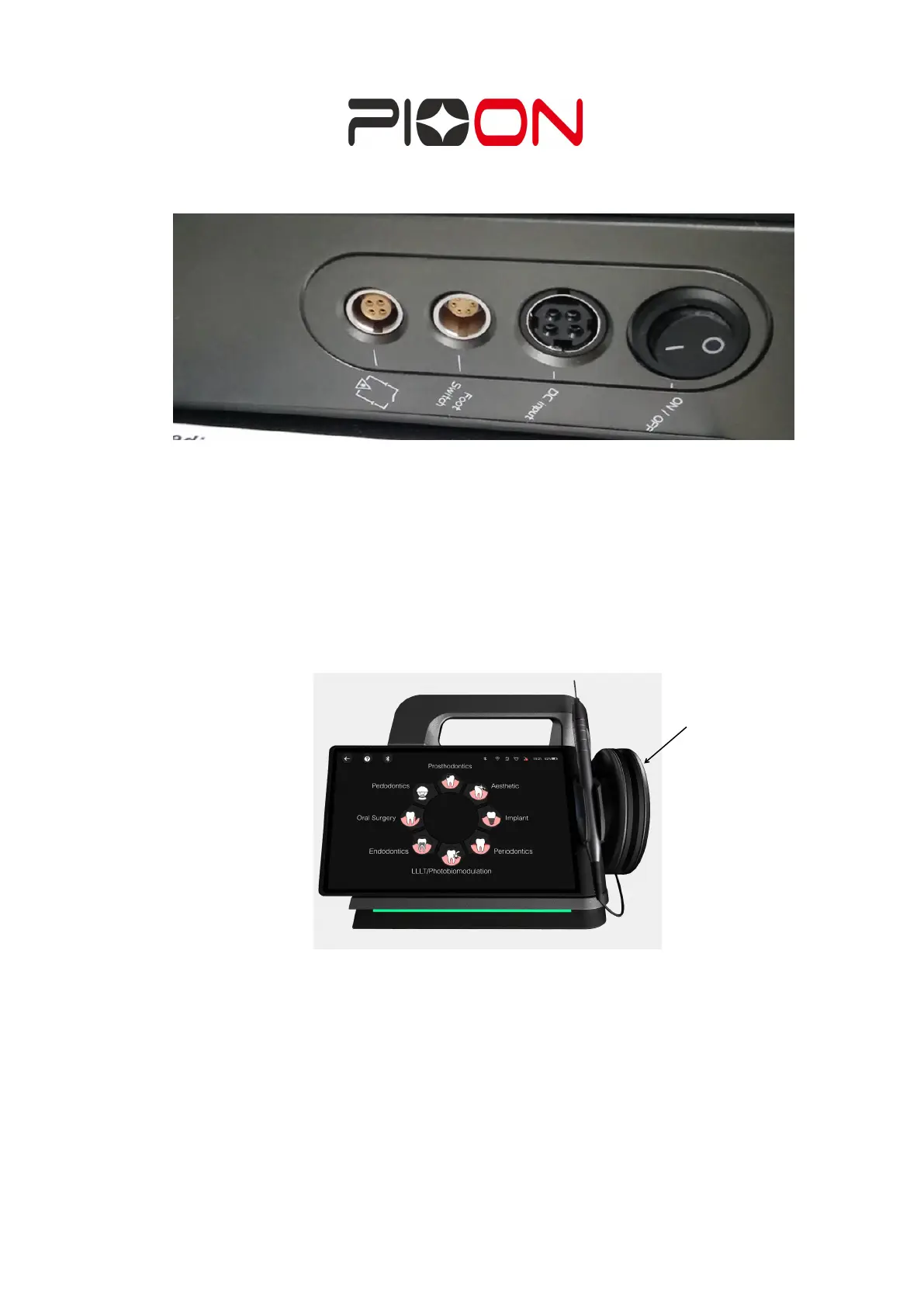

Figure 2 The connecting positions of power adapter and remote interlock.
E. Carefully take the fiber roller out of package and check for damage.
The fiber cable is about 3 meters long. DO NOT bend or apply physical pressure
to the fiber with radius less than 50mm or to an angle less than 90 degrees.
F. Connect the fiber cable with the fiber.
G. Mounting the fiber roller.
Figure 3 The fiber holder
H. Attach the other end of the fiber to the SMA socket on the main unit.
 Remove the protective cap of the SMA905 connector. Hold the metal plug in
your hand and do not pull on the fiber.
 Unscrew the protective cap of the SMA socket on the unit.

Pioon S3 Specifications

General

Brand	Pioon
Model	S3
Category	Measuring Instruments
Language	English
