PIPER
CHEROKEE SIX
SERVICE MANUAL

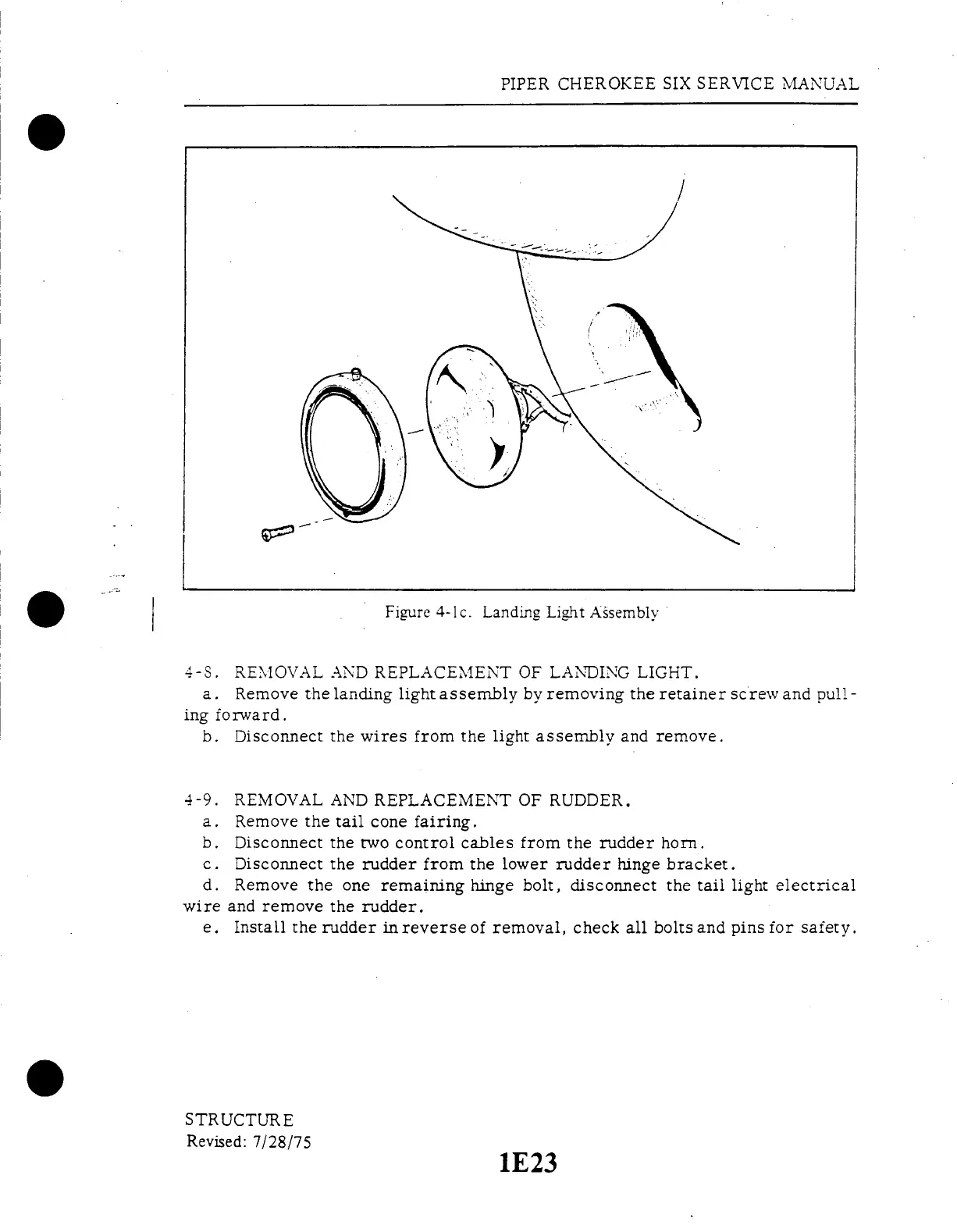

Figure 4-lc.
Landing Light
Assembly
4-8. REMOVAL AND REPLACEMENT OF LANDING LIGHT.
a. Remove the landing
light assembly by removing the retainer
screw and pull-
ing forward.
b. Disconnect
the wires from the light
assembly and remove.
4-9. REMOVAL
AND REPLACEMENT
OF RUDDER.
a. Remove
the tail cone
fairing.
b. Disconnect the two control cables from the rudder horn.
c. Disconnect
the rudder from the lower
rudder hinge bracket.
d. Remove the one remaining
hinge bolt, disconnect
the tail light electrical
wire and remove the rudder.
e. Install the rudder in reverse
of removal, check all bolts and
pins for safety.
STRUCTURE
Revised:
7/28/75
1E23
