PIPER
CHEROKEE
SIX
SERVICE
MANUAL

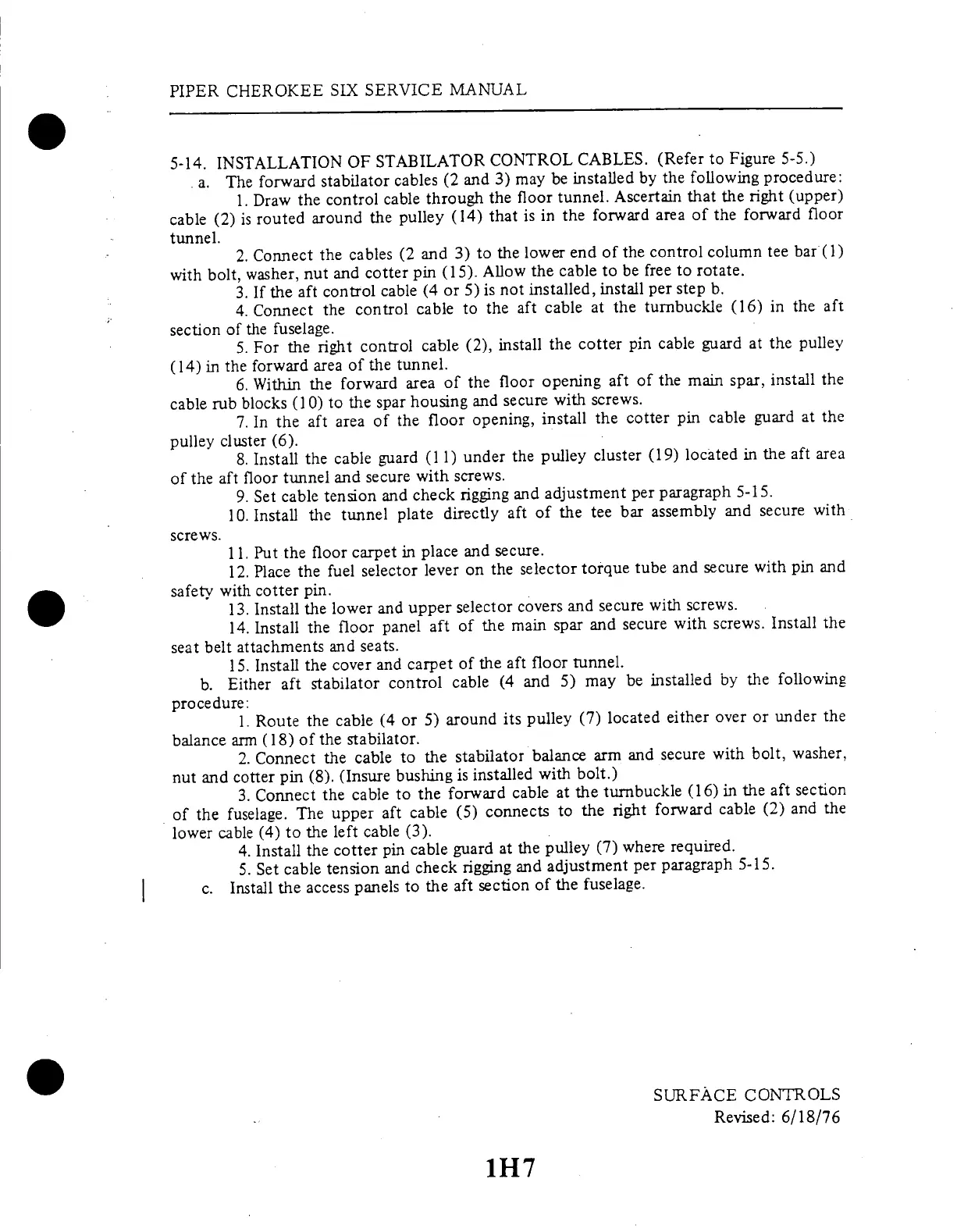

5-14.
INSTALLATION
OF
STABILATOR
CONTROL
CABLES.
(Refer
to
Figure
5-5.)
a.
The
forward
stabilator
cables
(2
and
3)
may
be
installed
by
the
following
procedure:
1.
Draw
the
control
cable
through
the
floor
tunnel.
Ascertain
that
the
right
(upper)
cable
(2)
is routed
around
the
pulley
(14)
that
is
in
the
forward
area
of
the
forward
floor
tunnel.
2.
Connect
the
cables
(2
and
3)
to
the
lower
end
of
the
control
column
tee
bar
(1)
with
bolt,
washer,
nut
and
cotter
pin
(15).
Allow
the
cable
to
be
free
to
rotate.
3.
If
the
aft
control
cable
(4
or
5)
is
not
installed,
install
per
step
b.
4.
Connect
the
control
cable
to
the
aft
cable
at
the
turnbuckle
(16)
in
the
aft
section
of
the
fuselage.
5.
For
the
right
control
cable
(2),
install
the
cotter
pin
cable
guard
at
the
pulley
(14)
in
the
forward
area
of
the
tunnel.
6.
Within
the
forward
area
of
the
floor
opening
aft
of
the
main
spar,
install
the
cable
rub
blocks
(10)
to
the
spar
housing
and
secure
with
screws.
7.
In
the
aft
area
of
the
floor
opening,
install
the
cotter
pin
cable
guard
at
the
pulley
cluster
(6).
8.
Install
the
cable
guard
(11)
under
the
pulley
cluster
(19)
located
in
the
aft
area
of
the
aft
floor
tunnel
and
secure
with
screws.
9.
Set
cable
tension
and
check
rigging
and
adjustment
per
paragraph
5-15.
10.
Install
the
tunnel
plate
directly
aft
of
the
tee
bar
assembly
and
secure
with
screws.
11.
Put
the
floor
carpet
in
place
and
secure.
12.
Place
the
fuel
selector
lever
on
the
selector
torque
tube
and
secure
with
pin
and
safety
with
cotter
pin.
13.
Install
the
lower
and
upper
selector
covers
and
secure
with
screws.
14.
Install
the
floor
panel
aft
of
the
main
spar
and
secure
with
screws.
Install
the
seat
belt
attachments
and
seats.
15.
Install
the
cover
and
carpet
of
the
aft
floor
tunnel.
b.
Either
aft
stabilator
control
cable
(4
and
5)
may
be
installed
by
the
following
procedure:
1.
Route
the
cable
(4
or
5)
around
its
pulley
(7)
located
either
over
or
under
the
balance
arm
(18)
of
the
stabilator.
2.
Connect
the
cable
to
the
stabilator
balance
arm
and
secure
with
bolt,
washer,
nut
and
cotter
pin
(8).
(Insure
bushing
is
installed
with
bolt.)
3.
Connect
the
cable
to
the
forward
cable
at
the
turnbuckle
(16)
in
the
aft
section
of
the
fuselage.
The
upper
aft
cable
(5)
connects
to
the
right
forward
cable
(2)
and
the
lower
cable
(4)
to
the
left
cable
(3).
4.
Install
the
cotter
pin
cable
guard
at
the
pulley
(7)
where
required.
5.
Set
cable
tension
and
check
rigging
and
adjustment
per
paragraph
5-15.
c.
Install
the
access
panels
to
the
aft
section
of
the
fuselage.
