PIPER
CHEROKEE
SIX
SERVICE
MANUAL
2598
6
12
1. TEE
BAR, CONTROL
COLUMN
2.
CABLE,
RIGHT
FORWARD
3. CABLE,
LEFT
FORWARD
4.
CABLE,
LEFT-LOWER
AFT
5. CABLE,
RIGHT-UPPER
AFT
6. PULLEY,
FORWARD
CLUSTER
7. PULLEY,
AFT
8. BOLT,
WASHER,
NUT
&
COTTER
PIN
9. BOLT,
WASHER
&
NUT
10. BLOCK,
CABLE
RUB
11.
GUARD,
CABLE
12.
BOLT,
WASHER
(7) &
NUT
13.
BOLT,
WASHER
(11)
& NUT
14. PULLEY, FORWARD
15.
BOLT,
WASHER.
NUT
&
COTTER
PIN
16.
TURNBUCKLE
17. WEIGHT,
BALANCE
ARM
18.
BALANCE
ARM,
STABILATOR
19.
PULLEYS

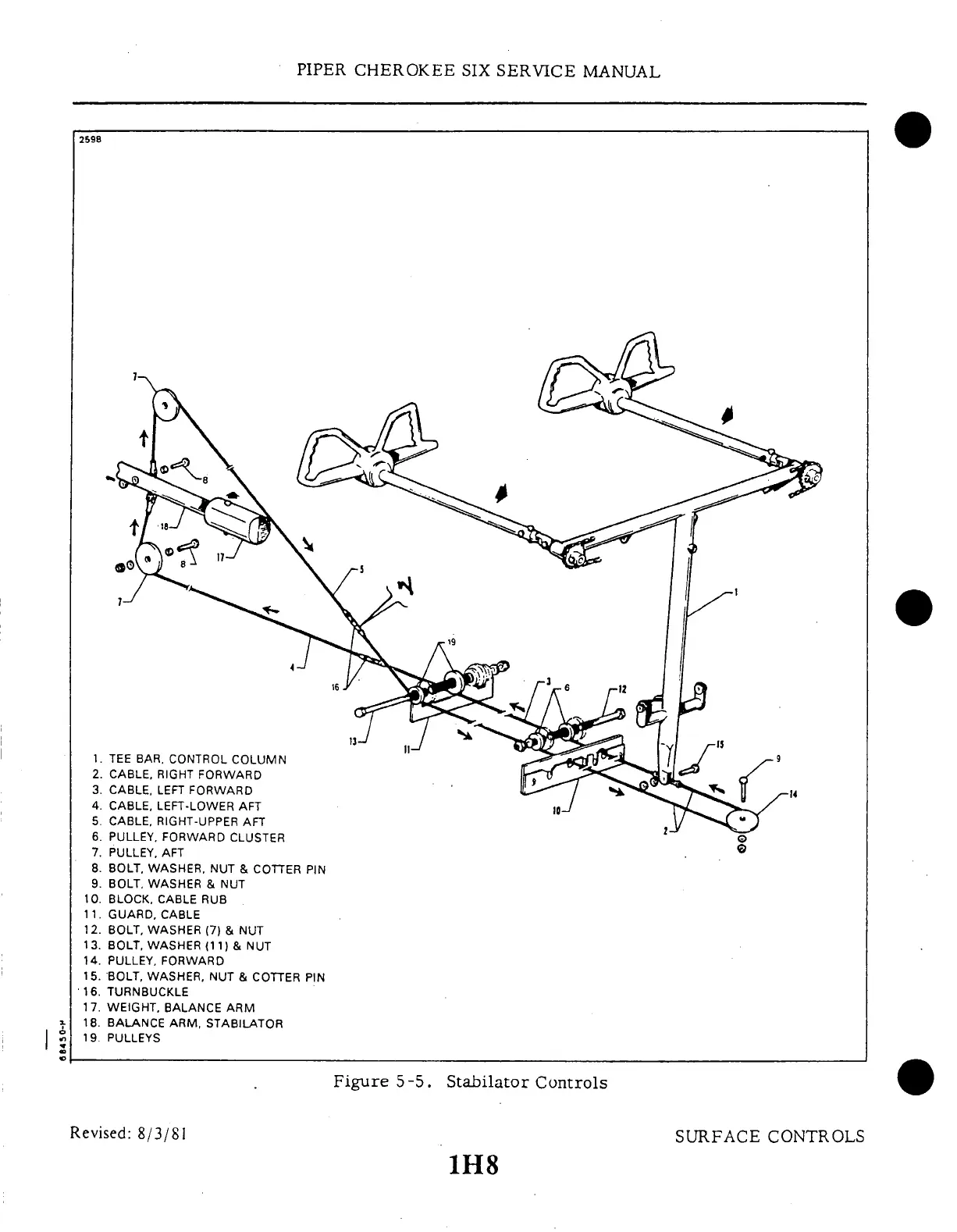

Figure
5-5.
Stabilator
Controls
Revised:
8/3/81
SURFACE
CONTROLS
1H8
