I. CONTROL WHEEL, TRIM
2. INDICATOR, TRIM POSITION
3. DRUM, TRIM CABLE
4. MOUNTING BRACKET
5. CLEVIS PIN, WASHER & COTTER PIN
6. PULLEY CLUSTER
7. BOLT, BUSHING,
WASHER
& NUT
8. CABLE, RIGHT FORWARD
9. CABLE,
LEFT FORWARD
10. TURNBUCKLE, RIGHT
II. TURNBUCKLE, LEFT
12. CABLE, AFT
13. PULLEY CLUSTER
14. BOLT, BUSHING,
WASHER
(3) & NUT
15. GUARD - BOLT, BUSHING, WASHER & NUT
16. RIB,
HORIZONTAL
SUPPORT
17.
PLATE,
RIB
18. GUARD
19. BUSHING, BARREL
20. BARREL,
TRIM
-II
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1643
8
21. CLIP, DIAGONAL RIB
22.
RIB, DIAGONAL
SUPPORT
23. SCREW, TRIM
24.
BOLT, WASHER
(2) &
NUT
25.
LINK
25. BOLT, WASHER (2) & NUT
27. JAM NUT
20.
ARM, TRIM
CONTROL
29. BUSHING BARREL
30.
WASHER,
THRUST
31.
WASHER,
SPACER
32.
SNAP
RING
33.
GUARD
CABLE
34. PULLEY CLUSTER
35. PULLEY CLUSTER
38. PULLEY CLUSTER
37.
BOLT,
WASHER
& NUT
38. GUARD, CABLE
39.
RUB BLOCK

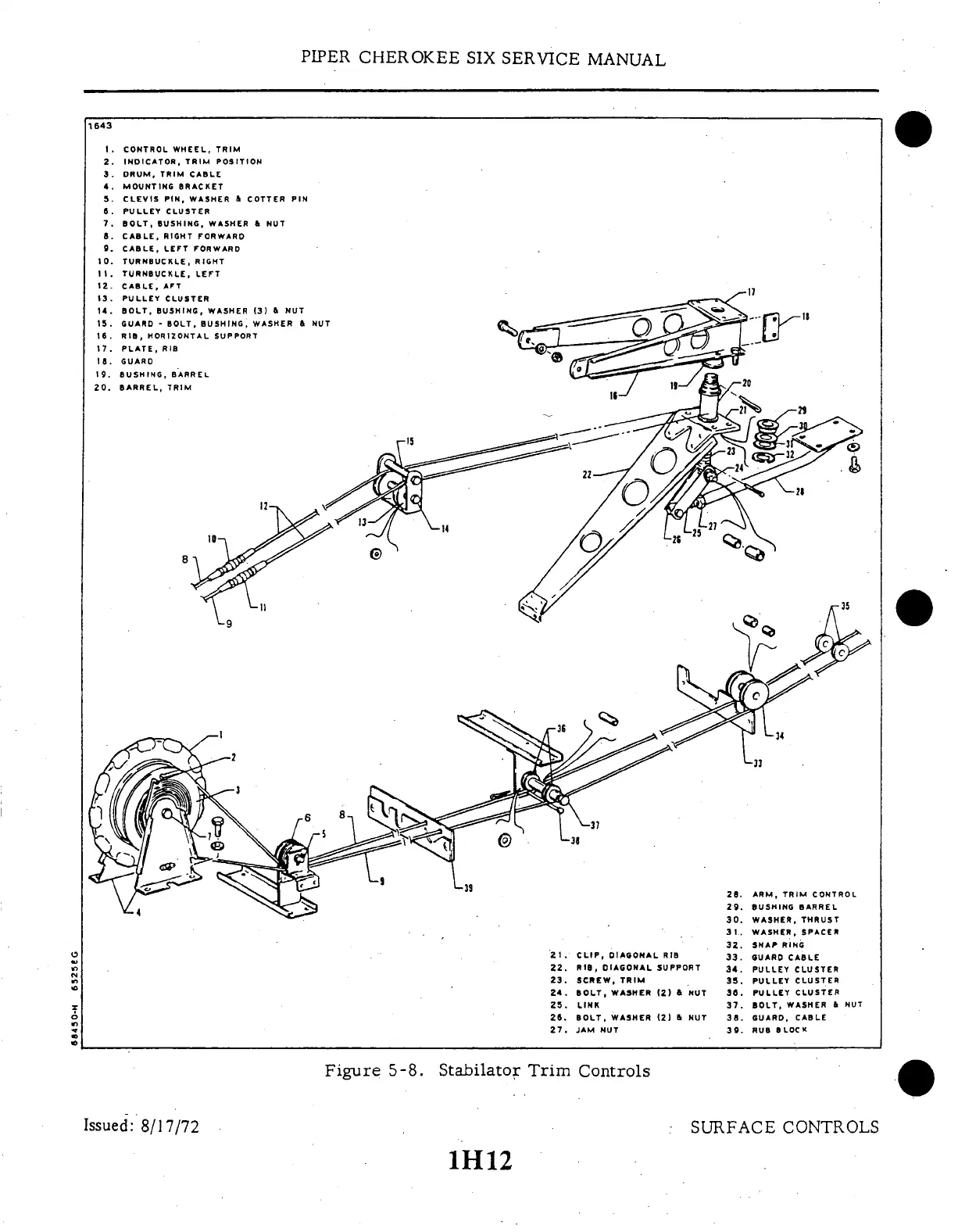

Figure 5-8.
Stabilator Trim
Controls
