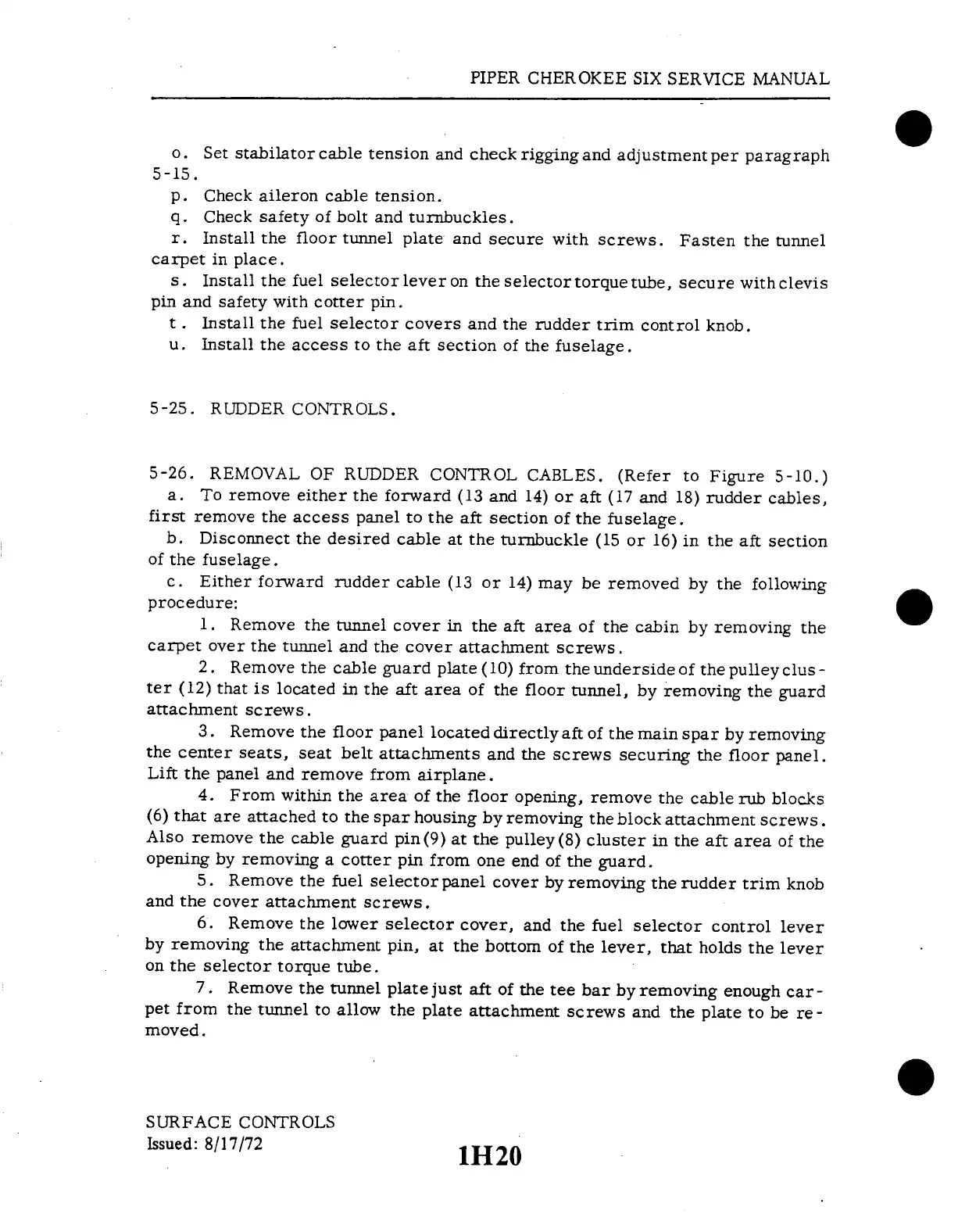

Piper Cherokee Six - Page 188

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
o. Set
stabilator
cable
tension
and
check
rigging
and
adjustment
per
paragraph
5-15.
p.
Check
aileron
cable
tension.
q.
Check
safety
of
bolt
and
turnbuckles.
r.
Install
the
floor
tunnel
plate
and
secure
with
screws.
Fasten
the
tunnel
carpet
in
place.
s.
Install
the
fuel
selector
lever
on
the
selector
torque
tube,
secure
with
clevis
pin
and
safety
with
cotter
pin.
t.
Install
the
fuel
selector
covers
and
the
rudder
trim
control
knob.
u.
Install
the
access
to
the
aft
section
of the
fuselage.
5-25.
RUDDER
CONTROLS.
5-26.
REMOVAL
OF
RUDDER
CONTROL
CABLES.
(Refer
to
Figure
5-10.)
a.
To
remove
either
the
forward
(13
and
14)
or
aft
(17
and
18)
rudder
cables,
first
remove
the
access
panel
to the
aft
section
of
the
fuselage.
b.
Disconnect
the
desired
cable
at the
turnbuckle
(15
or
16) in
the
aft
section
of
the
fuselage.
c.
Either
forward
rudder
cable
(13
or 14)
may
be
removed
by
the
following
procedure:
1. Remove
the
tunnel
cover
in
the
aft
area
of the
cabin
by removing
the
carpet
over
the
tunnel
and
the
cover
attachment
screws.
2.
Remove
the
cable
guard
plate
(10)
from
the
underside
of
the
pulley
clus
-
ter
(12)
that
is
located
in
the
aft
area
of the
floor
tunnel,
by removing
the
guard
attachment
screws.
3.
Remove
the
floor
panel
located
directly
aft
of the
main
spar
by removing
the
center
seats,
seat
belt
attachments
and
the
screws
securing
the
floor
panel.
Lift
the
panel
and
remove
from
airplane.
4.
From
within
the
area
of
the
floor
opening,
remove
the
cable
rub
blocks
(6)
that
are
attached
to
the
spar
housing
by
removing
the
block
attachment
screws.
Also
remove
the
cable
guard
pin(9)
at
the
pulley(8)
cluster
in
the
aft
area
of the
opening
by
removing
a
cotter
pin
from
one
end
of
the
guard.
5.
Remove
the
fuel
selector
panel
cover
by
removing
the
rudder
trim
knob
and
the
cover
attachment
screws.
6.
Remove
the
lower
selector
cover,
and
the
fuel
selector
control
lever
by
removing
the
attachment
pin,
at
the
bottom
of
the
lever,
that
holds
the
lever
on
the
selector
torque
tube.
7.
Remove
the
tunnel
plate
just
aft
of
the
tee
bar
by
removing
enough
car-
pet
from
the
tunnel
to
allow
the
plate
attachment
screws
and
the
plate
to
be
re-
moved.
SURFACE
CONTROLS
Issued:
8/17/72
1H20
1H20
