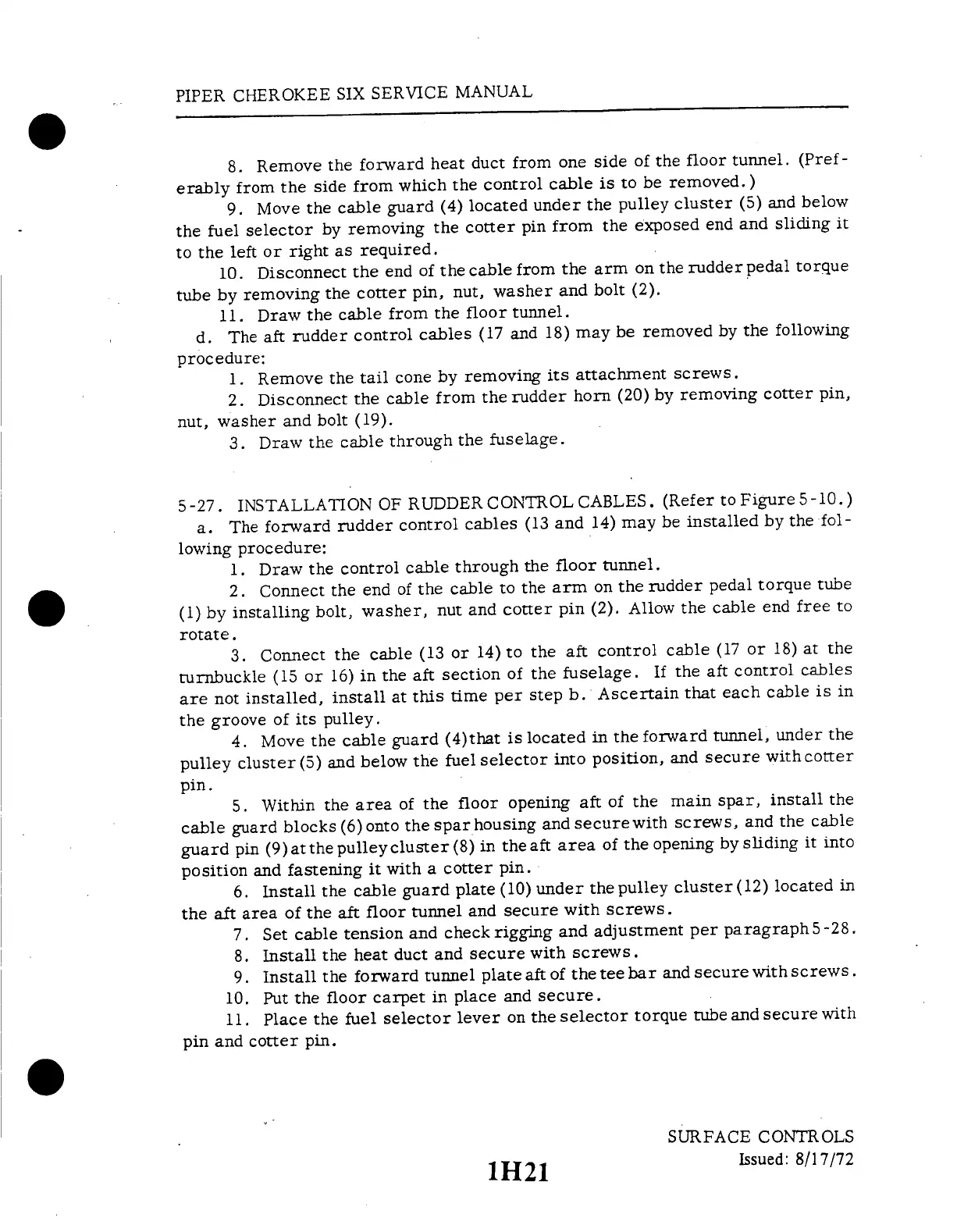

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
8.
Remove
the
forward
heat
duct
from
one
side
of
the
floor
tunnel.
(Pref-
erably
from
the
side
from
which
the
control
cable
is
to
be
removed.
)
9.
Move
the
cable
guard
(4)
located
under
the
pulley
cluster
(5)
and
below
the
fuel
selector
by
removing
the
cotter
pin
from
the
exposed
end
and
sliding
it
to
the
left
or
right
as
required.
10.
Disconnect
the
end
of
the
cable
from
the
arm
on
the
rudder
pedal
torque
tube
by
removing
the
cotter
pin,
nut,
washer
and
bolt
(2).
11.
Draw
the
cable
from
the
floor
tunnel.
d.
The
aft
rudder
control
cables
(17
and
18)
may
be
removed
by
the
following
procedure:
1.
Remove
the
tail
cone
by
removing
its
attachment
screws.
2.
Disconnect
the
cable
from
the
rudder
horn
(20)
by
removing
cotter
pin,
nut,
washer
and
bolt
(19).
3.
Draw
the
cable
through
the
fuselage.
5-27.
INSTALLATION
OF
RUDDER
CONTROL
CABLES.
(Refer
to
Figure
5-10.)
a.
The
forward
rudder
control
cables
(13
and
14)
may
be
installed
by
the
fol-
lowing
procedure:
1.
Draw
the
control
cable
through
the
floor
tunnel.
2.
Connect
the
end
of
the
cable
to
the
arm
on
the
rudder
pedal
torque
tube
(1)
by
installing
bolt,
washer,
nut
and
cotter
pin
(2).
Allow
the
cable
end
free
to
rotate.
3.
Connect
the
cable
(13
or
14)
to
the
aft
control
cable
(17
or
18)
at
the
turnbuckle
(15
or
16)
in
the
aft
section
of
the
fuselage.
If
the
aft
control
cables
are
not
installed,
install
at
this
time
per
step
b.
Ascertain
that
each
cable
is
in
the
groove
of
its
pulley.
4.
Move
the
cable
guard
(4)that
is
located
in
the
forward
tunnel,
under
the
pulley
cluster(5)
and
below
the
fuel
selector
into
position,
and
secure
with
cotter
pin.
5.
Within
the
area
of
the
floor
opening
aft
of
the
main
spar,
install
the
cable
guard
blocks
(6)onto
the
spar
housing
and
securewith
screws,
and
the
cable
guard
pin
(9)at
the
pulleycluster(8)
in
the
aft
area
of
the
opening
by
sliding
it
into
position
and
fastening
it
with
a
cotter
pin.
6.
Install
the
cable
guard
plate
(10)
under
the
pulley
cluster(12)
located
in
the
aft
area
of
the
aft
floor
tunnel
and
secure
with
screws.
7.
Set
cable
tension
and
check
rigging
and
adjustment
per
paragraph5-28.
8.
Install
the
heat
duct
and
secure
with
screws.
9.
Install
the
forward
tunnel
plate
aft
of
the
tee
bar
and
secure
with
screws.
10.
Put
the
floor
carpet
in
place
and
secure.
11.
Place
the
fuel
selector
lever
on
the
selector
torque
tube
and
secure
with
pin
and
cotter
pin.
SURFACE
CONTROLS
1H21
Issued:
8/17/72
