PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1657
19-
12
0
5.
1.
RUDDER
&
STEERING
PEDAL
ASSY.
2.
BOLT,
WASHER,
NUT
& COTTER
PIN
3.
BOLT,
BUSHINGS,
WASHER
&
NUT
4.
GUARD
PIN,
CABLE
5.
PULLEY
CLUSTER
6.
RUB BLOCKS
7.
BOLT,
BUSHINGS,
WASHER
&
NUT
8.
PULLEY
CLUSTER
9.
GUARD
PIN,
CABLE
10.
GUARD
PLATE,
CABLE
I
I.
BOLT,
BUSHINGS,
WASHER
&
NUT
12.
PULLEY
CLUSTER
13.
CABLE,
RIGHT
FORWARD
14.
CABLE,
LEFT
FORWARD
15.
TURNBUCKLE,
LEFT
16.
TURNBUCKLE,
RIGHT
17.
CABLE,
RIGHT
AFT
18.
CABLE,
LEFT
AFT
19.
BOLT,
BUSHING,
WASHER
& NUT
20.
HORN,
RUDDER

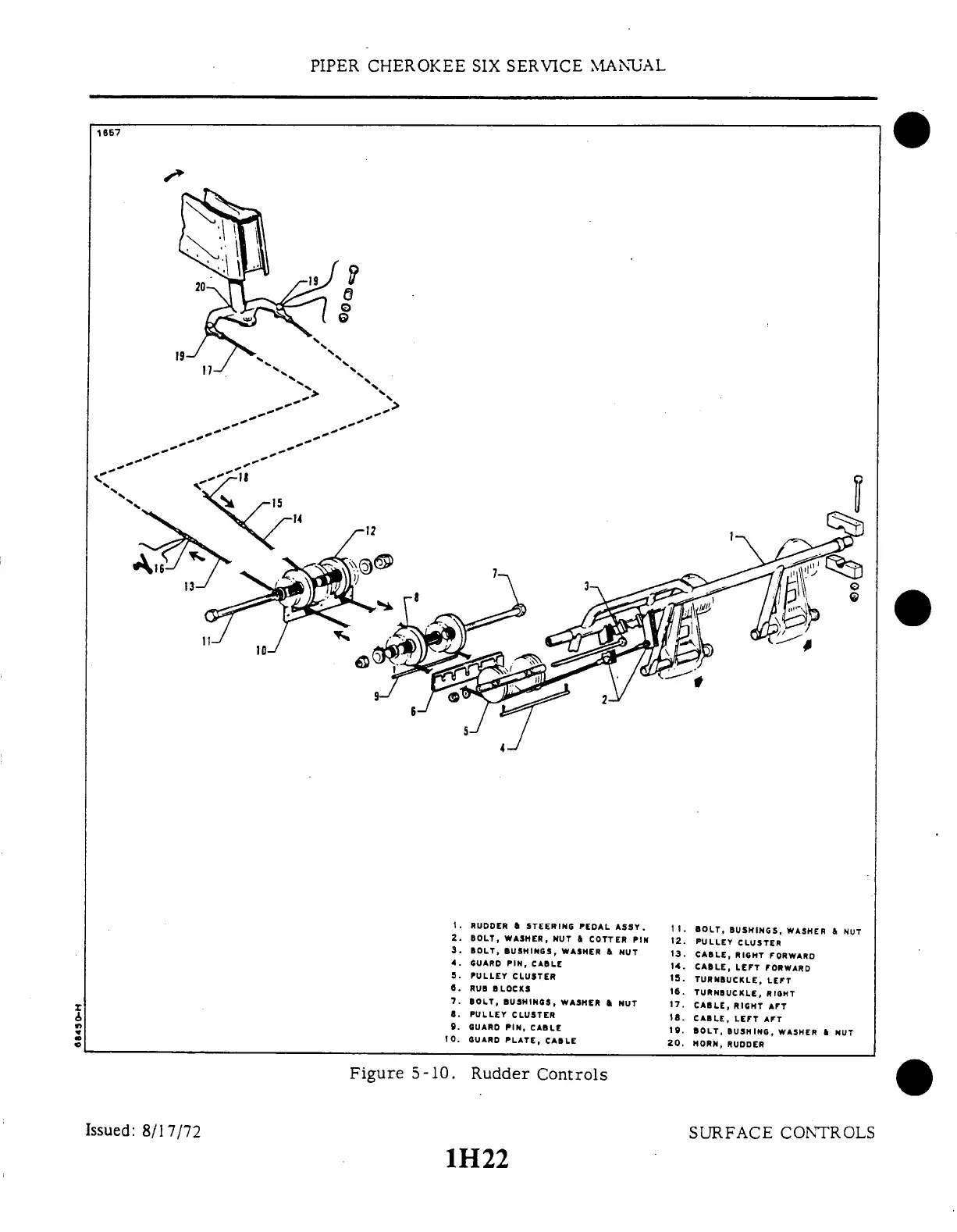

Figure
5-10.
Rudder
Controls
Issued:
8/17/72
SURFACE
CONTROLS
1H22
