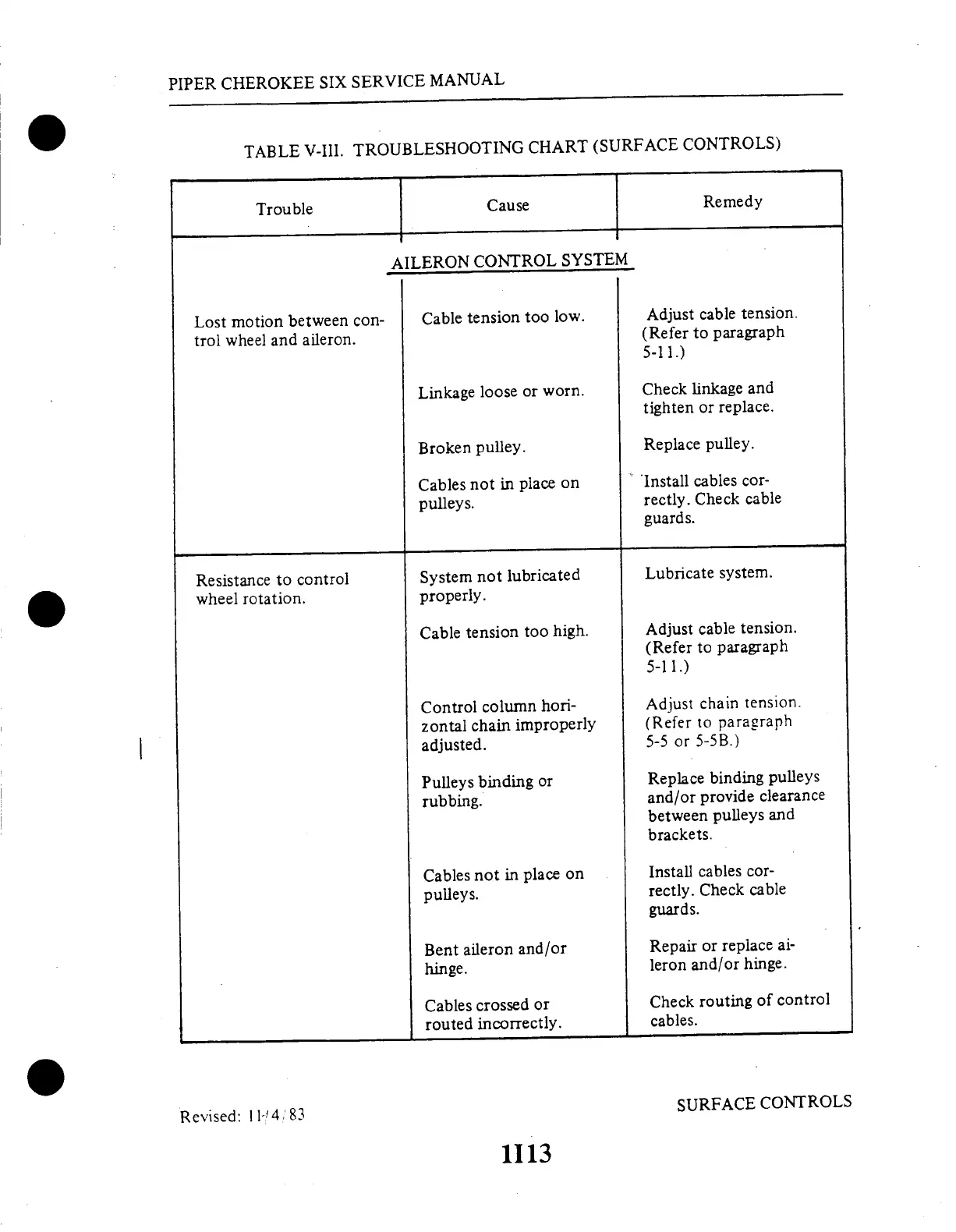

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
TABLE
V-III.
TROUBLESHOOTING
CHART
(SURFACE
CONTROLS)
Trouble
Cause
Remedy
AILERON
CONTROL
SYSTEM
Lost
motion
between
con-
trol
wheel
and
aileron.
Cable
tension
too
low.
Adjust
cable
tension.
(Refer
to
paragraph
5-11.)
Linkage
loose
or
worn.
Broken
pulley.
Cables
not
in
place
on
pulleys.
Check
linkage
and
tighten
or
replace.
Replace
pulley.
'Install
cables
cor-
rectly.
Check
cable
guards.
Resistance
to
control
wheel
rotation.
System
not
lubricated
properly.
Lubricate
system.
I
Cable
tension
too
high.
Control
column
hori-
zontal
chain
improperly
adjusted.
Pulleys
binding
or
rubbing.
Cables
not
in
place
on
pulleys.
Bent
aileron
and/or
hinge.
Cables
crossed
or
routed
incorrectly.
Adjust
cable
tension.
(Refer
to
paragraph
5-11.)
Adjust
chain
tension.
(Refer
to
paragraph
5-5
or
5-5B.)
Replace
binding
pulleys
and/or
provide
clearance
between
pulleys
and
brackets.
Install
cables
cor-
rectly.
Check
cable
guards.
Repair
or
replace
ai-
leron
and/or
hinge.
Check
routing
of
control
cables.
