Piper Cherokee Six - Page 217

FILTER
LOW
PRESSURE
CONTROL
650+ 1 50 psi
PIPER
CHEROKEE
SIX SERVICE
MANUAL
HIGH
PRESSURE
CONTROL
2000 to 2500 psi
SHUTTLE VALVE
DELIVERED PRESSURE
400 to 800 psi
PRESSURE
SWITCH
OFF
at 1800
100 psi
ON
at 200 to
400 psi
or
OFF at 1400
100
psi
ON at
200 to
400 psi
*APPLIES TO PUMP NO. 105476A ONLY.
**APPLIES TO PUMP
NO. HYC5005
ONLY.

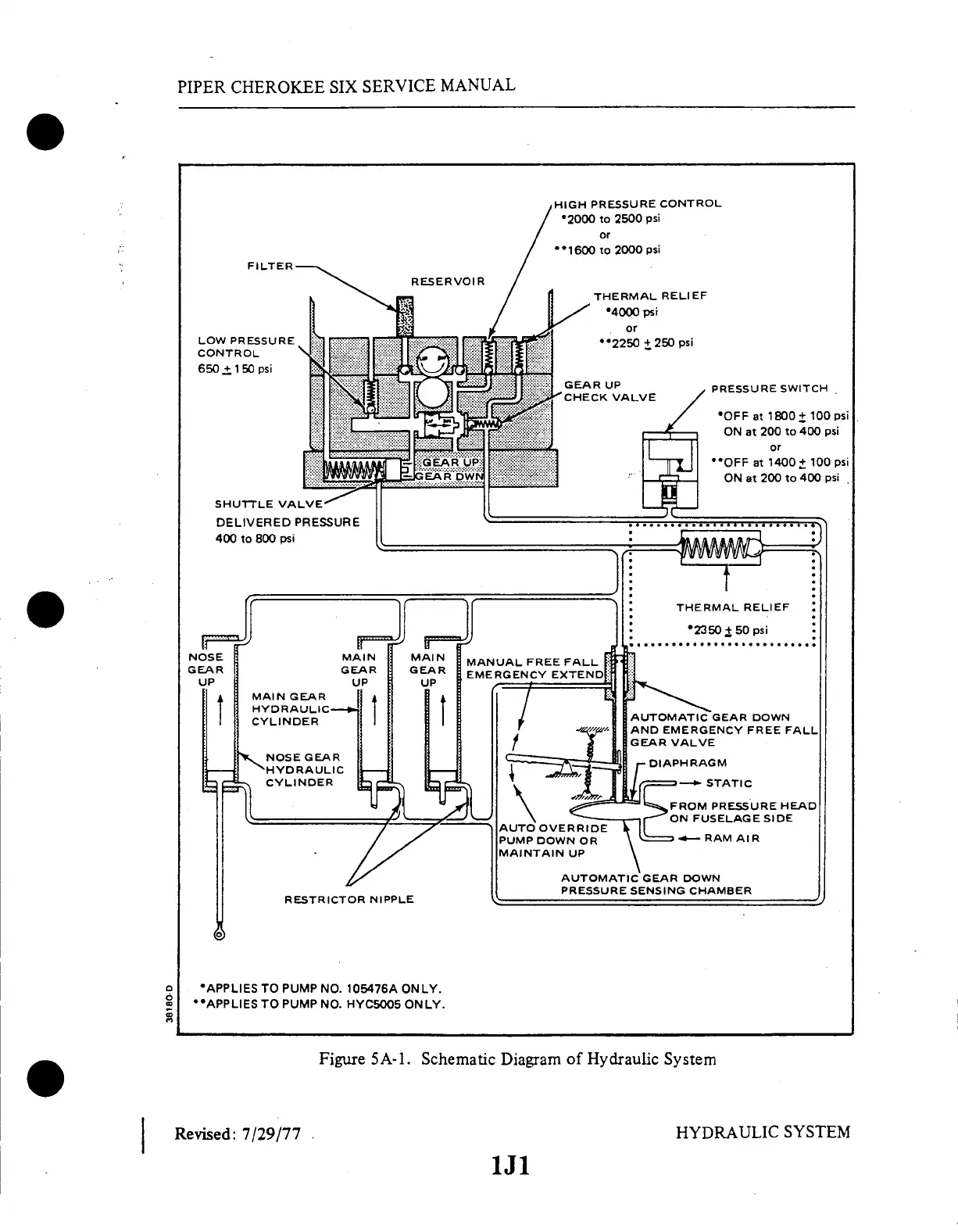

Figure
5A-1. Schematic Diagram
of Hydraulic System
Revised:
7/29/77
HYDRAULIC
SYSTEM
1J1
