PIPER CHEROKEE
SIX SERVICE
MANUAL
1612
NOTES
1. ADJUST
CONNECTOR
ON END
OF
CONTROL
CABLE
TO
OBTAIN
.65 IN.
MAX
DIMENSION
SHOWN
IN FIG.
5A-6 DETAIL
B.
2.
A SPECIAL
RESTRICTOR
NIPPLE
(2)
IS IN-
STALLED
ON THE
MAIN
GEAR
RETRAC-
TION
LINE. DO
NOT MISTAKE
THIS
FOR
A
STANDARD
AN
NIPPLE.
1. ACTUATING
CYLINDER,
RIGHT
2.
NIPPLE,
RESTRICTOR
(SEE NOTE)
3.
GEAR BACK-UP
EXTENDER
ACTUATOR
4. BACK-UP EXTENDER MAST
5.
ACTUATING
CYLINDER,
LEFT
6. LEVER
EMERGENCY
EXTENDER
7. ACTUATING
CYLINDER,
NOSE
8.
PRESSURE
SWITCH
9. PUMP/RESERVOIR

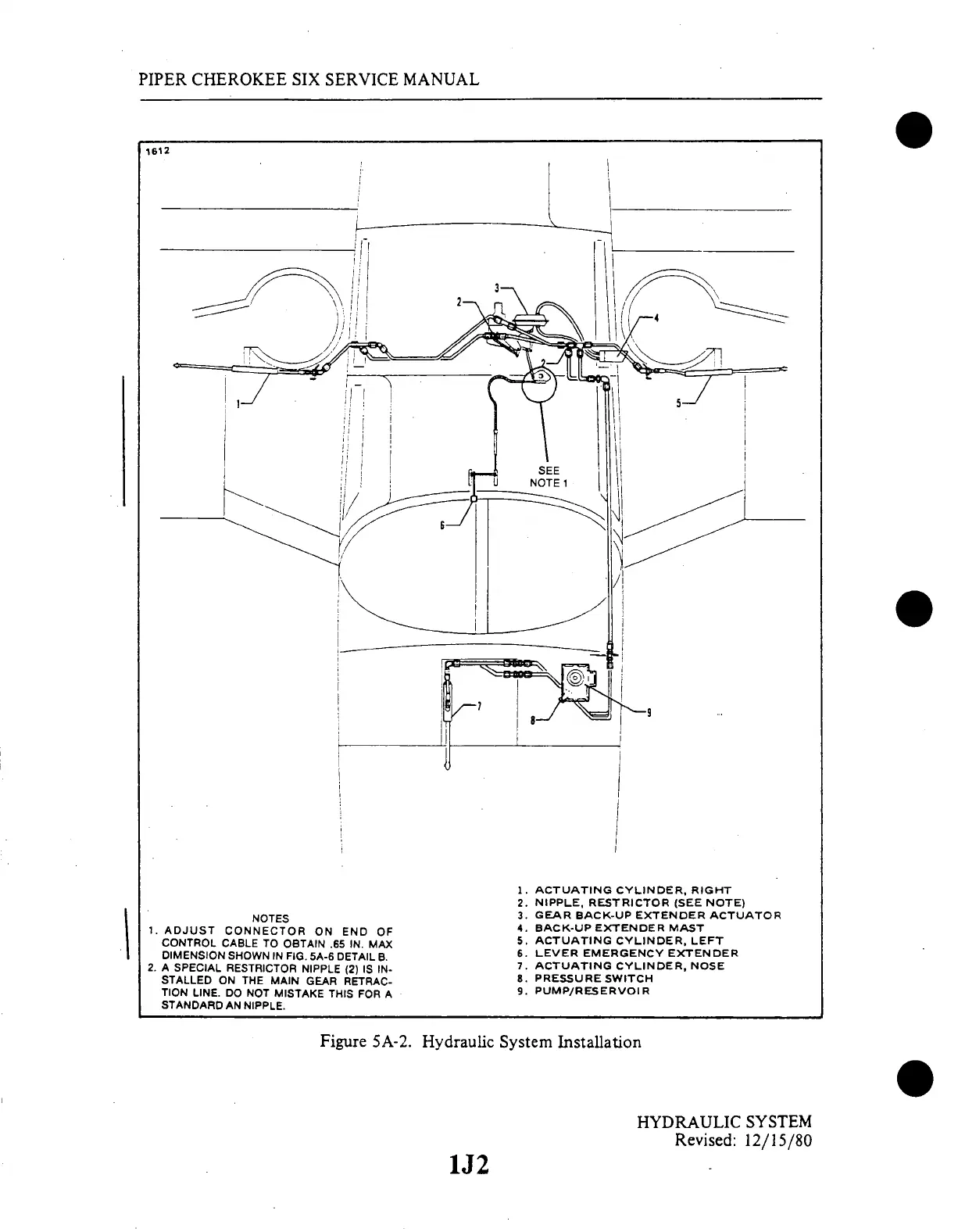

Figure 5A-2.
Hydraulic
System
Installation
HYDRAULIC
SYSTEM
Revised:
12/15/80
