Piper Cherokee Six - Page 224

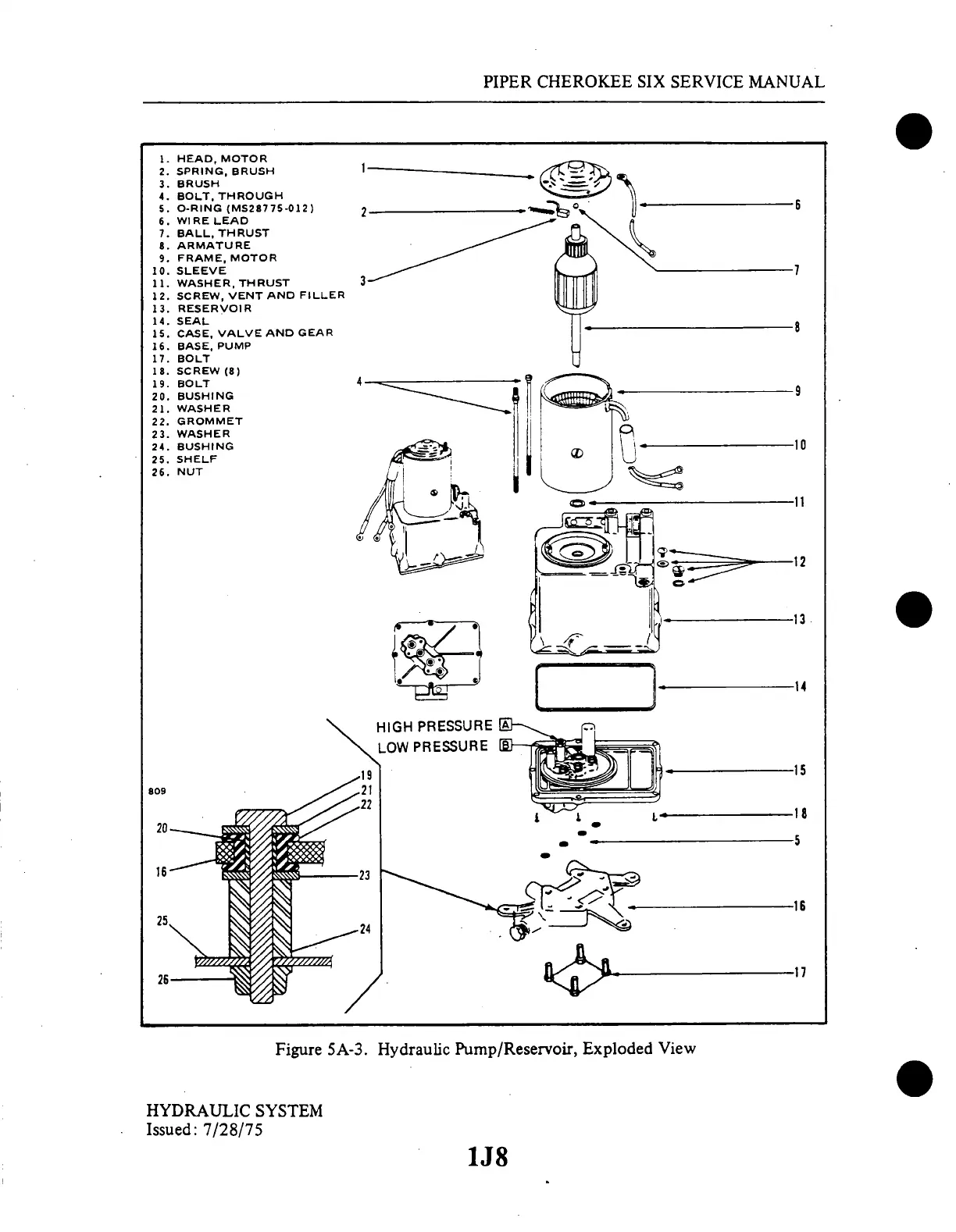

1. HEAD, MOTOR
2. SPRING,
BRUSH
3.
BRUSH
4. BOLT,
THROUGH
5. O-RING (MS28775-012)
6. WIRE LEAD
7. BALL,
THRUST
8. ARMATURE
9. FRAME, MOTOR
10. SLEEVE
11.
WASHER,
THRUST
12. SCREW,
VENT
AND FILLER
13. RESERVOIR
14. SEAL
15. CASE,
VALVE
AND
GEAR
16. BASE,
PUMP
17. BOLT
18. SCREW (8)
19. BOLT
20.
BUSHING
21.
WASHER
22. GROMMET
23. WASHER
24. BUSHING
25. SHELF
26.
NUT
4
HIGH
PRESSURE
LOW
PRESSURE
19
HYDRAULIC
SYSTEM
