Piper Cherokee Six - Page 225

HIGH PRESSURE PORT =1
PIPER
CHEROKEE
SIX SERVICE
MANUAL
GROUND-BLACK
HIGH PRESS.-BLUE
LOW PRESS.-GREEN
ESSURE
+14
V.D.C.
(ONE ONLY)
-14 V.D.C.

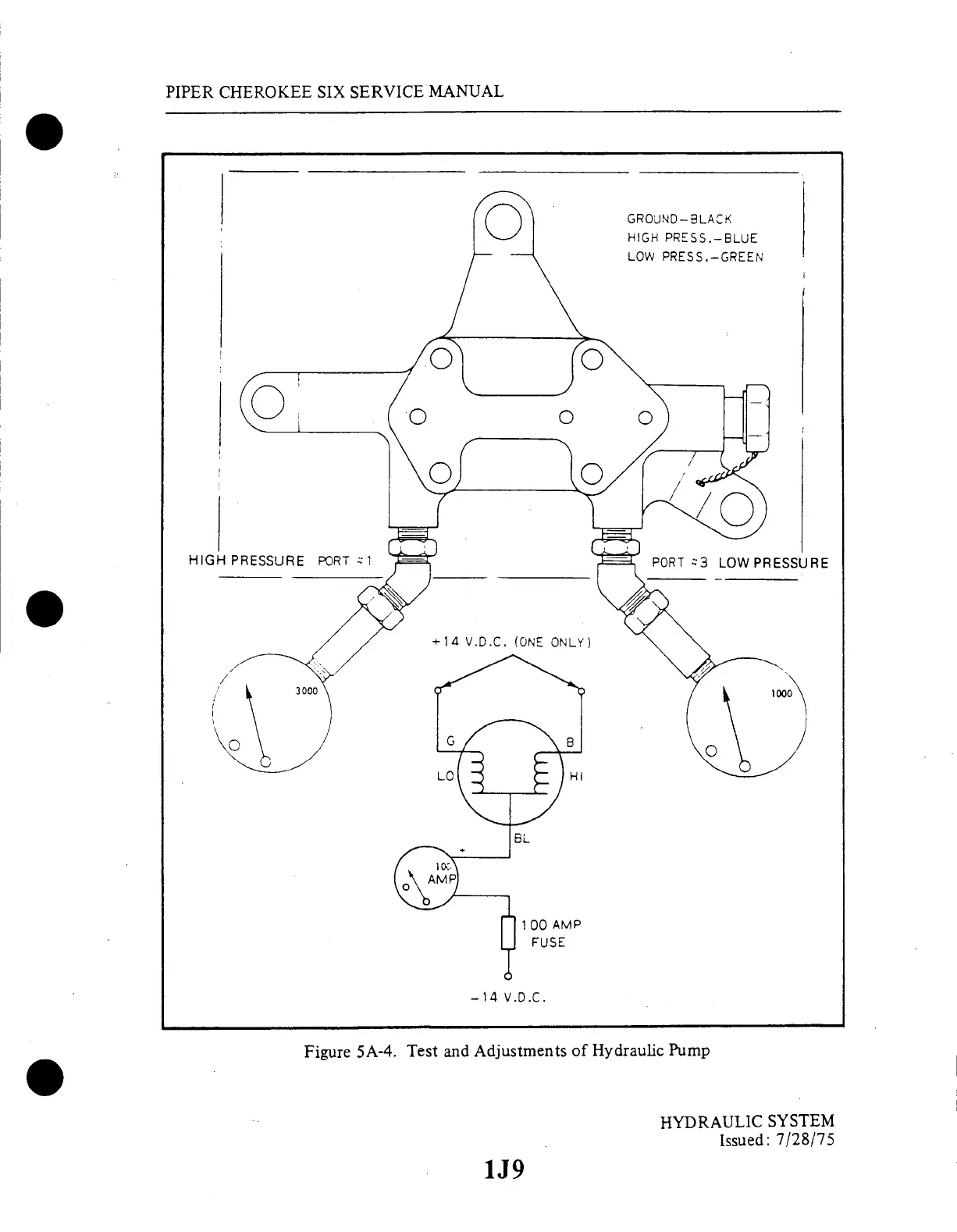

Figure
5A-4.
Test
and Adjustments
of Hydraulic
Pump
HYDRAULIC
SYSTEM
Issued:
7/28/75
1J9
