1. LANDING
GEAR
OVERRIDE
SUPPORT
BRACKET
2. ALIGNING TOOL
3.
DIAPHRAGM
SUPPORT
BRACKET
PIPER
CHEROKEE
SIX SERVICE
MANUAL
812

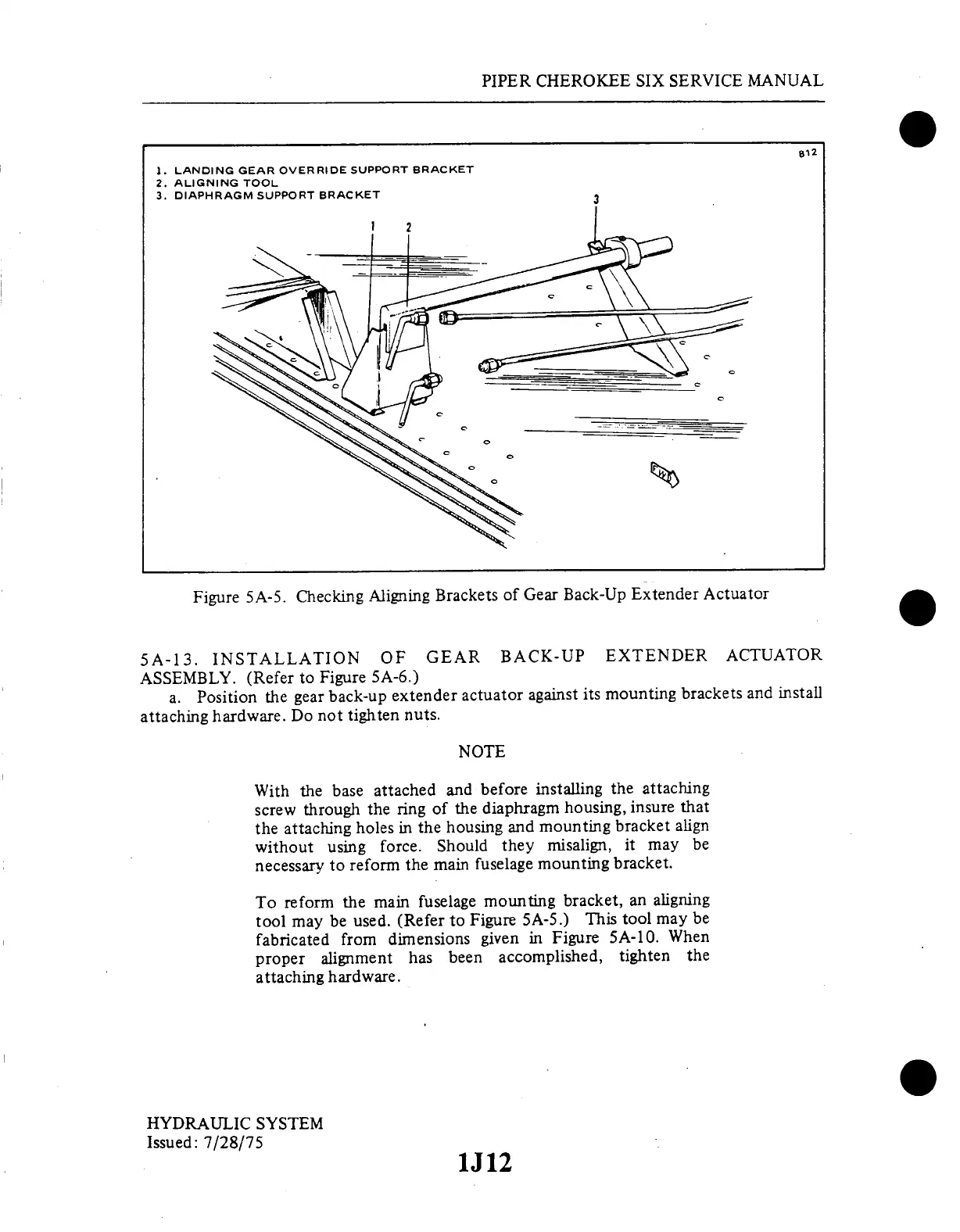

Figure
5A-5.
Checking
Aligning
Brackets
of Gear
Back-Up
Extender
Actuator
5A-13.
INSTALLATION
OF
GEAR
BACK-UP
EXTENDER
ACTUATOR
ASSEMBLY.
(Refer
to
Figure
5A-6.)
a.
Position
the
gear
back-up
extender
actuator
against
its
mounting
brackets
and
install
attaching
hardware.
Do
not
tighten
nuts.
NOTE
With
the
base
attached
and
before
installing
the
attaching
screw
through
the
ring
of
the
diaphragm
housing,
insure
that
the
attaching
holes
in
the
housing
and
mounting
bracket
align
without
using
force.
Should
they
misalign,
it
may
be
necessary
to
reform
the
main
fuselage
mounting
bracket.
To
reform
the
main
fuselage
mounting
bracket,
an
aligning
tool
may
be
used.
(Refer
to
Figure
5A-5.)
This
tool
may
be
fabricated
from
dimensions
given
in
Figure
5A-10.
When
proper
alignment
has
been
accomplished,
tighten
the
attaching
hardware.
