Piper Cherokee Six - Page 229

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1.
CLEVIS
PIN
2.
SCREW,
ADJUSTMENT
3.
BASE
4.
NIPPLE
5. TUBE
6.
BOLT
&
NUT
7.
HOUSING
ASSEMBLY,
STATIC
8. SEAL
9.
RING,
HOUSING
10.
HOUSING
ASSEMBLY,
PRESSURE
11.
HOSE,
STATIC
12.
ELBOW
13.
HOSE
PRESSURE
14.
NUT
15.
BUSHING,
TEFLON
16.
SHAFT,
DIAPHRAGM
17.
CLEVIS
PIN
18.
LINK
19,
ARM,
ACTUATING
20.
SCREW
21.
SWITCH,
PUMP
22.
SCREW&
NUT
23.
ACTUATOR,
SWITCH
24.
SPRINGS
25.
VALVE,
HYDRAULIC
26.
TUBE
27.
ELBOW
28.
JAM
NUT
29. ANCHOR
30.
PUSH
ROD
31.
SPACER
32.
ADJUSTMENT
NUT
33.
WASHER
34.
CAM
35.
ECCENTRIC
BOLT
36. NUT
37.
VALVE,
THERMAL
RELIEF
38.
CROSS
39.
TUBE
40.
TUBE
41.
TUBE
42.
NIPPLE
43.
NIPPLE
44.
ELBOW
45.
TEE
46.
TEE
47.
NIPPLE
48.
ELBOW
49.
UNION

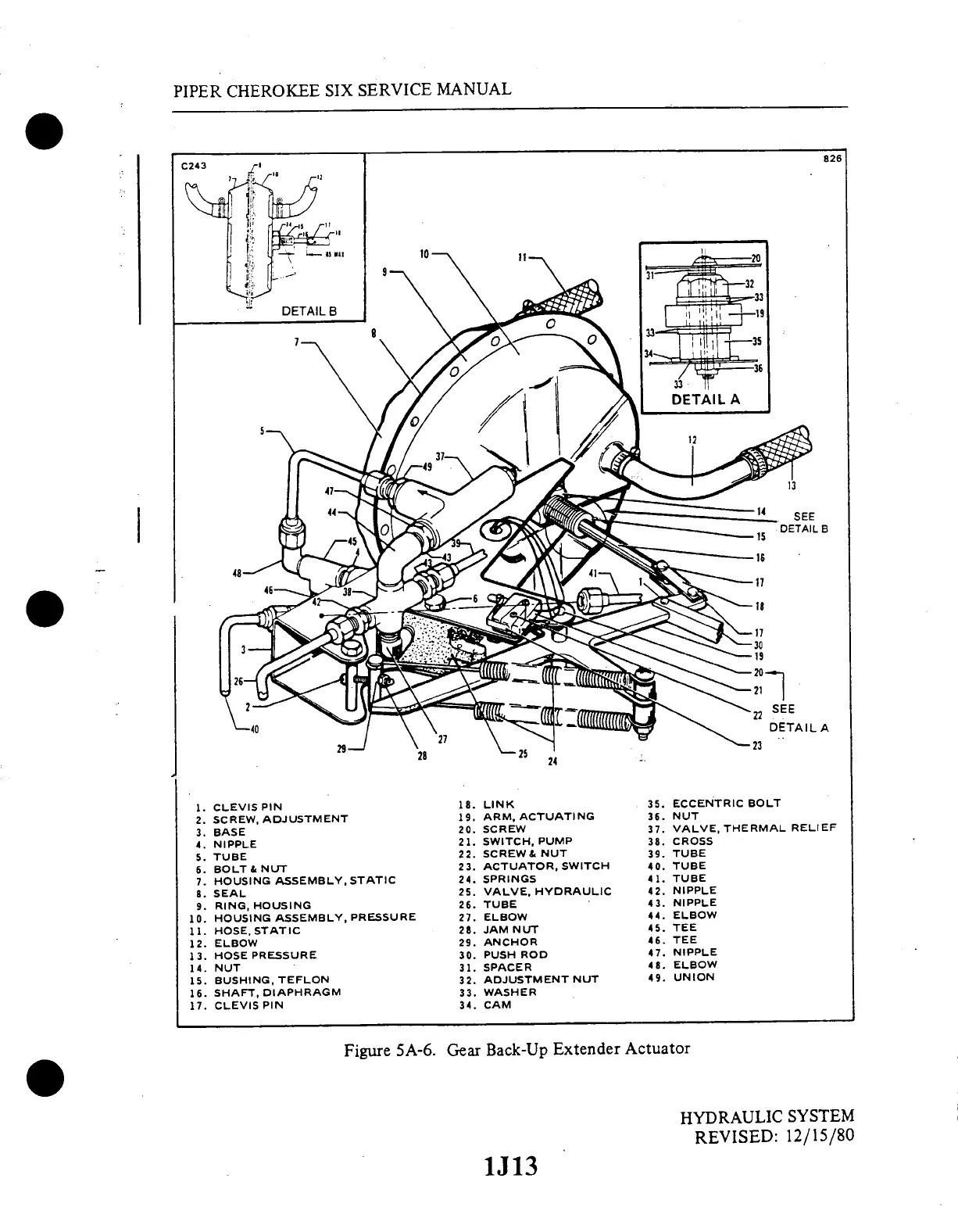

Figure
5A-6.
Gear
Back-Up
Extender
Actuator
HYDRAULIC
SYSTEM
REVISED:
12/15/80
1J13
