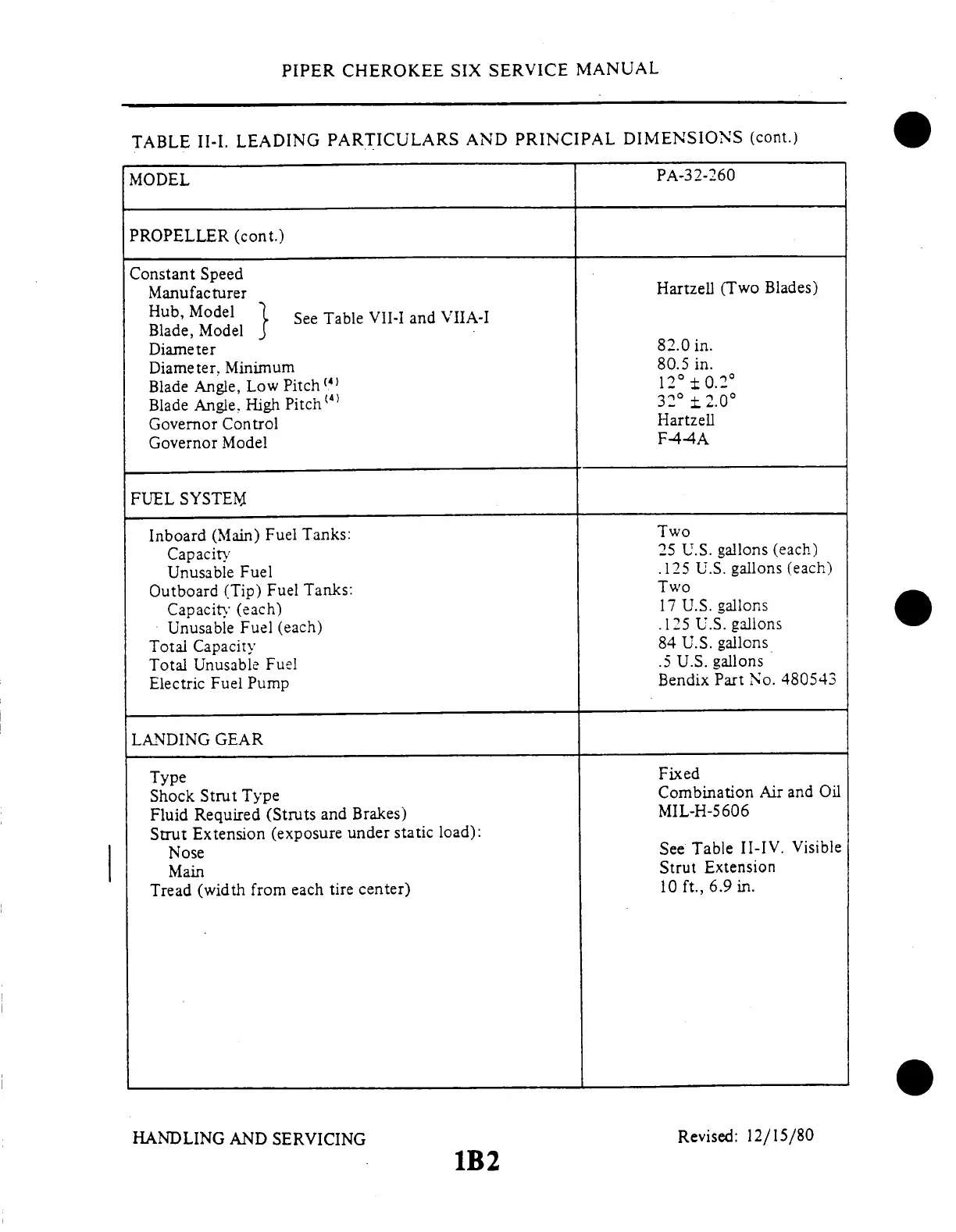

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
TABLE
II-I.
LEADING
PARTICULARS
AND
PRINCIPAL
DIMENSIONS
(cont.)
MODEL
PA-32-260
PROPELLER
(cont.)
Constant
Speed
Manufacturer
Hub,
Model
See Table
VII-I
and VIIA-I
Blade, Model
Diameter
Diameter.
Minimum
Blade
Angle,
Low
Pitch
Blade
Angle,
High
Pitch(4)
Governor
Control
Governor
Model
Hartzell
(Two
Blades)
82.0
in.
80.5
in.
12
°
± 0.2
°
32
°
2.0
°
Hartzell
F-4-4A
FUEL
SYSTEM
Inboard
(Main)
Fuel
Tanks:
Capacity
Unusable
Fuel
Outboard
(Tip)
Fuel Tanks:
Capacity
(each)
Unusable
Fuel
(each)
Total
Capacity
Total
Unusable
Fuel
Electric
Fuel
Pump
Two
25 U.S.
gallons
(each)
.125 U.S.
gallons
(each)
Two
17
U.S. gallons
.125
U.S.
gallons
84 U.S.
gallons
.5 U.S.
gallons
Bendix
Part
No. 480543
LANDING
GEAR
Type
Shock
Strut
Type
Fluid
Required
(Struts
and
Brakes)
Strut
Extension
(exposure
under
static
load):
Nose
Main
Tread
(width
from
each
tire
center)
HANDLING AND SERVICING
1B2
Fixed
Combination
Air and
Oil
MIL-H-5606
See
Table
II-IV.
Visible
Strut
Extension
10
ft.,
6.9
in.
Revised:
12/15/80
