*PIPER
CHEROKEE
SIX
SERVICE
MANUAL

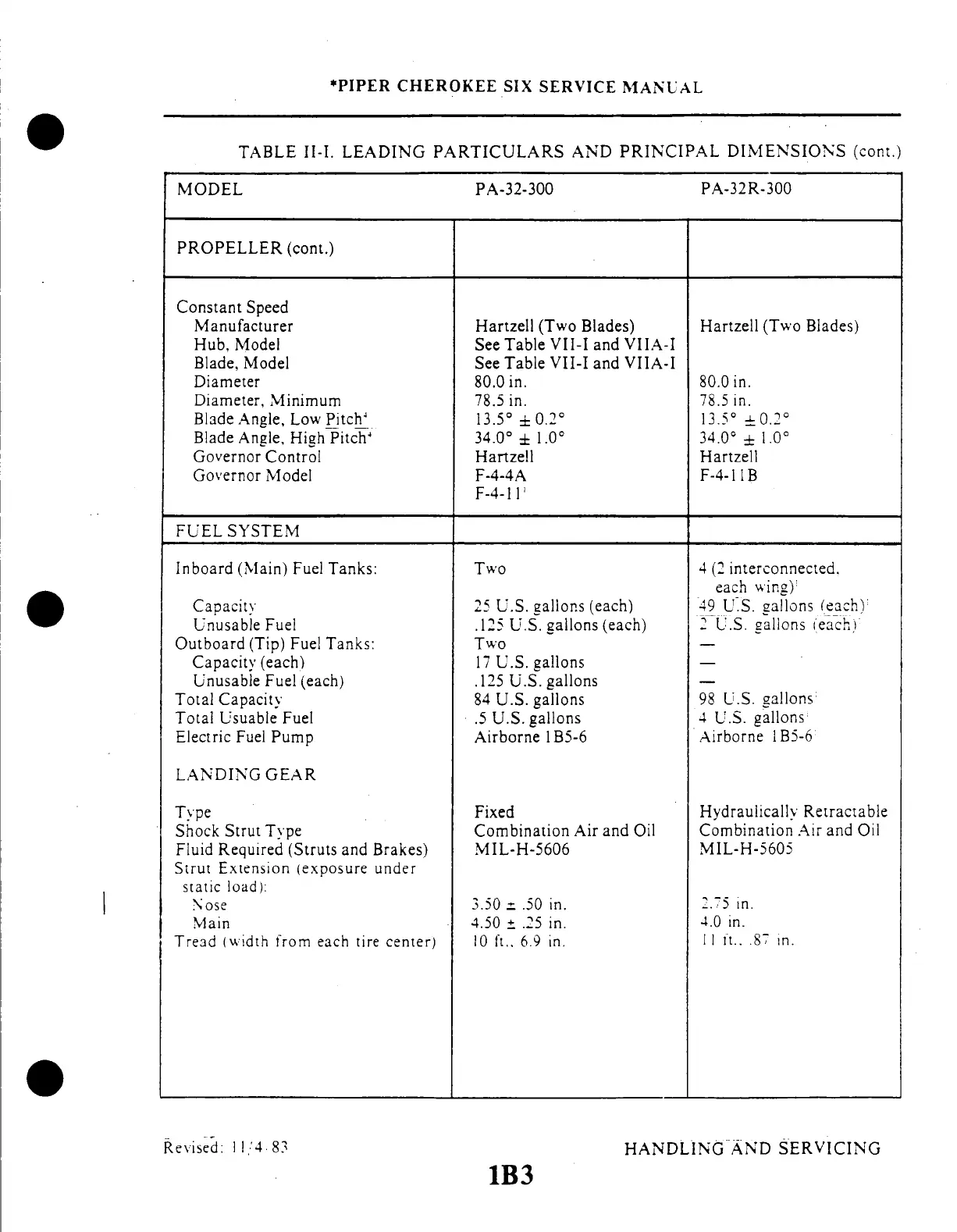

TABLE
11-I. LEADING
PARTICULARS
AND PRINCIPAL
DIMENSIONS
(cont.)
MODEL
PA-32-300
PA-32R-300
PROPELLER (cont.)
Constant Speed
Manufacturer
Hub. Model
Blade, Model
Diameter
Diameter, Minimum
Blade Angle, Low Pitch
Blade Angle, High Pitch'
Governor Control
Governor Model
Hartzell
(Two Blades)
See Table VII-I and VIIA-I
See
Table VII-I
and VIIA-I
80.0 in.
78.5 in.
13.5
°
0.
2
34.0
°
1.00
Hartzell
F-4-4A
F-4-11
Hartzell
(Two Blades)
80.0 in.
78.5 in.
13.5
°
± 0.2
34.0
°
± 1.0
°
Hartzell
F-4-1 IB
FUEL SYSTEM
Inboard
(Main)
Fuel Tanks:
Capacity
Unusable Fuel
Outboard (Tip) Fuel Tanks:
Capacity
(each)
Unusable Fuel (each)
Total
Capacity
Total Usuable Fuel
Electric Fuel Pump
Two
25
U.S. gallons
(each)
.125 U.S.
gallons
(each)
Two
17
U.S.
gallons
.125
U.S.
gallons
84
U.S.
gallons
.5
U.S.
gallons
Airborne 1 B5-6
4 (2 interconnected.
each
wing)'
49 U.S. gallons (each)
2 U.S.
gallons
(each)
98 U.S.
gallons
4 U.S.
gallons
Airborne
I B5-6
LANDING GEAR
Type
Shock
Strut
Type
Fluid Required
(Struts and
Brakes)
Strut
Extension (exposure
under
static
load):
Nose
Main
Tread
(width from
each tire center)
Fixed
Combination
MIL-H-5606
Air and Oil
Hydraulically
Retractable
Combination Air and Oil
MIL-H-5605
3.50 .50 in.
4.50 .25 in.
10 ft.. 6.9 in.
2.75
in.
4.0 in.
11 ft.. .87 in.
Revised:
11/4/83
HANDLING AND SERVICING
1B3
