PIPER
CHEROKEE
SIX
SERVICE
MANUAL

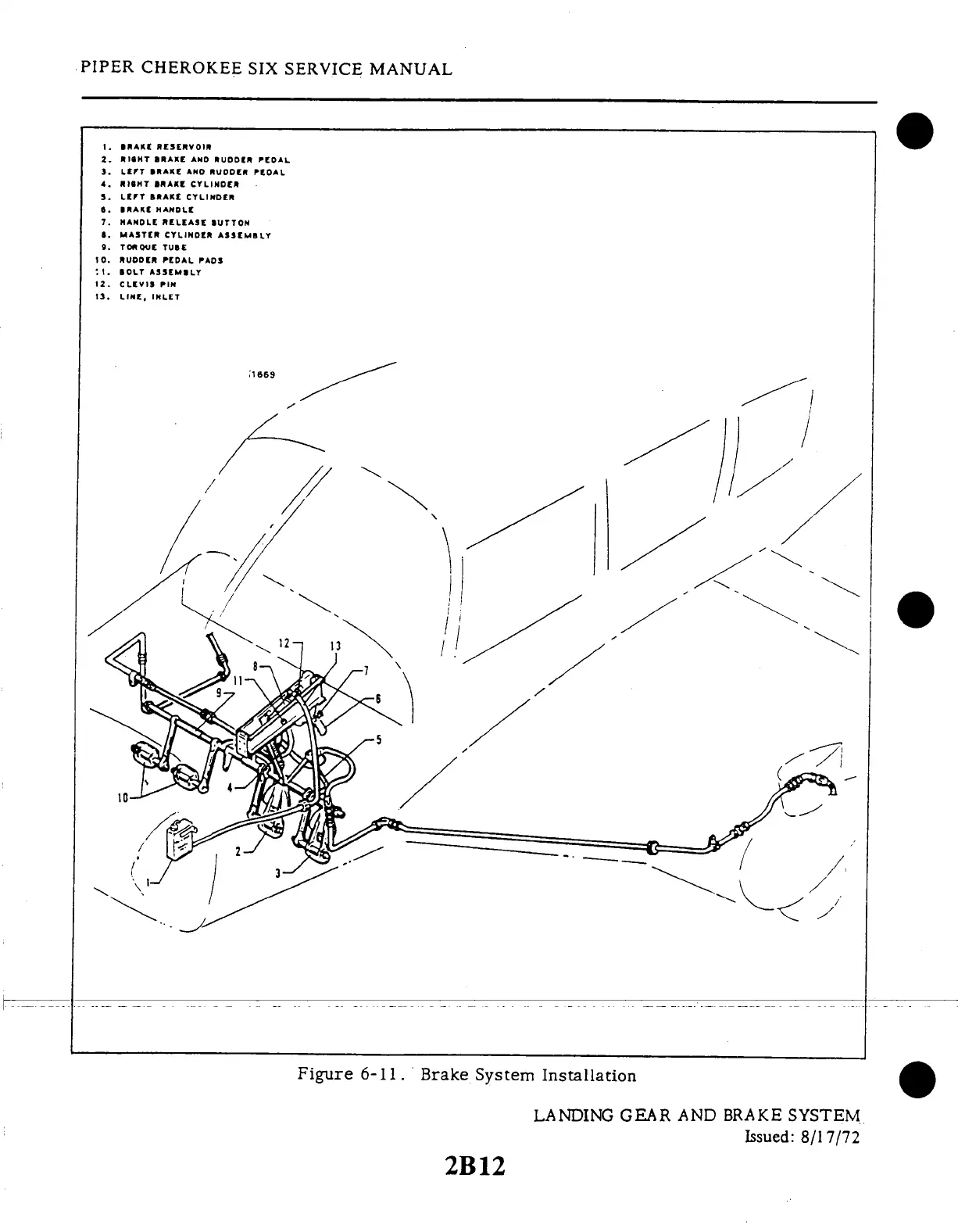

1. BRAKE RESERVOIR
2. RIGHT BRAKE AND RUDDER PEDAL
3.
LEFT
BRAKE
AND RUDDER
PEDAL
4. RIGHT BRAKE CYLINDER
5. LEFT BRAKE CYLINDER
6. BRAKE
HANDLE
7.
HANDLE RELEASE
BUTTON
S. MASTER
CYLINDER
ASSEMBLY
9. TOROUE
TUBE
10.
RUDDER
PEDAL
PADS
:1.
BOLT ASSEMBLY
12. CLEVIS PIN
13. LINE,
INLET
1669
LANDING
GEAR
AND
BRAKE
SYSTEM
Issued:
8/17/72
2B12
