1.
HYDRAULIC
CLINDER
2. SNAP
RING
3.
BUSHING
4. SPRING
5.
PISTON
6.
"O"
RING
7.
DYNA-SEAL
WASHER
8.
"0"
RING
9.
PACKING
GLAND
10. "0"
RING
11
.
PISTON
ROD
12
. SPRING
13.
DELETED
14. WASHER
15. ROLL PIN
6-42.
CLEANING,
INSPECTION
AND
REPAIR
OF
BRAKE
CYLINDER.
a.
Clean
the
cylinder
parts
with
a
suitable
solvent
and
dry
thoroughly.
b.
Inspect
the
interior
walls
of
the
cylinder
for
scratches,
burrs,
corrosion,
etc.
c.
Inspect
the
general
condition
of
the
fitting
threads
of
the
cylinder.
d.
Check
the
piston
and
valve
for
scratches,
burrs,
corrosion,
etc.
e.
Repairs
to
the
cylinder
are
limited
to
polishing
out
small
scratches,
burrs,
etc.
and
replacing
valve,
washer,
seal,
and
O-rings.
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1. HYDRAULIC
CYLINDER
2.
SPRING
3. PISTON
4. "0"
RING
5.
SEAL
WASHER
6.
"O"
RING
7. PACKING
GLAND
8.
"O"
RING
9. WIPER
WASHER
10.
RETAINING
RING
II.
SPRING
12.
ROLL
PIN
13.
PISTON
ROD
14. WASHER
15.
ROLL
PIN

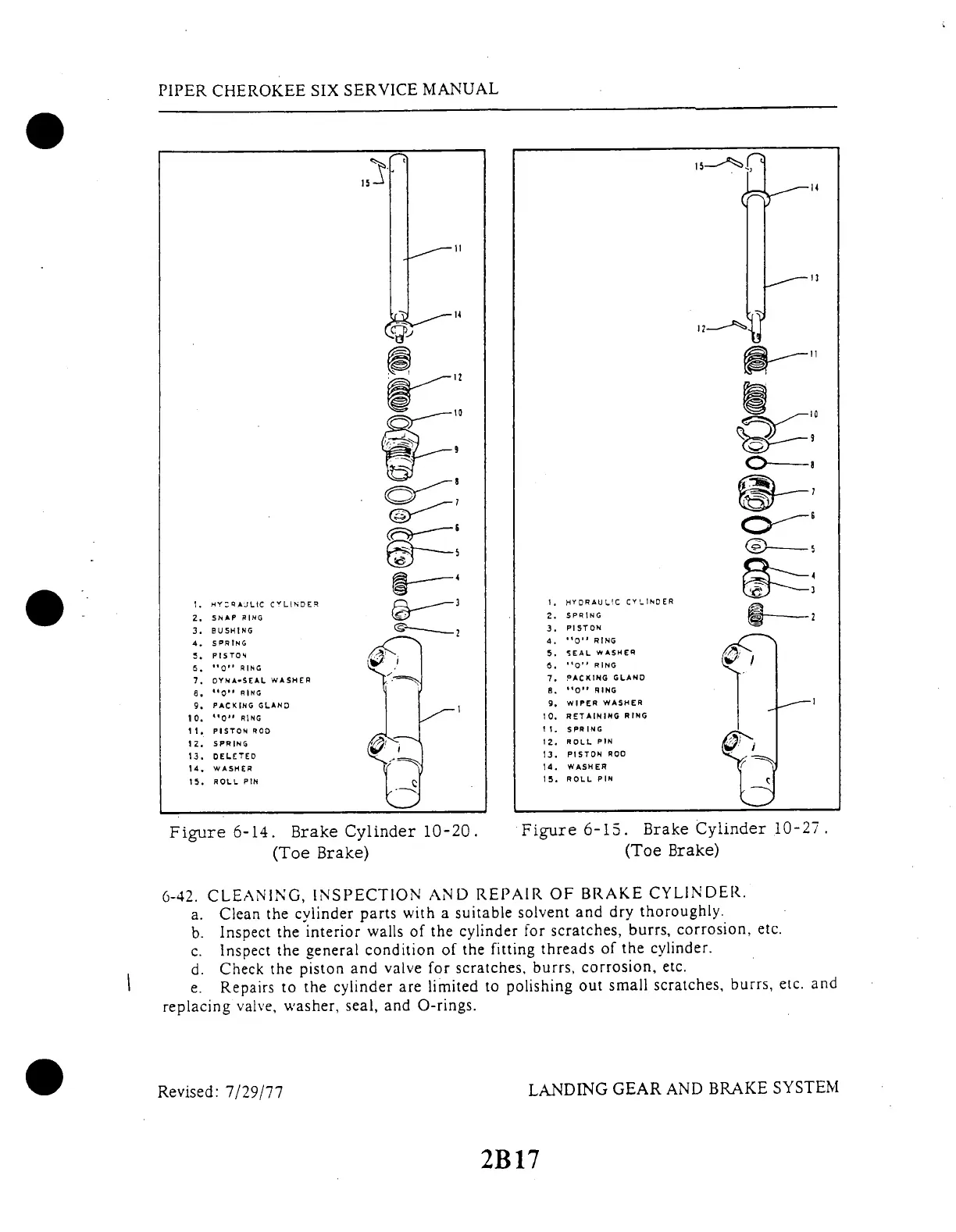

Figure
6-14.
Brake
Cylinder
10-20.
(Toe
Brake)
Figure
6-15.
Brake
Cylinder
10-27.
(Toe
Brake)
