1. HOUSING
5.
O-RING
9.
O-RING
13.
SPRING
2.
RETAINING
RING
6.
PISTON
10. O-RING
14.
WASHER
3.
SLEEVE
7. O-RING
11.
WASHER
WIPER
15.
ROLL
PIN
4.
SPRING
8. GLAND
12. ROD

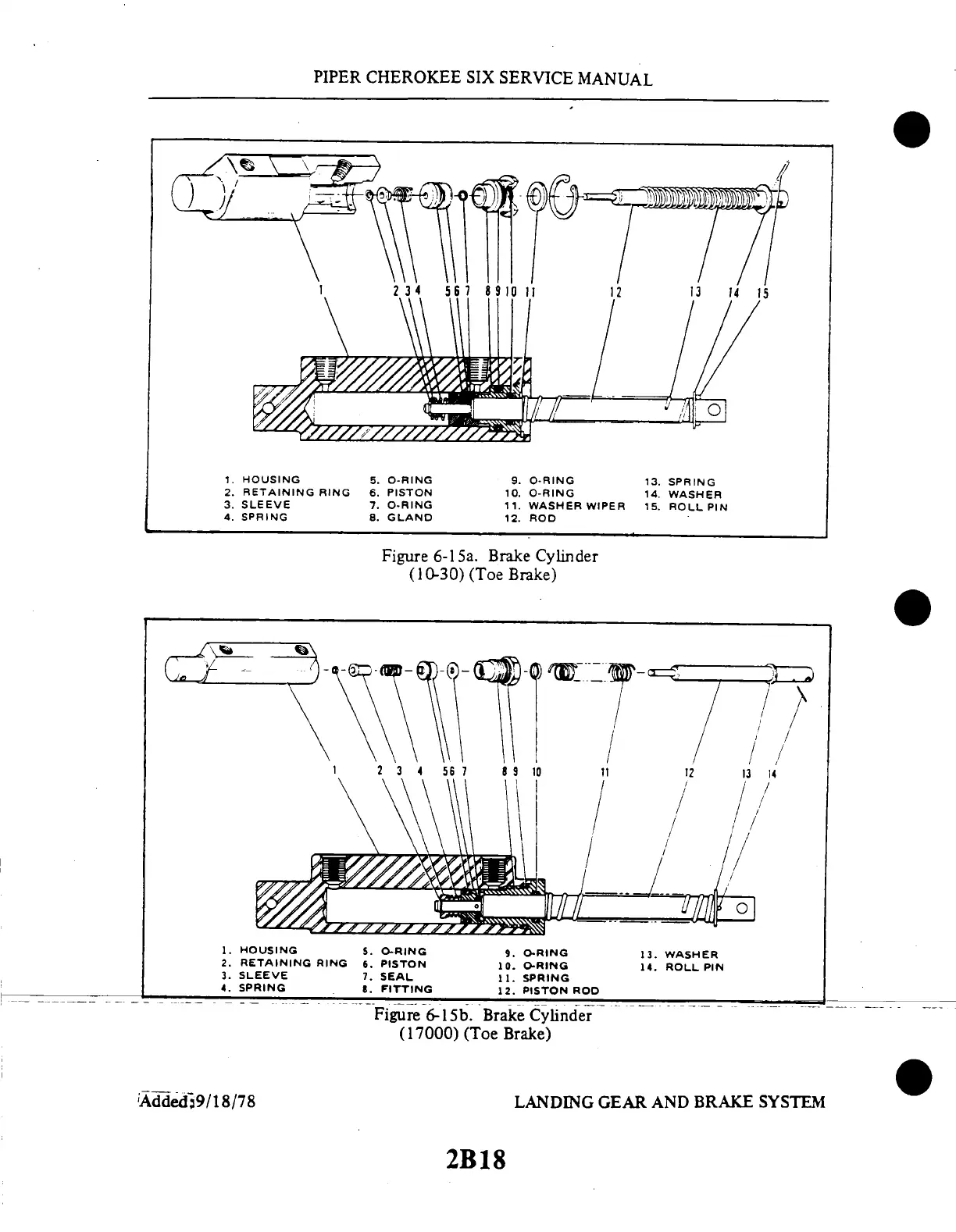

Figure
6-15a. Brake
Cylinder
(10-30)
(Toe
Brake)
1
2 3
4
56
7
8 9
10
11
12
13
14
/
/ /
1.
HOUSING
S.
O-RING
9. O-RING
13.
WASHER
2.
RETAINING
RING
6.
PISTON
10.
O-RING
14.
ROLL
PIN
3.
SLEEVE
7.
SEAL
11.
SPRING
4.
SPRING
8.
FITTING
12.
PISTON
ROD
Figure
6-15b.
Brake
Cylinder
(17000)
(Toe
Brake)
Added:9/18/78
LANDING
GEAR
AND BRAKE
SYSTEM
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
2B18
