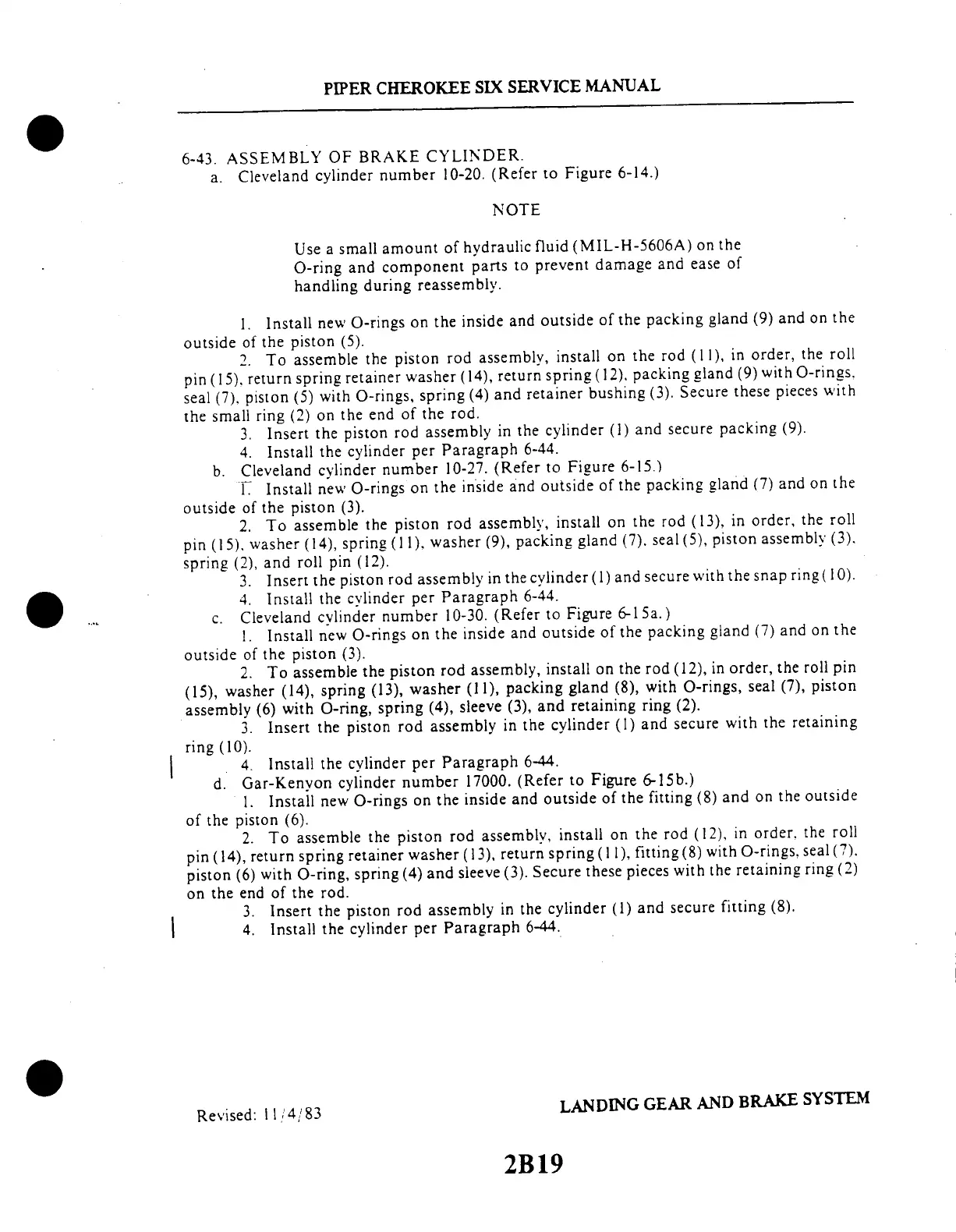

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
6-43.
ASSEMBLY
OF
BRAKE
CYLINDER.
a.
Cleveland
cylinder
number
10-20.
(Refer
to
Figure
6-14.)
NOTE
Use
a small
amount
of
hydraulic
fluid
(MIL-H-5606A)
on
the
O-ring
and
component
parts
to
prevent
damage
and
ease
of
handling
during
reassembly.
1.
Install
new
O-rings
on
the
inside
and
outside
of
the
packing
gland
(9)
and
on
the
outside
of
the
piston
(5).
2.
To
assemble
the
piston
rod
assembly,
install
on
the
rod
(II),
in
order,
the
roll
pin
(15),
return
spring
retainer
washer
(14),
return
spring
(12),
packing
gland
(9)
with
O-rings.
seal
(7).
piston
(5)
with
O-rings,
spring
(4)
and
retainer
bushing
(3).
Secure
these
pieces
with
the
small
ring
(2)
on
the
end
of
the
rod.
3.
Insert
the
piston
rod
assembly
in
the
cylinder
(1)
and
secure
packing
(9).
4.
Install
the
cylinder
per
Paragraph
6-44.
b.
Cleveland
cylinder
number
10-27.
(Refer
to
Figure
6-15.)
1.
Install
new
O-rings
on
the
inside
and
outside
of
the
packing
gland
(7)
and
on
the
outside
of
the
piston
(3).
2.
To
assemble
the
piston
rod
assembly,
install
on
the
rod
(13),
in
order,
the
roll
pin
(15),
washer
(14),
spring
(11).
washer
(9),
packing
gland
(7).
seal
(5),
piston
assembly
(3).
spring
(2),
and
roll
pin
(12).
3.
Insert
the
piston
rod
assembly
in
the
cylinder
()
and
secure
with
the
snap
ring
(10).
4.
Install
the
cylinder
per
Paragraph
6-44.
c.
Cleveland
cylinder
number
10-30.
(Refer
to
Figure
6-15a.)
1.
Install
new
O-rings
on
the
inside
and
outside
of
the
packing
gland
(7)
and
on
the
outside
of
the
piston
(3).
2.
To
assemble
the
piston
rod
assembly,
install
on
the
rod
(12),
in
order,
the
roll
pin
(15),
washer
(14),
spring
(13),
washer
(11),
packing
gland
(8),
with
O-rings,
seal
(7),
piston
assembly
(6)
with
O-ring,
spring
(4),
sleeve
(3),
and
retaining
ring
(2).
3.
Insert
the
piston
rod
assembly
in
the
cylinder
(1)
and
secure
with
the
retaining
ring
(10).
4.
Install
the
cylinder
per
Paragraph
6-44.
d.
Gar-Kenvon
cylinder
number
17000.
(Refer
to
Figure
6-15b.)
1.
Install
new
O-rings
on
the
inside
and
outside
of
the
fitting
(8)
and
on
the
outside
of
the
piston
(6).
2.
To
assemble
the
piston
rod
assembly,
install
on
the
rod
(12),
in
order.
the
roll
pin
(14),
return
spring
retainer
washer
(13),
return
spring
( 11),
fitting
(8)
with
O-rings.
seal
(7).
piston
(6)
with
O-ring,
spring
(4)
and
sleeve
(3).
Secure
these
pieces
with
the
retaining
ring
(2)
on
the
end
of
the
rod.
3.
Insert
the
piston
rod
assembly
in
the
cylinder
(1)
and
secure
fitting
(8).
4.
Install
the
cylinder
per
Paragraph
6-44.
Revised:
11/4/83
LANDING
GEAR
AND
BRAKE
SYSTEM
2B19
