WASHER ON A/C SERIAL NOS. 32-570 AND U
P
A9 54
1649
1. SPINNER
2. PROPELLER.
FIXED PITCH
3. AIR FILTER
4.
AIR
BOX.
CARBURETOR
5. TUBE,
CARBURETOR
6. HOUSING,
NOSE GEAR
STRUT
7.
FITTING,
OIL DRAIN
8. ENGINE
9. OIL
COOLER
10. TUBE.
ENGINE VENT
11. MOUNT, ENGINE
12. COOLING
SHROUD,
FUEL PUMP
PIPER CHEROKEE
SIX SERVICE
MANUAL
NOTE:
A maximum
of
(3)
AN960-616
washers
can be
used
to permit
a maximum
of
2.5
threads
exposed
on
the
bolt.
Torque
to
230/240
inch-pounds.
A951

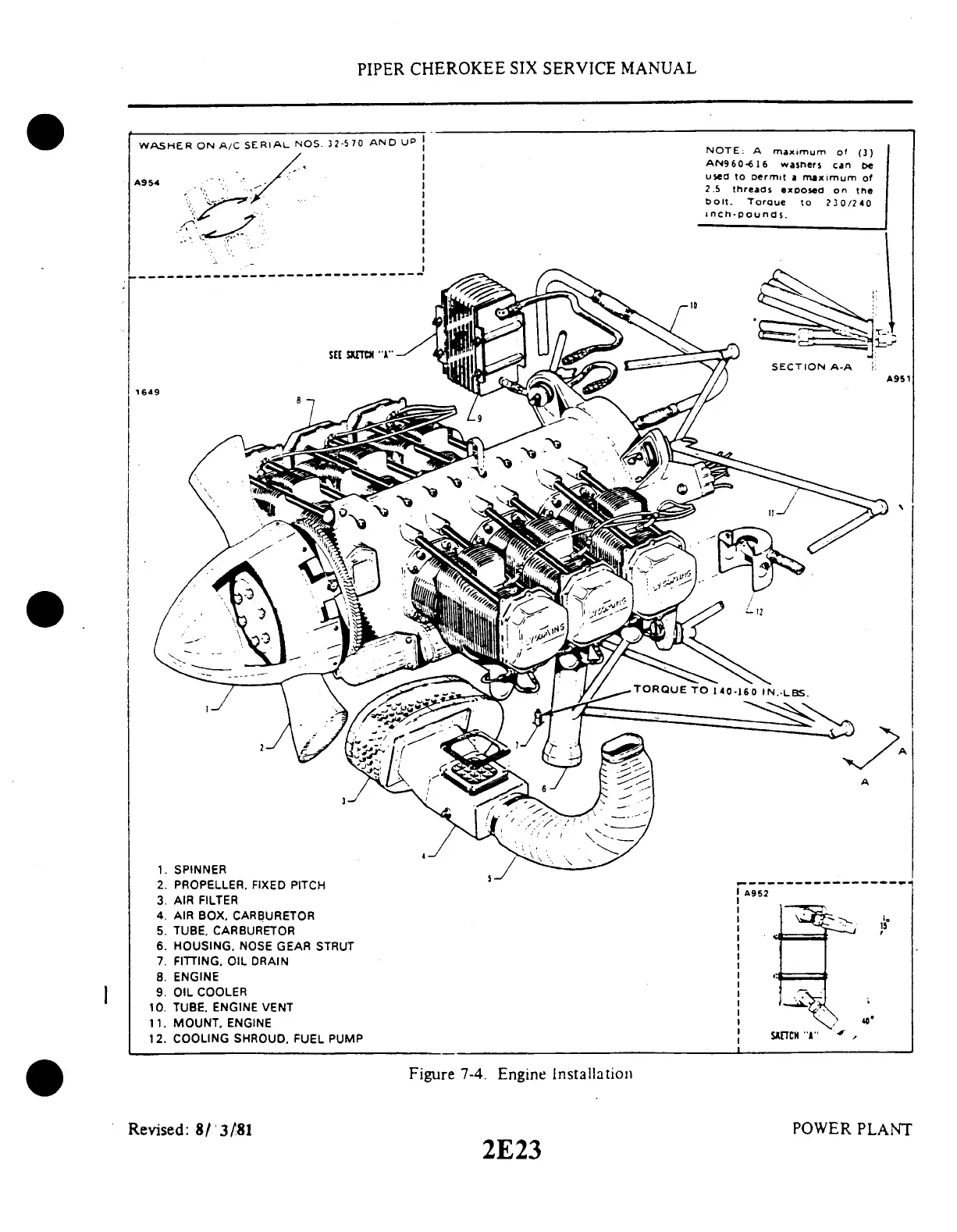

Figure
7-4. Engine
Installation
Revised:
8/3/81
POWER
PLANT
2E23
