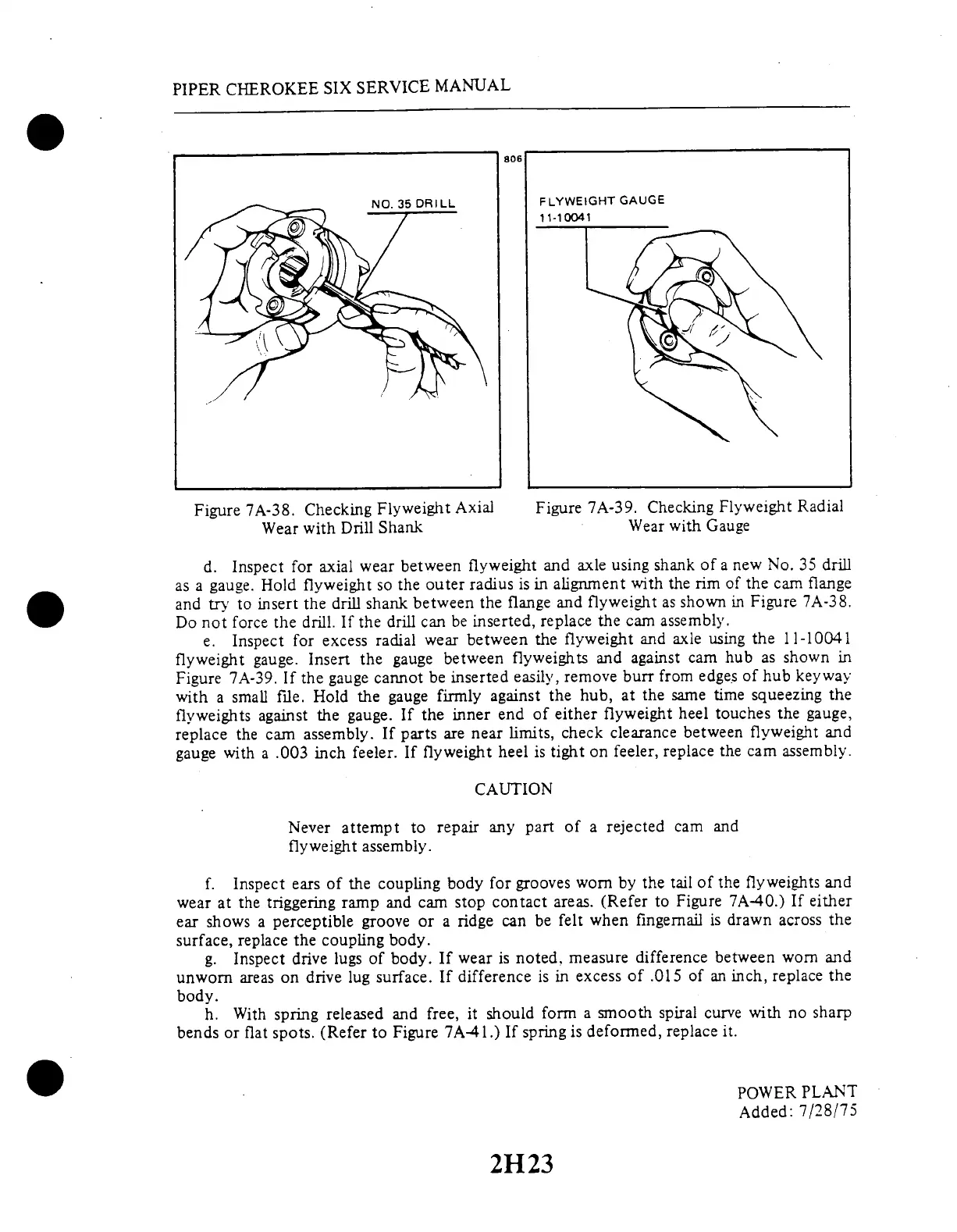

Figure
7A-38.
Checking
Flyweight
Axial
Figure
7A-39.
Checking
Flyweight
Radial
Wear
with
Drill
Shank
Wear
with
Gauge
d. Inspect
for axial
wear
between
flyweight
and
axle
using
shank
of a
new No.
35
drill
as a
gauge.
Hold
flyweight
so the
outer
radius
is
in alignment
with
the
rim of
the
cam
flange
and
try
to insert
the
drill
shank
between
the
flange
and
flyweight
as shown
in Figure
7A-38.
Do
not
force
the drill.
If the
drill
can be
inserted,
replace
the
cam
assembly.
e. Inspect
for
excess
radial
wear
between
the
flyweight
and
axle
using
the
11-10041
flyweight
gauge.
Insert
the
gauge
between
flyweights
and
against
cam
hub
as
shown
in
Figure
7A-39.
If the
gauge
cannot
be inserted
easily,
remove
burr
from
edges
of hub
keyway
with
a small
file. Hold
the gauge
firmly
against
the
hub,
at
the same
time
squeezing
the
flyweights
against
the
gauge.
If the
inner
end
of either
flyweight
heel
touches
the gauge,
replace
the
cam
assembly.
If
parts
are
near
limits,
check
clearance
between
flyweight
and
gauge
with
a .003
inch
feeler.
If
flyweight
heel
is tight
on
feeler,
replace
the
cam
assembly.
CAUTION
Never
attempt
to repair
any
part
of a
rejected
cam
and
flyweight
assembly.
f.
Inspect
ears
of
the coupling
body
for grooves
worn
by the
tail of
the flyweights
and
wear
at
the triggering
ramp
and
cam stop
contact
areas.
(Refer
to Figure
7A40.)
If either
ear
shows
a perceptible
groove
or a ridge
can
be
felt when
fingernail
is drawn
across
the
surface,
replace
the
coupling
body.
g.
Inspect
drive
lugs
of
body.
If wear
is noted,
measure
difference
between
worn
and
unworn
areas
on
drive lug
surface.
If
difference
is in excess
of
.015
of an
inch,
replace
the
body.
h.
With
spring
released
and
free,
it should
form
a smooth
spiral
curve
with
no
sharp
bends
or flat
spots.
(Refer
to
Figure
7A-41.)
If spring
is
deformed,
replace
it.
