PIPER CHEROKEE SIX SERVICE MANUAL
823

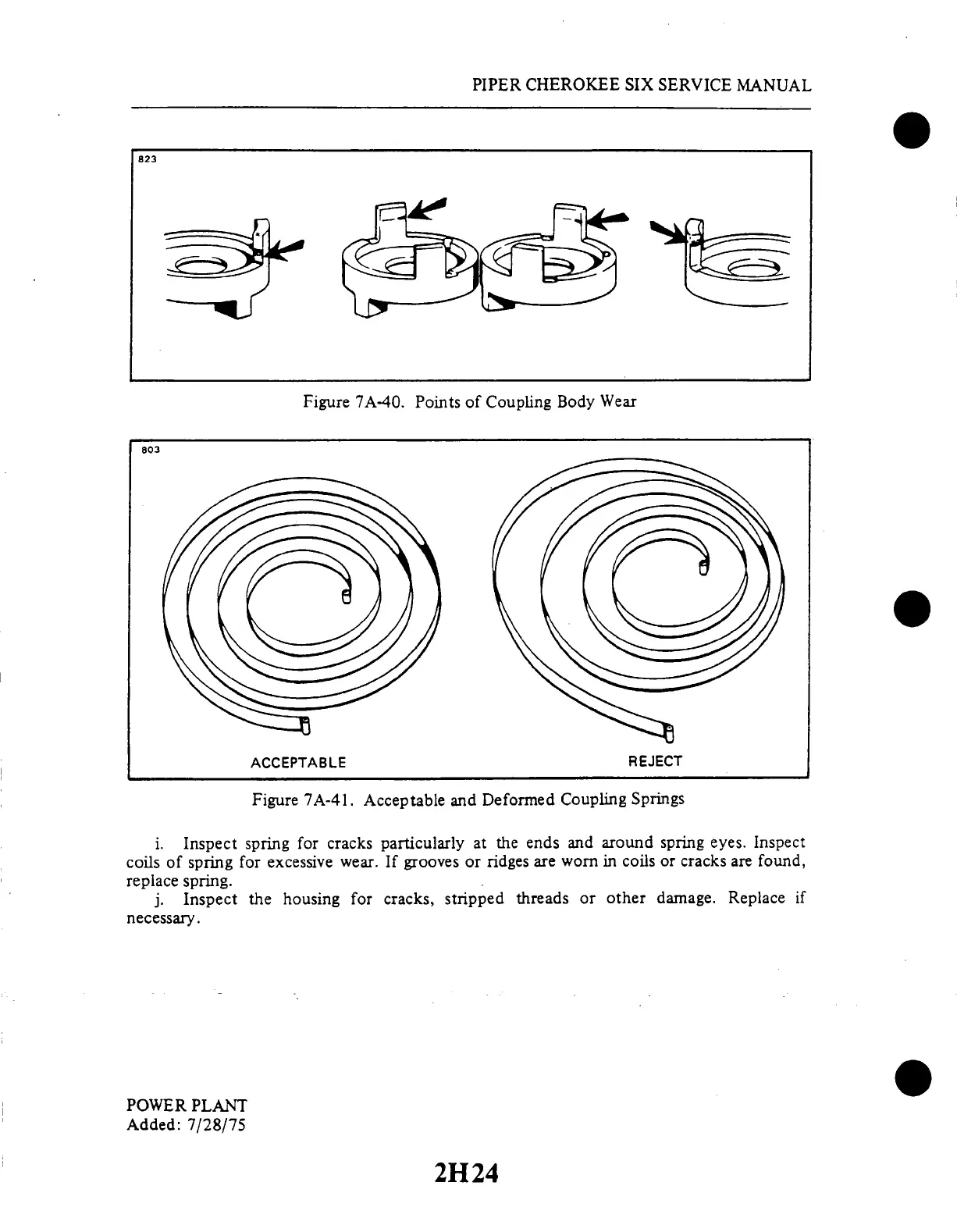

Figure
7A-40. Points
of Coupling Body
Wear
803
ACCEPTABLE
REJECT
Figure
7A-41. Acceptable
and
Deformed Coupling
Springs
i.
Inspect
spring for
cracks
particularly
at the
ends and
around
spring eyes.
Inspect
coils of spring
for
excessive
wear. If
grooves or
ridges are
worn in
coils or cracks
are
found,
replace spring.
j. Inspect
the
housing
for cracks,
stripped
threads
or
other damage.
Replace
if
necessary.
POWER PLANT
Added:
7/28/75
2H24
