244
CUT NOTCH TO FIT SNUG
ON NO. 58 DRILL WITH 1/2 COATINGSCRAPED
JAWS CLOSED.
FROM BRAID
FROM BRAID
BRAID
TO
EDGE
OF KNURLING
BLUE
COATING

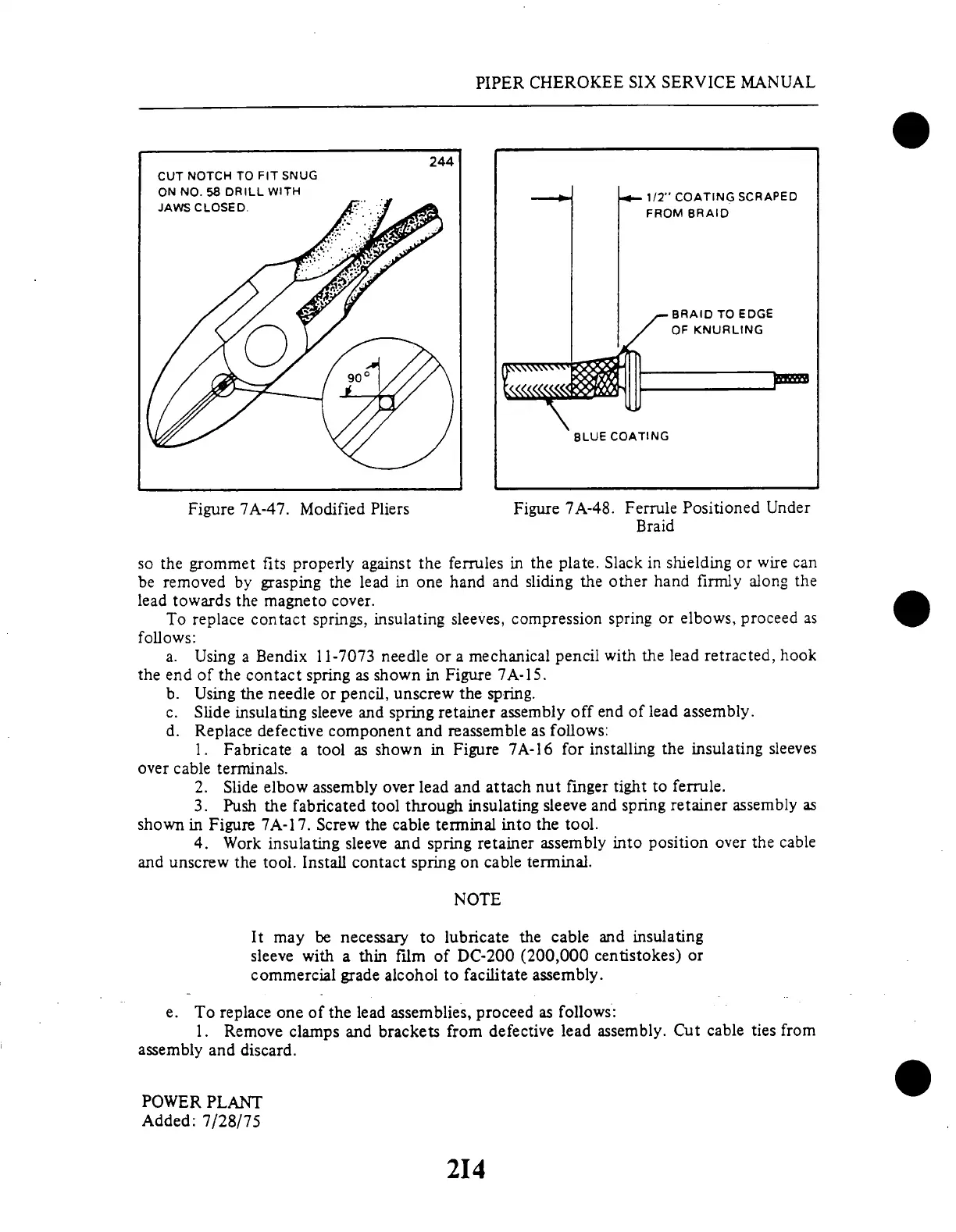

Figure
7A-47. Modified
Pliers
Figure 7A-48.
Ferrule Positioned
Under
Braid
so the
grommet fits properly against the ferrules
in the plate. Slack in shielding
or wire can
be removed
by grasping the lead in one hand and
sliding the other hand firmly along
the
lead towards the magneto cover.
To
replace contact
springs,
insulating
sleeves, compression
spring
or elbows,
proceed as
follows:
a. Using
a Bendix 11-7073
needle
or a mechanical
pencil
with the lead
retracted,
hook
the end of the contact spring as shown in Figure 7A-15.
b. Using
the needle or pencil,
unscrew the spring.
c. Slide insulating
sleeve and spring
retainer assembly
off end of
lead assembly.
d. Replace
defective component
and
reassemble
as follows:
1. Fabricate
a tool as
shown in
Figure 7A-16
for installing
the insulating
sleeves
over
cable terminals.
2. Slide elbow
assembly over
lead and attach
nut finger tight
to ferrule.
3. Push
the fabricated tool
through insulating
sleeve and spring
retainer assembly
as
shown in Figure
7A-17. Screw the cable
terminal into the tool.
4.
Work insulating sleeve and spring retainer
assembly into position over
the cable
and unscrew the tool. Install
contact spring on cable
terminal.
NOTE
It may be
necessary to
lubricate the
cable and
insulating
sleeve with
a thin film
of DC-200 (200,000
centistokes)
or
commercial
grade alcohol
to facilitate assembly.
e. To replace one of the lead assemblies, proceed as follows:
1. Remove
clamps and
brackets from defective
lead assembly.
Cut cable
ties from
assembly and discard.
POWER
PLANT
Added:
7/28/75
PIPER CHEROKEE SIX SERVICE MANUAL
214
