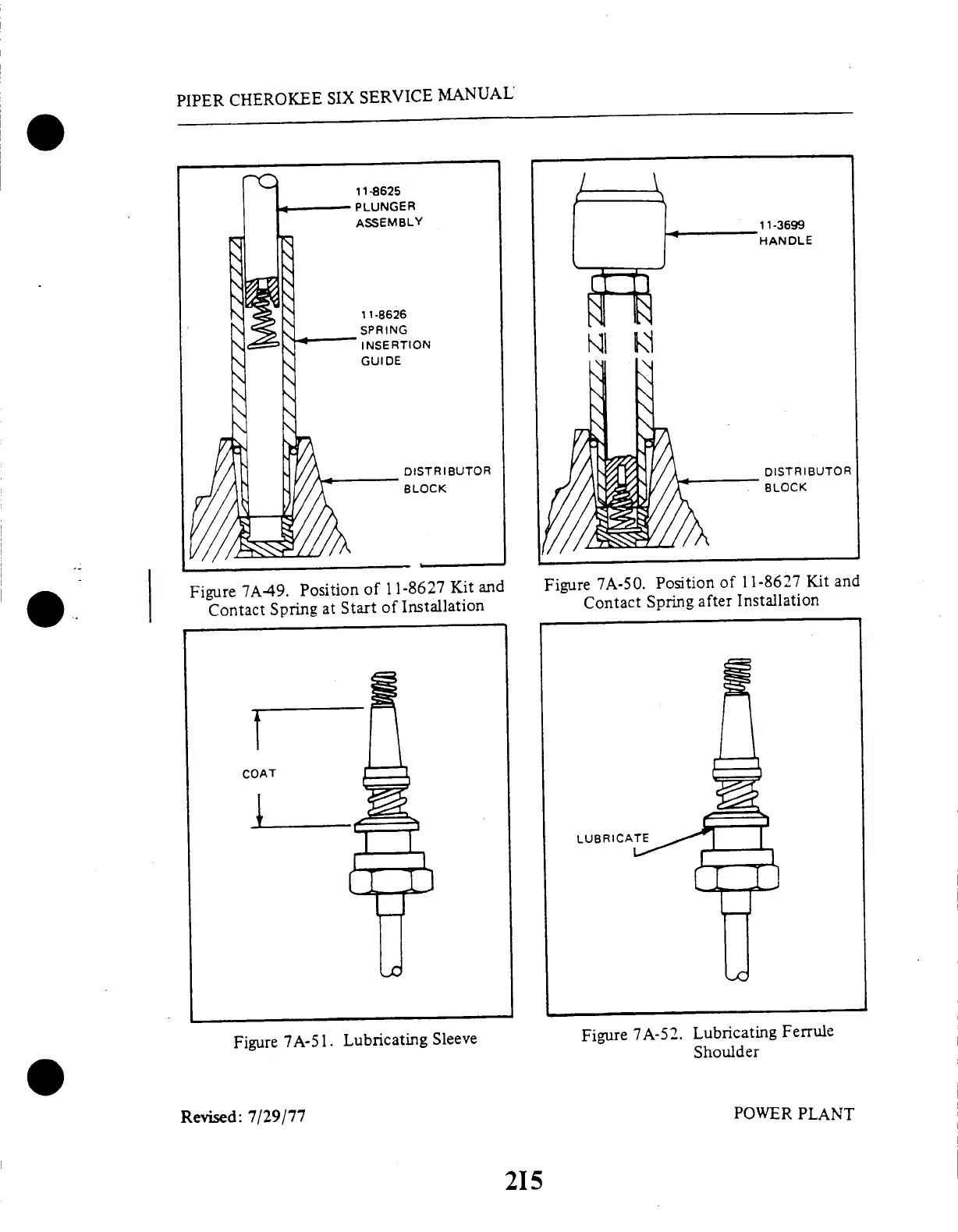

11-8625
PLUNGER
ASSEMBLY
DISTRIBUTOR
BLOCK
Figure
7A49.
Position
of
11-8627
Kit
and
Contact
Spring
at
Start
of
Installation
COAT
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
11-3699
11-8626
SPRING
INSERTION
GUIDE
DISTRIBUTOR
BLOCK
Figure
7A-50.
Position
of
11-8627
Kit
and
Contact
Spring
after
Installation
LUBRICATE
Figure
7A-51.
Lubricating
Sleeve
Figure
7A-52.
Lubricating
Ferrule
Shoulder
Revised:
7/29/77
POWER
PLANT
215
