Piper Cherokee Six - Page 497

PIPER
CHEROKEE
SIX SERVICE
MANUAL
2604
1. MASTER
SWITCH
2.
ACCESSORY
SWITCHES
3. RADIO COMPASS
4. CLOCK
5 TURN INDICATOR
6. AIRSPEED INDICATOR
7. DIRECTIONAL GYRO
8. ARTIFICIAL HORIZON
9. VERTICAL SPEED INDICATOR
10.
ALTIMETER
II MARKER BEACON LIGHTS
12 GLIDE SLOPE INDICATOR
13. OMNI BEARING NAV HEAD
14. AUDIO
SELECTOR
PANEL
15. MAGNETIC COMPASS
16.
NAV/COMM
TRANSCEIVERS
17. TRANSPONDER
18.
ADF
RADIO
19. DME
RADIO
20 CIGAR LIGHTER
21 AUTOCONTROL
22. ENGINE INST.CLUSTER
23. RADIO COUPLER
24. TRANSMITTER
SELECTOR
25. PITCH
TRIM SWITCH
26. MAGNETO
AND STARTER
SWITCH
27. CONTROL LOCK
28. MANIFOLD
PRESSURE
GAUGE
29. FUEL SYSTEM INST. CLUSTER
30. TACHOMETER
31 THROTTLE QUADRANT
32 ALTERNATE
AIR CONTROL
33. NAV AND INSTRUMENT LIGHTS
34. EGT
INDICATOR
35 GYRO SUCTION GAUGE
]6. CIRCUIT BREAKER PANEL
37. HEAT AND EFROST CONTROLS
38
CIRCUITBREAKERCOVER

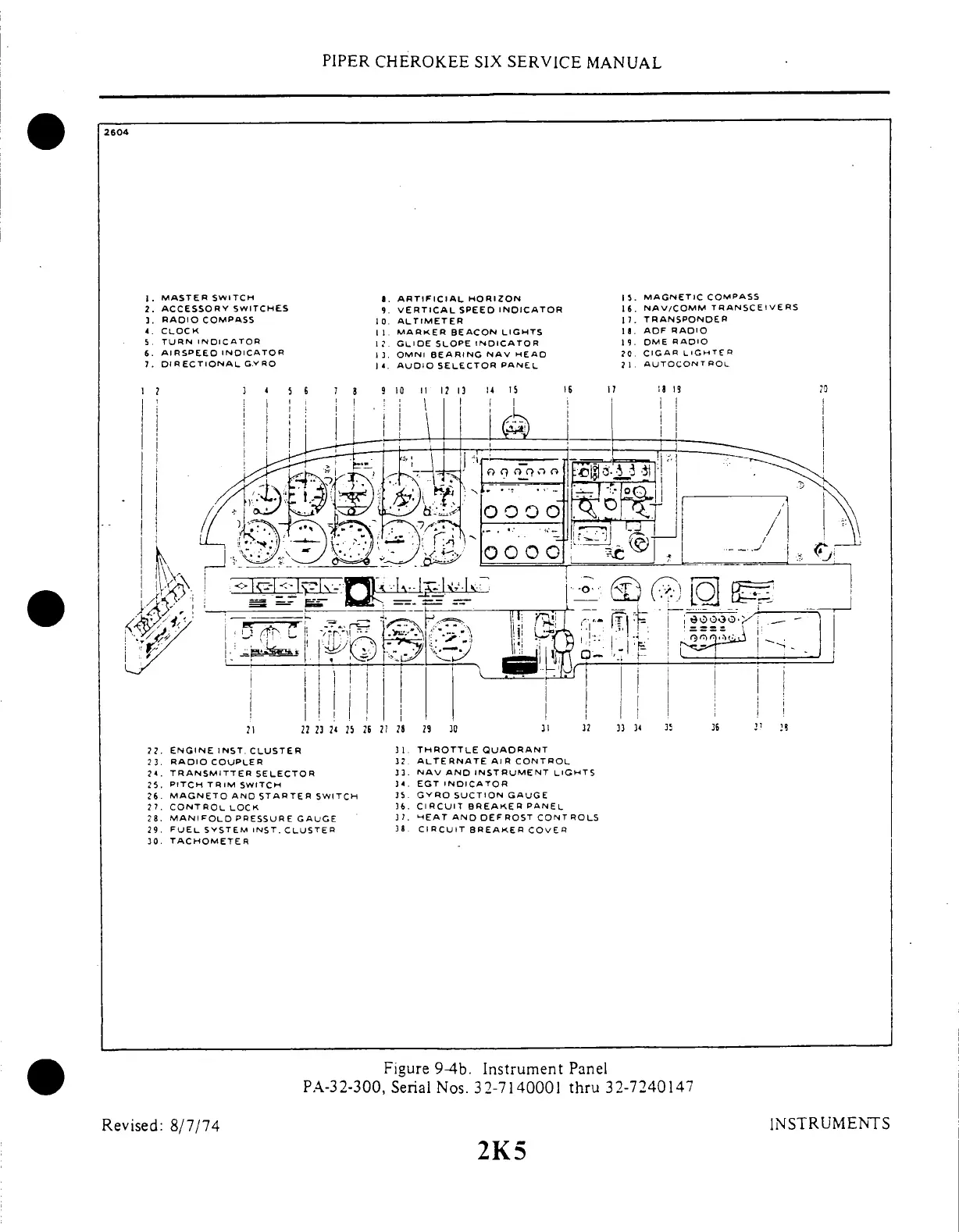

Figure 9-4b. Instrument Panel
PA-32-300, Serial Nos. 32-7140001 thru 32-7240147
Revised: 8/7/74
INSTRUMENTS
2K5
