Piper Cherokee Six - Page 498

PIPER
CHEROKEE
SIX SERVICE
MANUAL
2603
I. MASTER SWITCH
2.
ACCESSORY
SWITCHES
3.
RADIO
COMPASS
4.
CLOCK
5.
TURN INDICATOR
6. AIRSPEED INDICATOR
7. DIRECTIONAL GYRO
8. ARTIFICIAL
HORIZON
9 VERTICAL
SPEED
INDICATOR
10.
ALTIMETER
I .
MARKER BEACON
LIGHTS
12.
VOR/ILS INDICATOR
15
13. VOR/ILS
INDICATOR
14. AUDIO
SELECTOR
PANEL
I . MAGNETIC COMPASS
16.
NAV/COMM
TRANSCEIVERS
17. TRANSPONDER
18.
ADF RADIO
20.
CIGAR
LIGHTER
29.
TACHOMETER
31
CLIMATE
CONTROL
CENTER
21.
AUTOCONTROL
30.
MICROPHONE
38
CIRCUIT
BREAKER
COVER
22. ENGINE
INST.
CLUSTER
31
THROTTLE
QUADRANT
23. RADIO
COUPLER
32. ALTERNATE
AIR
24.
TRANSMITTER
SELECTOR
33.
NAV/INSTRUMENT
LIGHTS
25. PITCH
TRIM
SWITCH
34. EGT
INDICATOR
26. MAG.
AND
STARTER
SW
35.
GYRO
SUCTION
GAUGE
27. MANIFOLD
PRESS. GAUGE

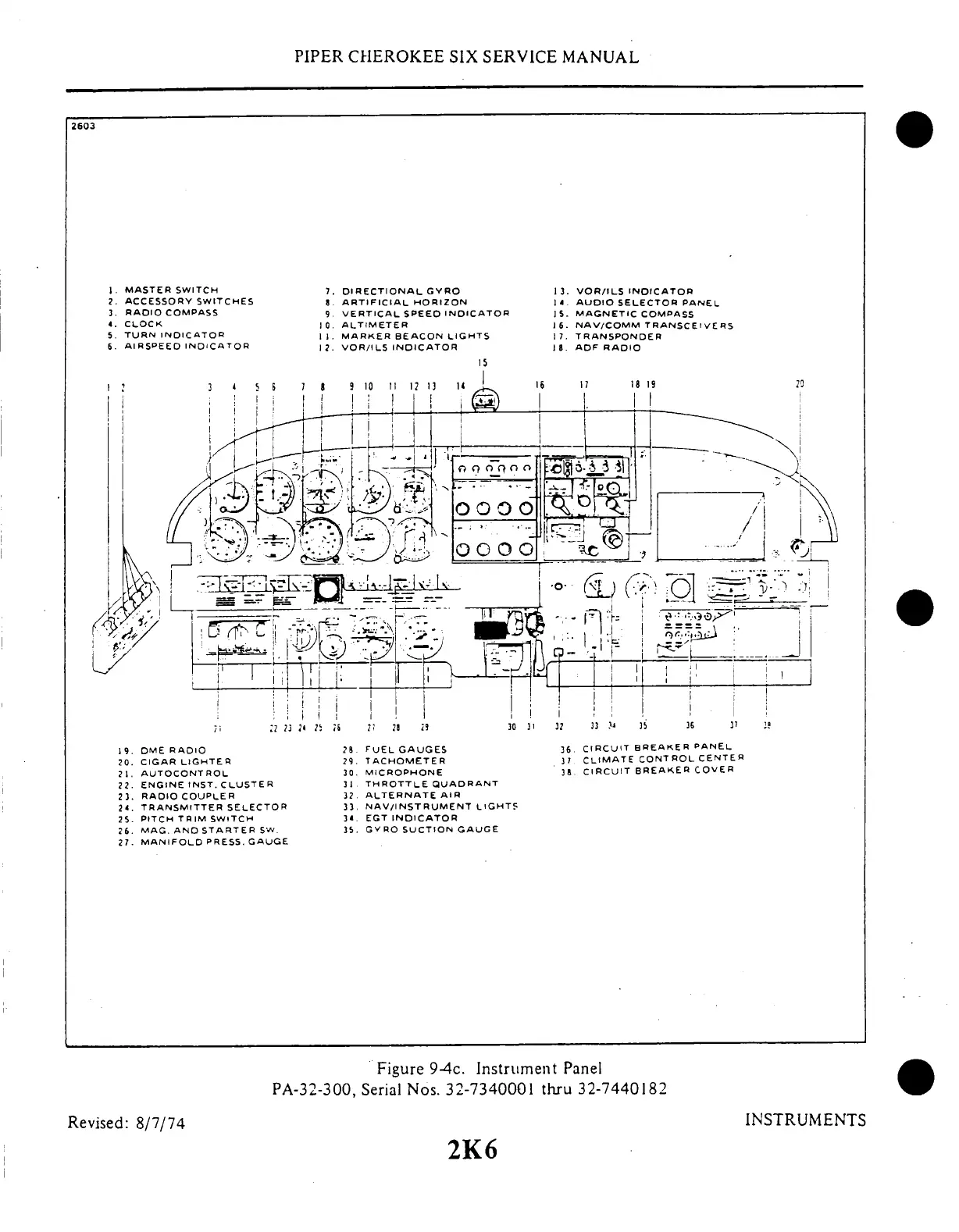

Figure
9-4c.
Instrument
Panel
PA-32-300,
Serial
Nos. 32-7340001
thru
32-7440182
Revised: 8/7/74
INSTRUMENTS
2K6
