EXTERNAL
POWER
RECEPTACLE
EXTERNAL
POWER
SOLENOID
MASTER
SOLENOID
ALTERNATOR
SWITCH
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
3101
STARTER
CIRCUIT
PROTECTOR
15
AMP
ALTERNATOR
CIRCUIT
PROTECTOR
5 AMP
STARTER
STARTER'
_-
SWITCH
RADIO
INTRERERENCE
FILTER
ALTERNATOR
ALTERNATOR
CIRCUIT
PROTECTOR
60 AMP
AMMETER
VOLTAGE
REGULATOR
BATTERY
SWITCH
BAT
OVERVOLTAGE
RELAY
IGN
F
6 REE
NOTE
MECHANICAL
INTERLOCK
NOT
USED
ON PA-32-260.
S/N
32-1112
TO 32-7300066
AND
PA-32-300,
S/N
32-40567
TO 32-7340191

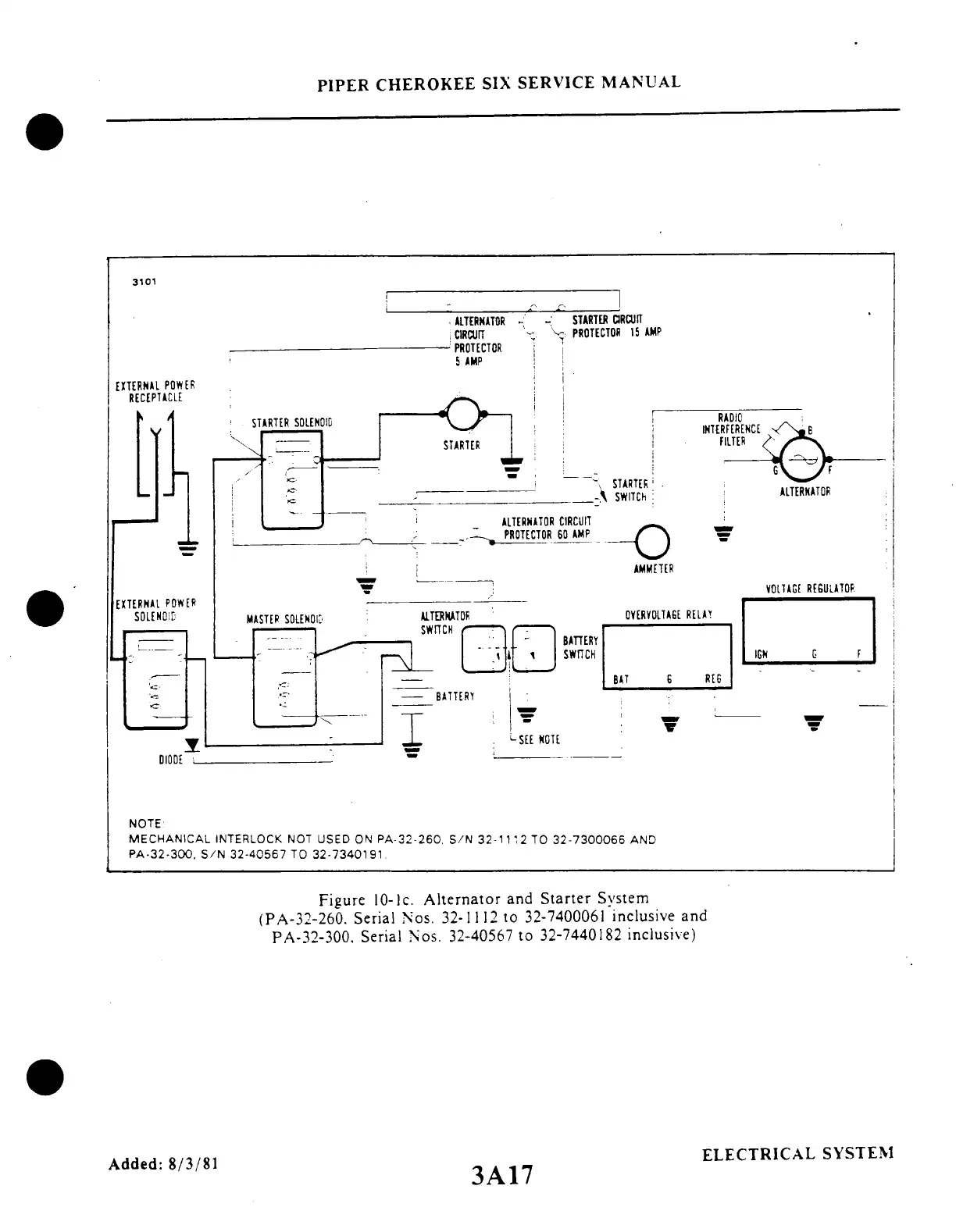

Figure
10-lc.
Alternator
and
Starter
System
(PA-32-260.
Serial
Nos.
32-1112
to
32-7400061
inclusive
and
PA-32-300.
Serial
Nos.
32-40567
to
32-7440182
inclusive)
ELECTRICAL
SYSTEM
Added: 8/3/81
3A17
