Piper Cherokee Six - Page 556

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
STATOR
LEAD
RECTIFIER
LEAD

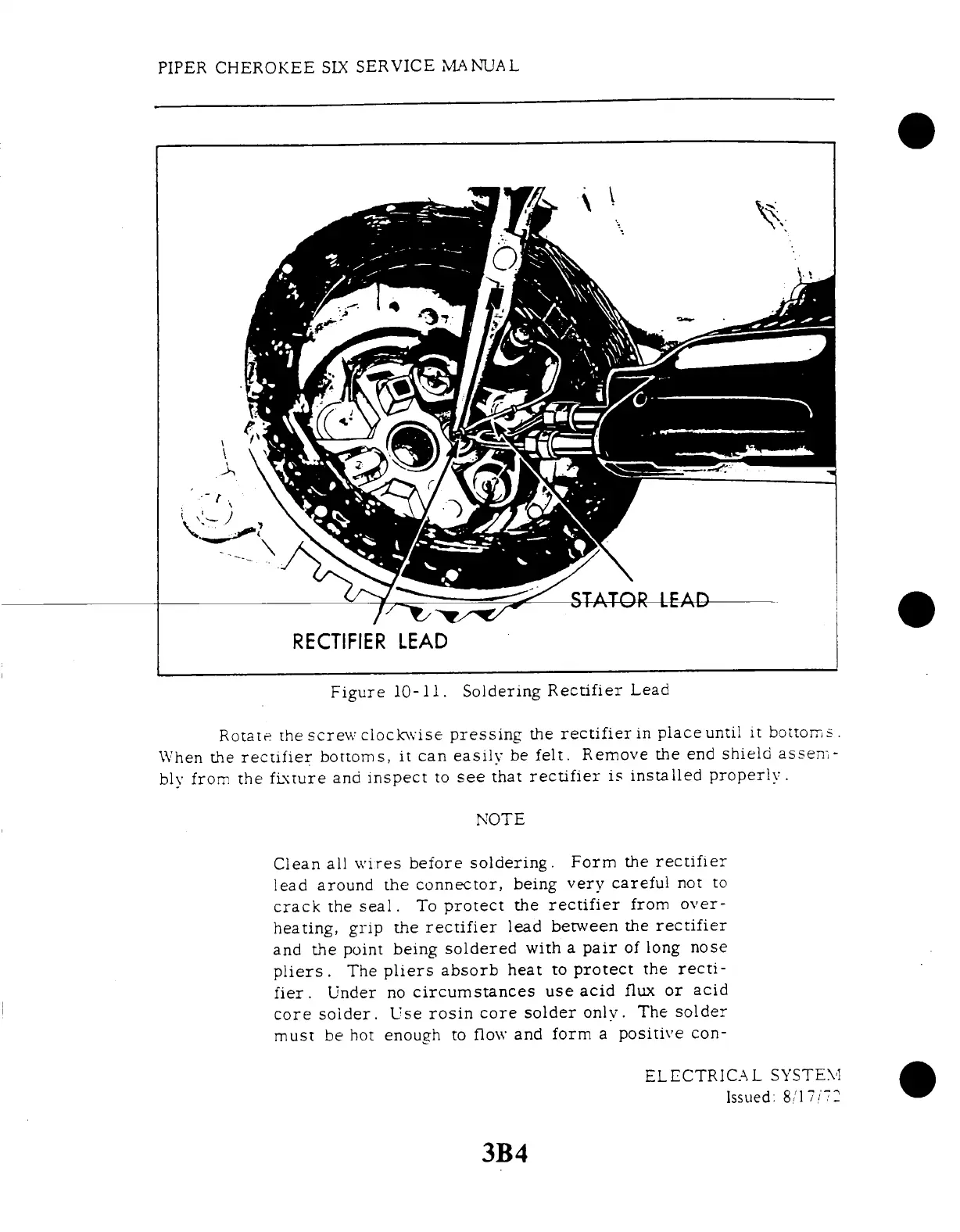

Figure
10-11.
Soldering
Rectifier
Lead
Rotate
the
screw
clockwise
pressing
the
rectifier
in
place
until
it
bottoms.
When
the
rectifier
bottoms,
it
can
easily
be felt.
Remove
the
end
shield
assem
bly
from
the
fixture
and
inspect
to
see
that
rectifier
is
installed
properly.
NOTE
Clean
all
wires
before
soldering.
Form
the
rectifier
lead
around
the
connector,
being
very
careful
not
to
crack
the
seal.
To protect
the
rectifier
from
over-
heating,
grip
the
rectifier
lead
between
the
rectifier
and
the
point
being
soldered
with
a pair
of
long
nose
pliers.
The
pliers
absorb
heat
to
protect
the
recti-
fier.
Under
no
circumstances
use
acid
flux
or
acid
core
solder.
Use
rosin
core
solder
only.
The
solder
must
be
hot
enough
to
flow
and
form
a
positive
con-
ELECTRICAL
SYSTEM
Issued:
8/17/72
3B4
