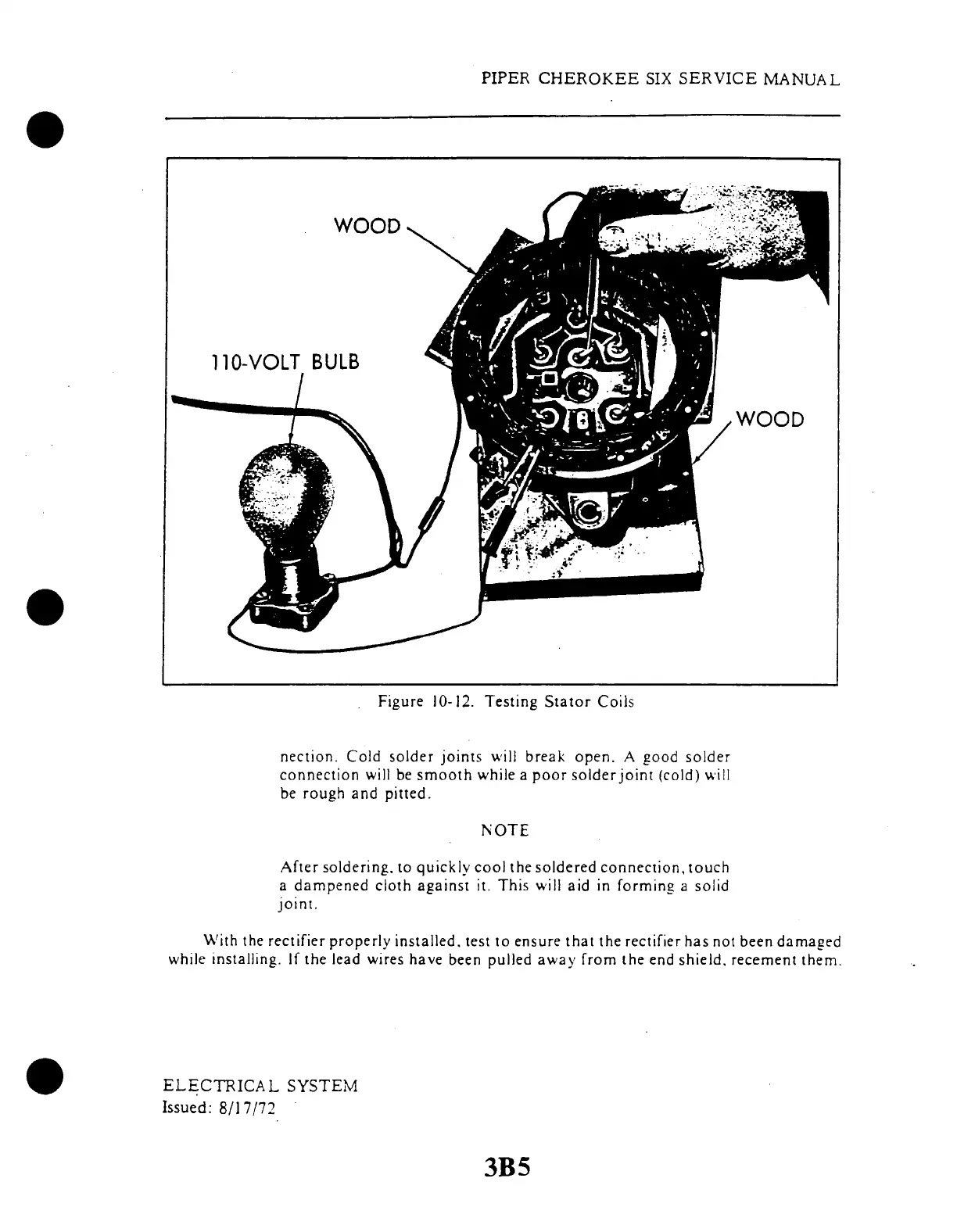

Figure 10-12.
Testing Stator
Coils
nection. Cold solder joints will break open. A good solder
connection will be smooth
while a poor solderjoint
(cold) will
be rough and pitted.
NOTE
After soldering.
to quickly cool the soldered
connection, touch
a dampened cloth against
it. This will aid in forming
a solid
joint.
With the rectifier
properly installed.
test to ensure
that the rectifier
has not been damaged
while installing.
If the lead wires
have been pulled
away from the end
shield. recement
them.
