COMPONENT
1. OLEO
STRUT FILLER
POINT
2. UPPER
TORQUE
LINK BEARING
3. TORQUE
LINK
BUSHING
4. TORQUE
LINK
CONNECTING
BUSHING
S. MAIN WHEEL BEARING
6. EXPOSED OLEO STRUT
7. BRAKE
RESERVOIR
1
*PIPER
CHEROKEE
SIX SERVICE MANUAL
LUBRICANT
MIL-H-5606A
MIL-G-23827
MI-L-7870
MIL-G-23827
TEXACO MARFAX ALL
PURPOSE
GREASE
OR
MOBIL
GREASE
77
(OR MOBIL EP2
GREASE)
FLUOROCARBON
RELEASE
AGENT DRY
LUBRICANT
MS-122
MIL-H-5606A
FREQUENCY
AS
REQUIRED
100 HRS
100 HRS
100 HRS
100 HRS
100
HRS
100 HRS
/
1683
7
SPECIAL INSTRUCTIONS
1. Main
wheel bearings - Disassemble and
clean with a dry
type
solvent. Ascertain that
grease is packed between
the roller and
cone. Do not pack grease
In wheel
housing. Wheel bearings require cleaning and repacking
after exposure to an abnormal quantity of water.
2.
Oleo struts
and brake reservoir
- Fill
per Instructions
on
unit or container or refer to service manual.

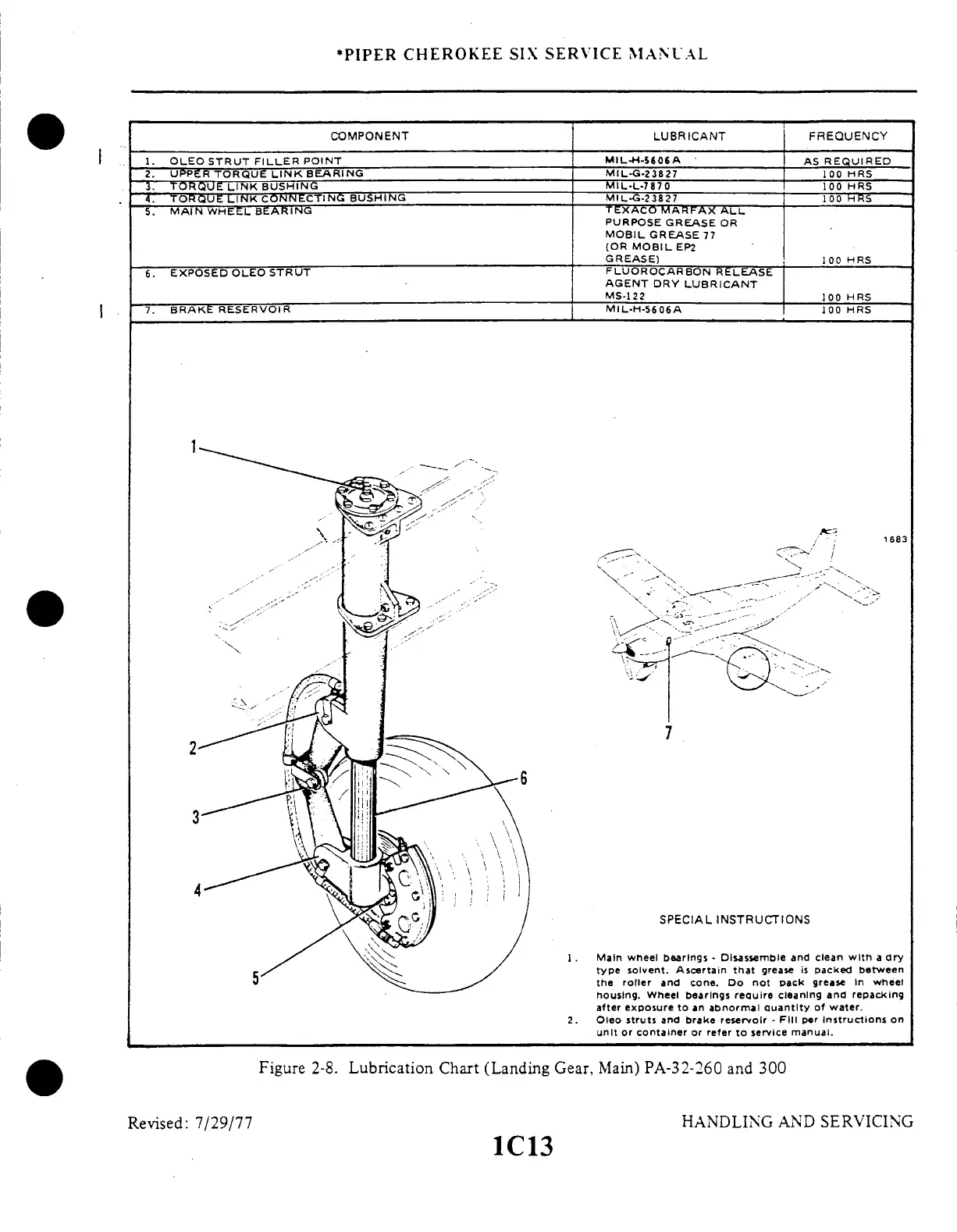

Figure 2-8. Lubrication Chart (Landing Gear, Main) PA-32-260 and 300
Revised:
7/29/77
