*PIPER CHEROKEE
SIX SERVICE
MANUAL
COMPONENT
LUBRICANT
FREQUENCY
1. MAIN GEAR PIVOT POINTS
2. MAIN GEAR DOOR HINGE
3. MAIN GEAR TORQUE LINKS
4.
EXPOSED OLEO
STRUT MAIN
5. MAIN GEAR WHEEL BEARINGS
6. MAIN GEAR DOOR CONTROL ROD ENDS
7. MAIN GEAR SIDE BRACE LINK ASSEMBLY
8. UPPER SIDE BRACE SWIVEL FITTING
9. MAIN GEAR DOWNLOCK ASSEMBLY
RETRACTION
FITTING AND
CYLINDER
ATTACHMENT POINTS
10. OLEO STRUT
FILLER POINT
(MAIN GEAR)
11. HYDRAULIC
PUMP
RESERVOIR
12. BRAKE
RESERVOIR
MIL-G-23827
MIL-L-7870
MIL-L-7870
FLUOROCARBON RELEASE
AGENT DRY LUBRICANT
MS-122
TEXACO MARFAX ALL
PURPOSE
GREASE
OR
MOBIL
GREASE
77
(OR MOBIL EP2
GREASE)
MIL-L-7870
MIL-G-23827
MIL-G-23827
MIL-L-7870
MIL-H-5606A
MIL-H-5606A
MIL-H-5606A
100 HRS
100 HRS
100 HRS
100
HRS
100
HRS
100 HRS
100 HRS
100
HRS
100 HRS
AS REQUIRED
100 HRS
100 HRS
9
6
4
8
0
1619
11
SPECIAL
INSTRUCTIONS
1. Main wheel bearings - Disassemble and clean with a dry
type solvent. Ascertain that grease Is packed between
the roller and cone. Do not pack grease In wheel
housing. Wheel bearings require cleaning and repacking
after exposure to an abnormal quantity of water.
2. Oleo struts, hydraulic pump reservoir and brake
reservoir - Fill per Instructions on unit or container or
refer to service
manual.

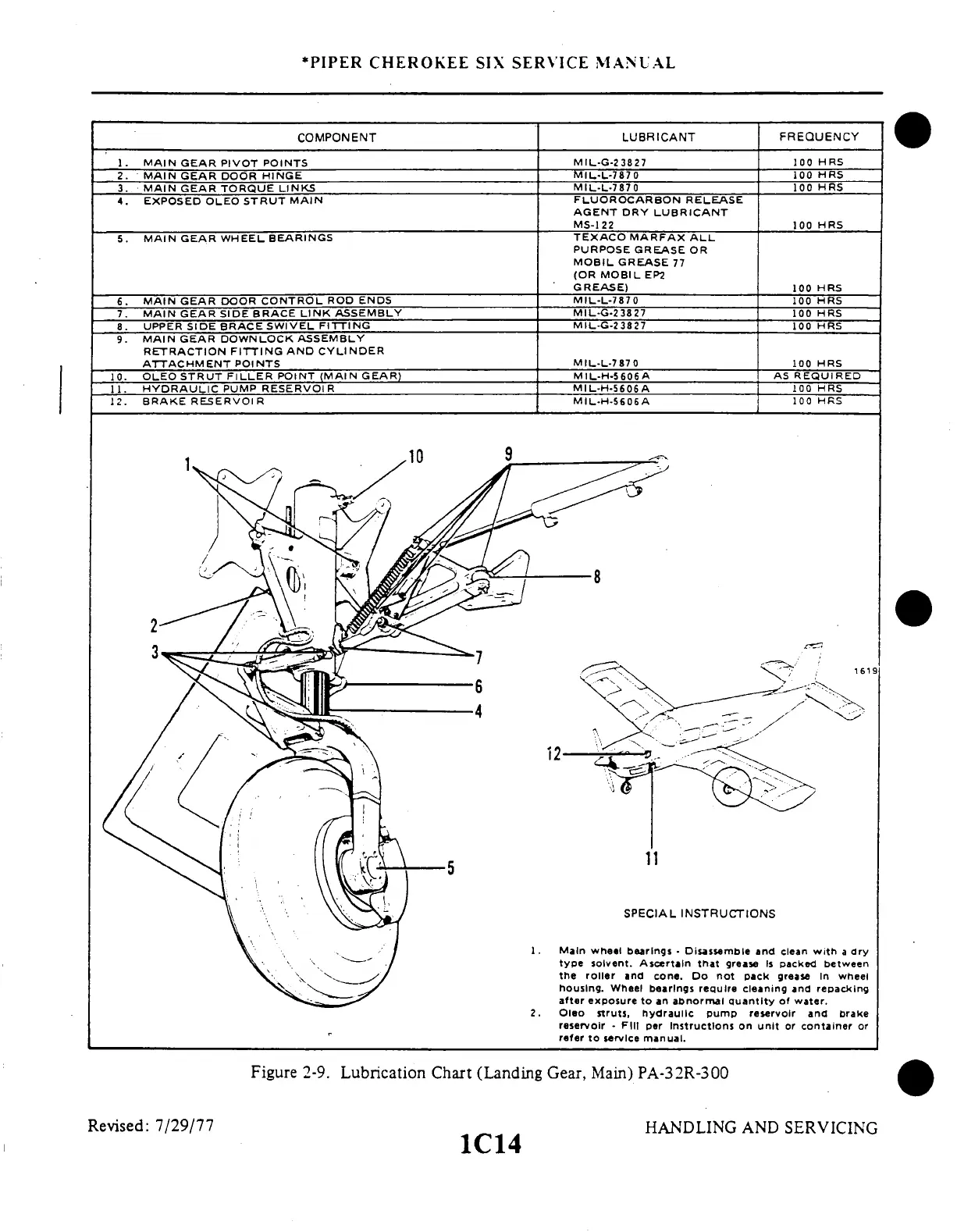

Figure
2-9. Lubrication Chart
(Landing Gear, Main) PA-32R-300
Revised: 7/29/77
1C14
HANDLING
AND SERVICING
