PIPER
CHEROKEE
SIX SERVICE
MANUAL
COMPONENT
I NOSE GEAR STRUT HOUSING GREASE FITTING
2. NOSE GEAR PIVOT POINT AND HYDRAULIC
CYLINDER
ROD
END
3. NOSE GEAR DOOR RETRACTION MECHANISM
4. NOSE GEAR DOOR HINGES
5. EXPOSED OLEO STRUT
6. NOSE WHEEL BEARINGS
7. NOSE GEAR DRAG LINK ASSEMBLIES
8.
NOSE GEAR TORQUE
LINK ASSEMBLY
AND
STRUT HOUSING
9. DOWNLOCK HOOK,
TENSION SPRING
ARMS,
SHIMMY DAMPENER AND ALIGNING ROLLER
PIVOT POINTS
10. STEERING
BELLCRANK PIVOT
POINTS AND
ROD ENDS
11. NOSE GEAR OLEO STRUT FILLER POINT
LUBRICANT FREQUENCY
MIL-G-23827
MIL-L-7870
MIL-L-7870
MIL-L-7
870
FLUOROCARBON RELEASE
AGENT DRY LUBRICANT
MS-122
TEXACO
MARFAX
ALL
PURPOSE
GREASE
OR
MOBIL MOBIL GREASE
77 (OR
MOBIL
EP2
GREASE)
MIL-L-7870
MIL-G-23827
MIL-L-787
0
MIL-L-7870
MIL-H-5606A
100 HRS
100 HRS
100 HRS
100 HRS
100
HRS
100 HRS
100 HRS
100
HRS
100 HRS
100 HRS
AS REQUIRED
I
1615
1619
3
SPECIAL
INSTRUCTIONS
1. Nose wheel
bearings - Disassemble
and clean with a dry
type
solvent.
Ascertain
that
grease
Is packed
between
the roller and cone. Do not pack grease In wheel
housing.
Wheel bearings require
cleaning and repacking
after exposure to an abnormal quantity of water.
2. Oleo
struts - Fill per Instructions
on unit or refer
to
service
manual.

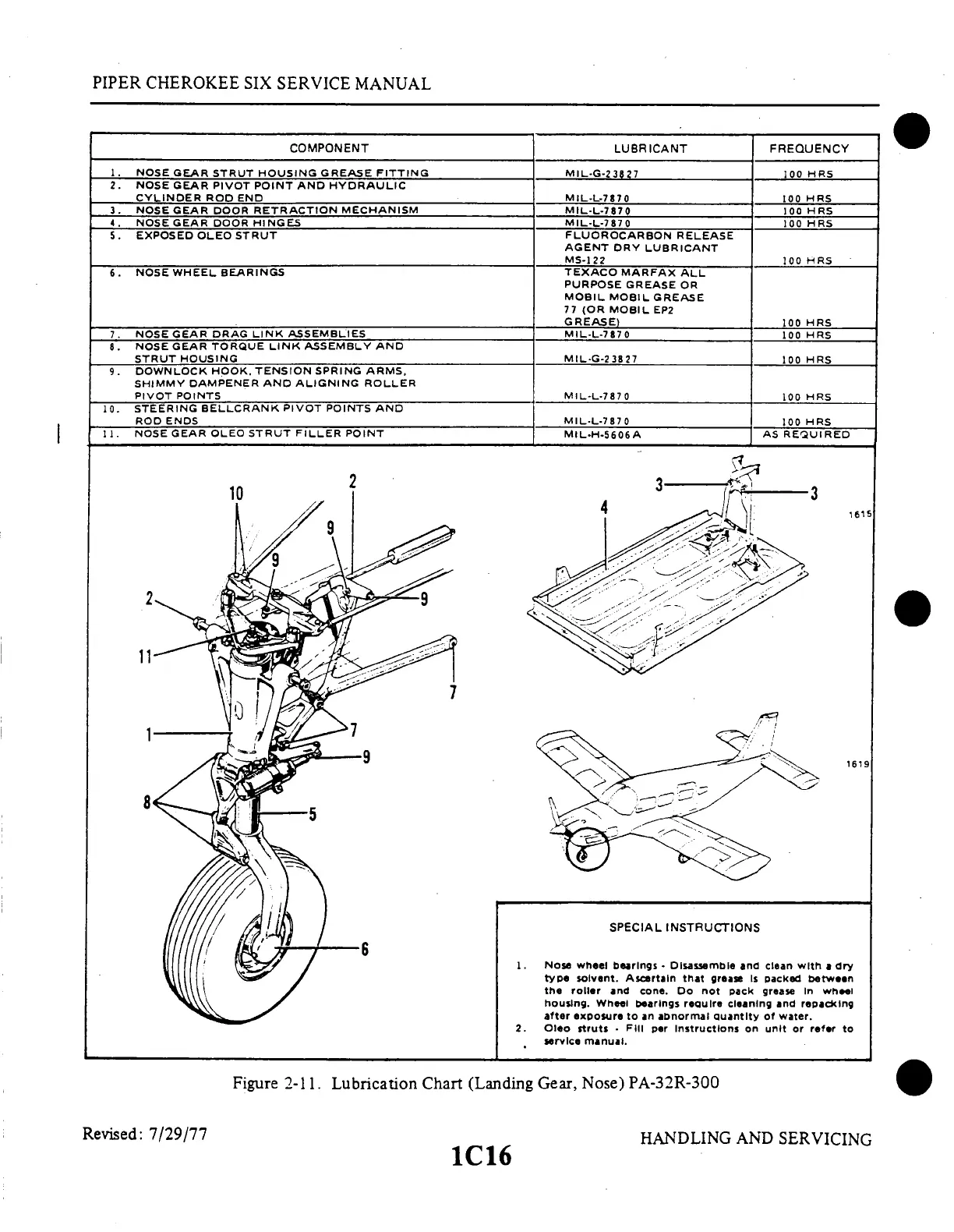

Figure 2-11. Lubrication Chart (Landing Gear, Nose) PA-32R-300
Revised: 7/29/77
HANDLING
AND
SERVICING
1C16
