*PIPER CHEROKEE
SIX SERVICE
MANUAL
- CA UTION -
Do not lubricate
control wheel
shaft or
bushing. Clean
only using
alcohol
or other
suitable solvent.
COMPONENT
1. AILERON HINGE PINS
2. FLAP HINGE BEARINGS
3. STABILATOR HINGE PINS
4.
RUDDER HINGE
BEARINGS
5. CONTROL
CABLE
PULLEYS
6.
TRIM CONTROL
WHEEL
7. O-RING, CONTROL
SHAFT BUSHING
8. TEE BAR
PIVOT POINT
9. CONTROL COLUMN CHAIN
10. CONTROL
COLUMN
FLEX.
JOINTS AND
SPROCKET
11. STABILATOR CONTROL
LUBRICANT
MIL-L-7870*
MIL-L-7870
MIL-L-7870
MIL-L-7870
MIL-L-7870
MIL-L-7870
OR
AEROSHELL
#7
PARKER O-RING
LUBRICANT
MIL-L-7870
MI-L-7870
MIL-L-7870
MIL-L-7870
FREQUENCY
100 HRS
100 HRS
100 HRS
100 HRS
100 HRS
100 HRS
AS REQUIRED
100 HRS
500 HRS
100 HRS
100 HRS
1776
SPECIAL
INSTRUCTIONS
Aileron hinges with teflon sleeves should not be lubricated.
Aileron
hinges without teflon
sleeves should first be
cleaned
with a dry type solvent then lubricated with MIL-L-7870.

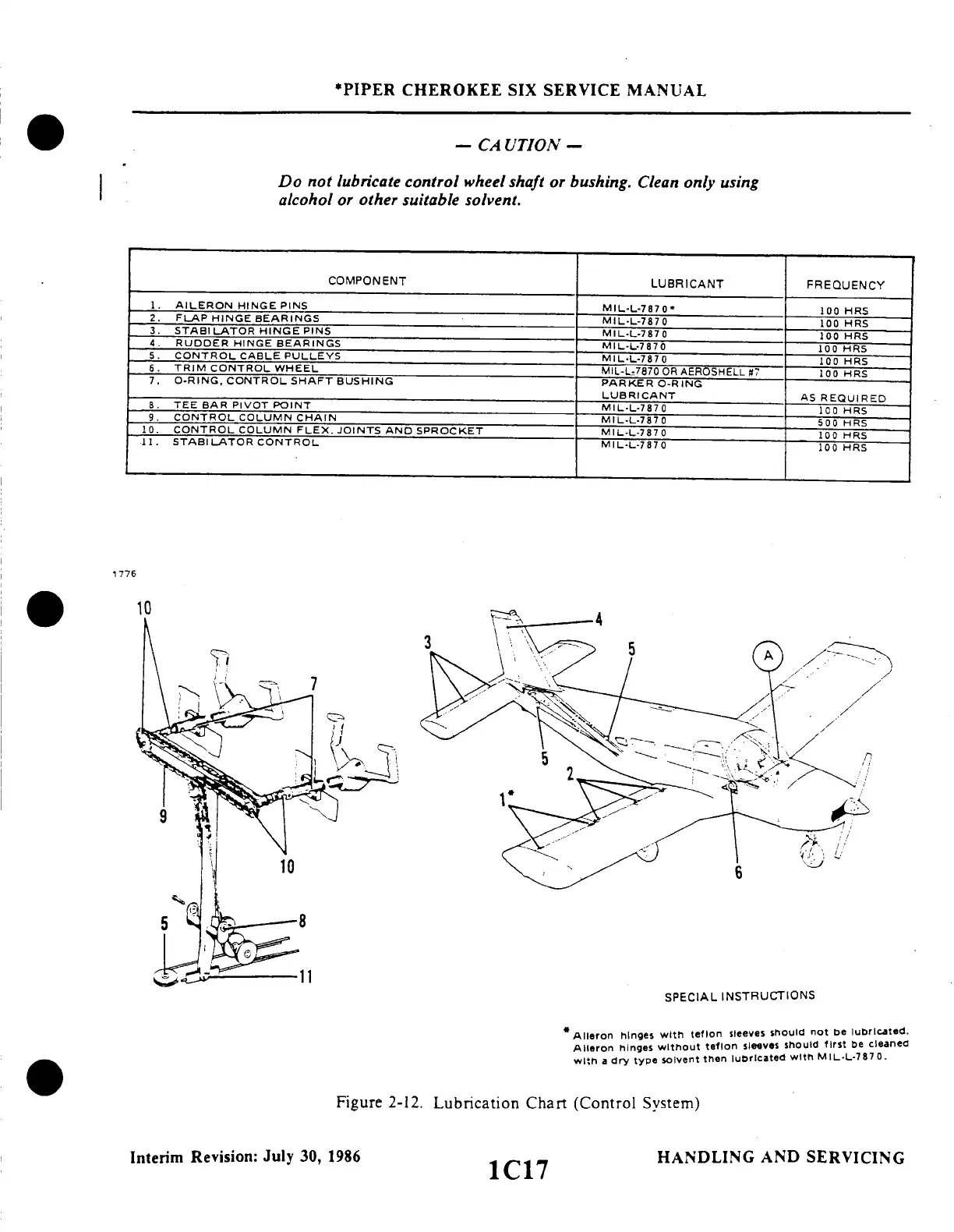

Figure
2-12. Lubrication
Chart (Control
System)
Interim Revision:
July 30, 1986
7
