Piper Cherokee Six - Page 66

C336
1876
1
*PIPER CHEROKEE
SIX SERVICE
MANUAL
COMPONENT
LUBRICANT
1. FLAP TORQUE
TUBE BEARING
BLOCKS
MIL-L-7870
2. FLAP CONTROL
ROD END BEARINGS
MIL-L-7870
3.
FLAP HANDLE
PIVOT
POINT,
LOCK
MECHANISM
AND
TURNBUCKLE
END
MIL-L-7870
4. FLAP
RETURN AND
TENSION CHAINS
MIL-L-7870
5. AILERON
BELLCRANK
PIVOT POINTS
MIL-L-7870
6.
AILERON CONTROL
ROD END BEARINGS
MIL-L-7870
7. AILERON
BELLCRANK
CABLE ENDS
MIL-L-7870
FREQUENCY
100 HRS
100 HRS
100 HRS
500 HRS
100
HRS
100 HRS
100 HRS
1605
PA-32R-300
SKETCH B
1652
2
2
4
7
SKETCH A
PA-32-260 & 300
SKETCH B

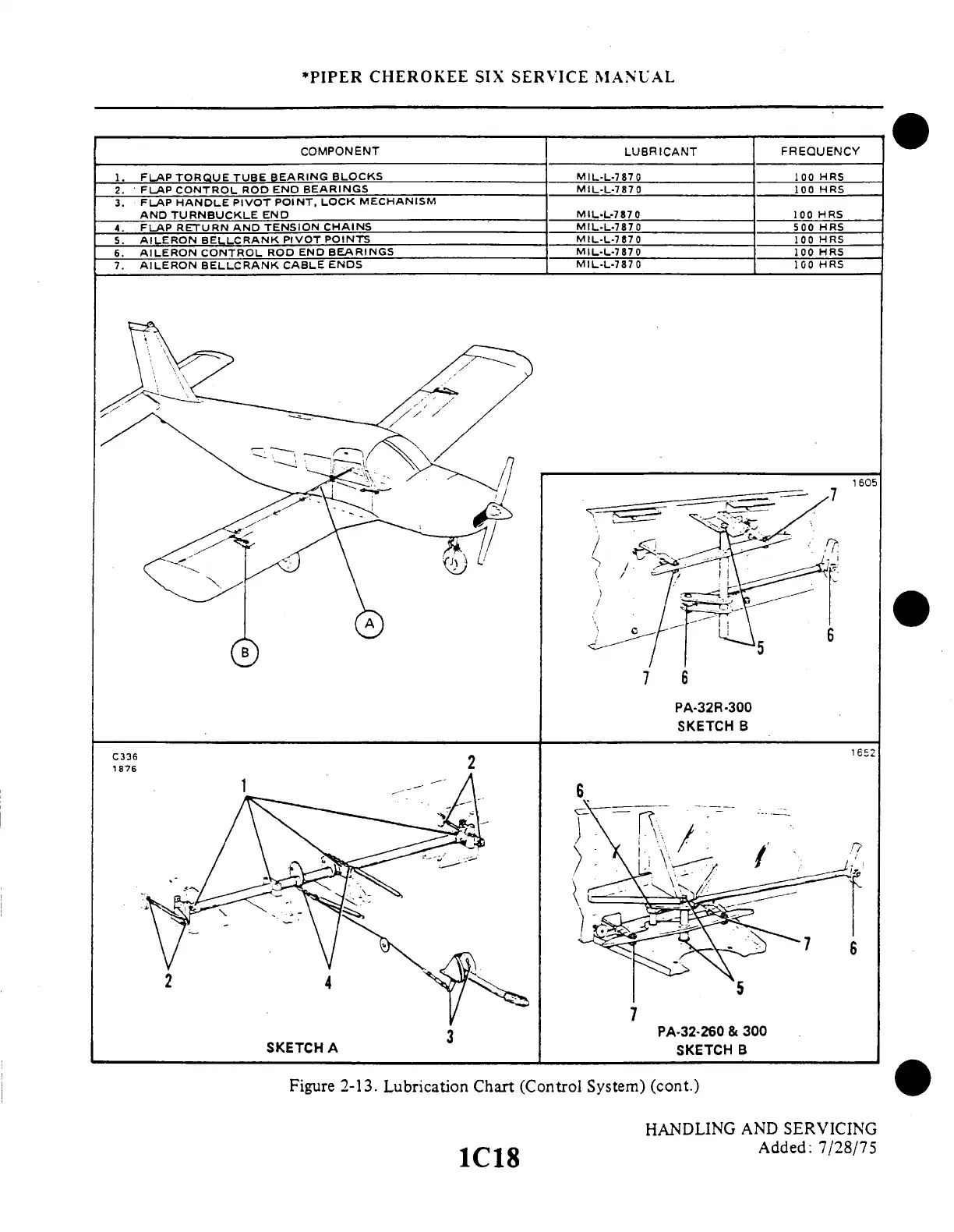

Figure 2-13. Lubrication
Chart (Control
System) (cont.)
HANDLING
AND SERVICING
1C18
Added:
7/28/75
