Piper Cherokee Six - Page 67

1750
PIPER
CHEROKEE
SIX
SERVICE.
MANUAL
COMPONENT
1.
RUDDER TUBE
BEARING BLOCKS
2. TOE
BRAKE
CYLINDER
ATTACHMENTS
3. 'RUDDER TUBE CONNECTIONS
4. BRAKE ROD ENDS
5. RUDDER
ARM CABLE
ENDS
6.
STABILATOR
TRIM SCREW
7. STABILATOR
SCREW/TAB
LINKS
8. STABILATOR
HINGE
POINTS
9. RUDDER
TRIM ASSEMBLY
LUBRICANT
FREQUENCY
FLUOROCARBON RELEASE
AGENT DRY LUBRICANT
MS-122
MIL-L-7870
OR AEROSHELL
#7
MIL-L-7870
MI LL7 870
MIL-L-7870
AERO LUBRIPLATE. FISKE
BROS.
REFINING
CO
FOR AEROSHELL
#71
OR MAG-1
MIL-L-7870
MIL-L-787
0
MI
LL-7870
(OR
AEROSHELL
#7)
100
HRS
100
HRS
100 HRS
100 HRS
100 HRS
100
HRS.
100
HRS
100 HRS
100
HRS
I
-7
1660
SKETCH A
SKETCH B
SKETCH C

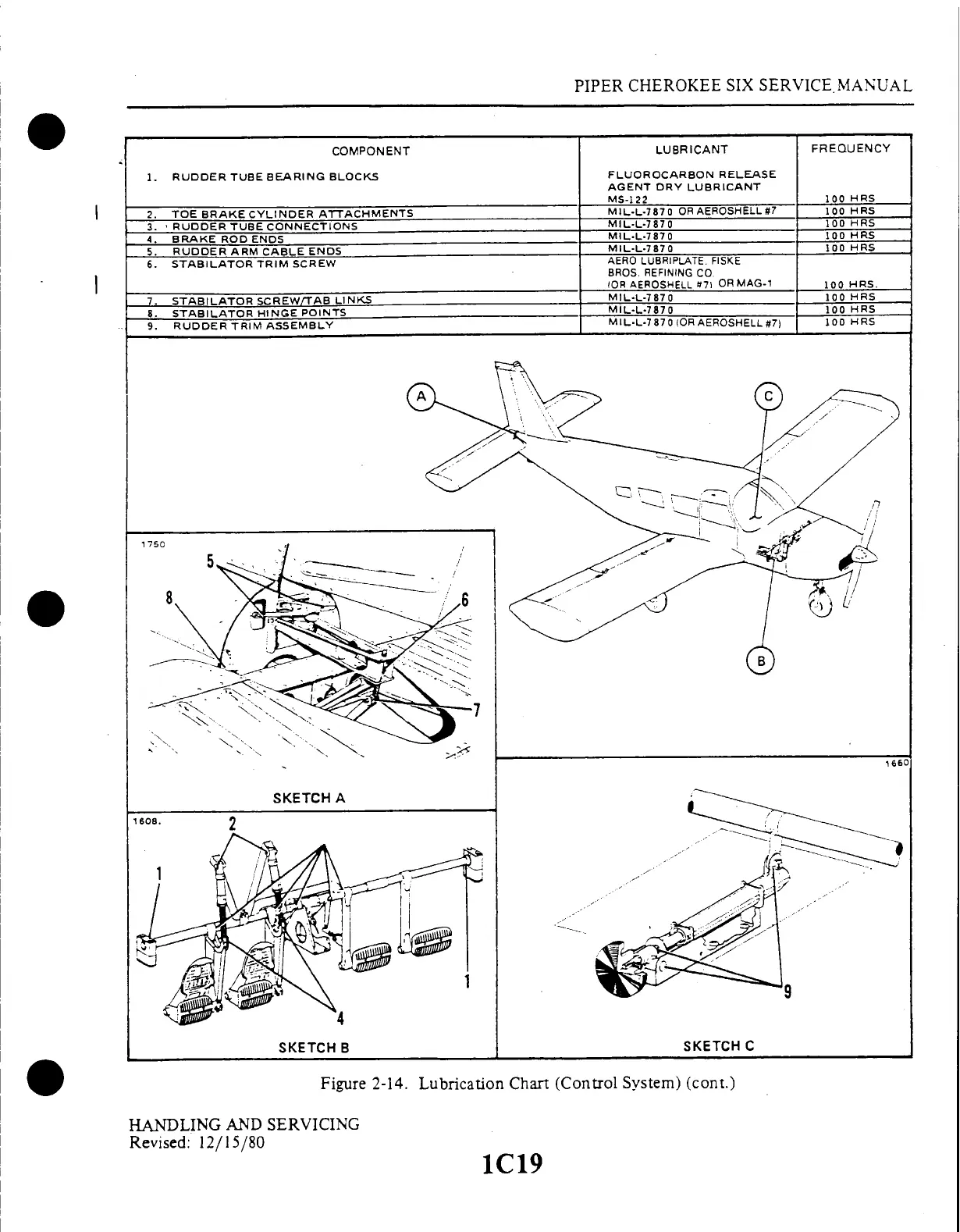

Figure 2-14.
Lubrication
Chart (Control
System)
(cont.)
HANDLING
AND
SERVICING
Revised: 12/15/80
1C19
