*PIPER
CHEROKEE
SIX
SERVICE
MANUAL
COMPONENT
1. CONDENSER
HINGE AND
ACTUATORS
2.
CONDENSER
DOOR ACTUATING
TRANSMISSION
1621
LUBRICANT
MIL-L-7870
MIL-G-23827
FREQUENCY
100 HRS
500 HRS
SPECIAL
INSTRUCTIONS
Transmission to be 1/2 full of grease. Apply grease during
assembly and lubricate
transmission ball nut
and screw with
MIL-G-23827
grease.

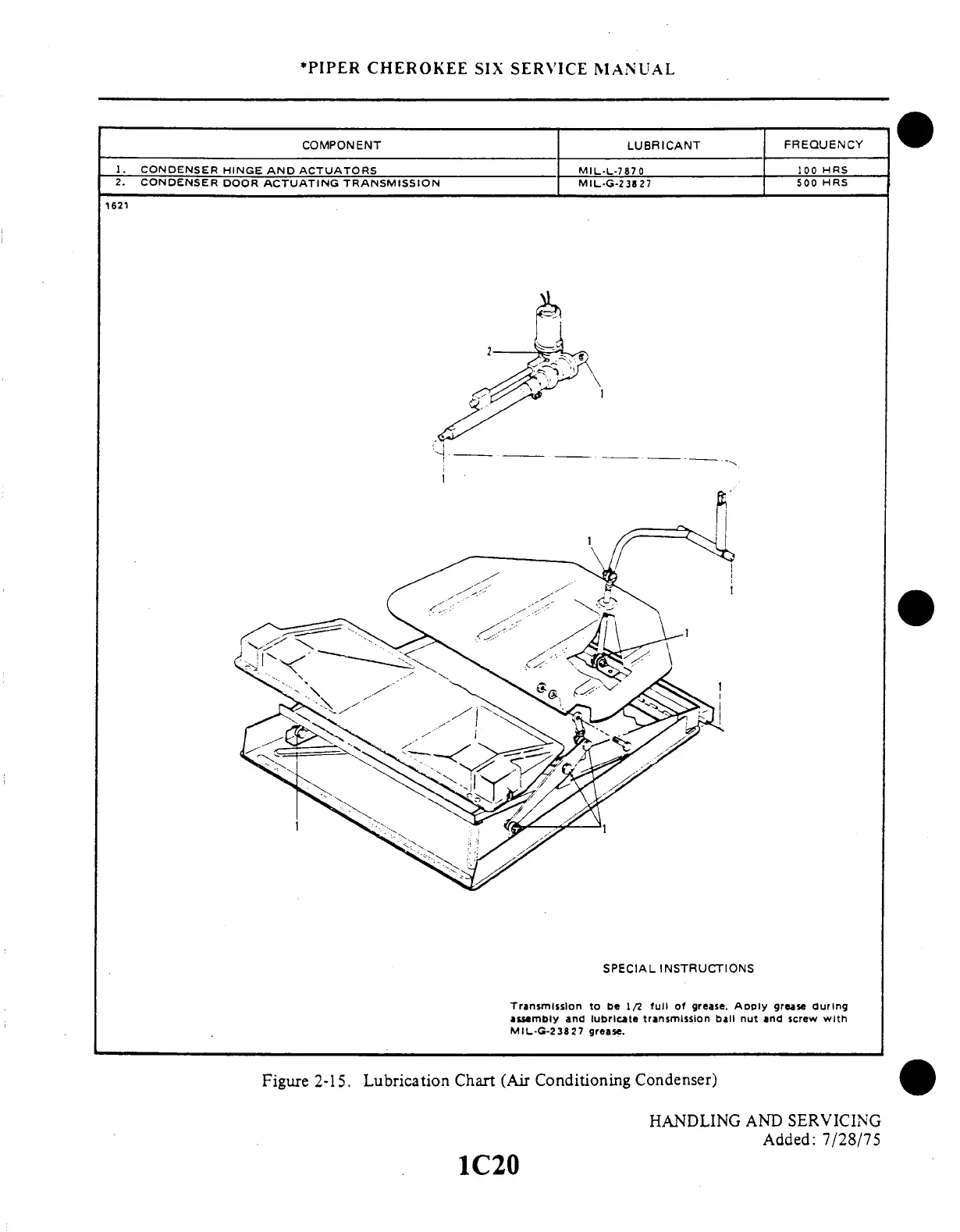

Figure 2-15. Lubrication Chart (Air Conditioning Condenser)
HANDLING AND SERVICING
Added: 7/28/75
1C20
