4
"A"
SEE VIEW
A
3
1. RING GEAR
2. COMPRESSOR
IDLER
PULLEY
3. COMPRESSOR
4.
COMPRESSOR
5. ALTERNATOR
6. RING GEAR
7. COMPRESSOR
BELT
8. COMPRESSOR
IDLER
SHEAVE
9. COMPRESSOR
SHEAVE
10. RING
GEAR SHEAVE
11.
ALTERNATOR
BELT
12.
ALTERNATOR
SHEAVE
13. ALTERNATOR
IDLER
SHEAVE
14. RING
GEAR
15. ALTERNATOR
SUPPORT
BRACKET
16. ALTERNATOR
17. ALTERNATOR
MOUNTING BRACKET
PIPER
CHEROKEE
SIX SERVICE
MANUAL
NOMINAL DIMENSION FOR
COMPRESSOR
BELT
ALIGNMENT
MISALIGNMENT
DIMENSION
CHECK
NOMINAL
DIMENSION
FOR
ALTERNATOR
BELT ALIGNMENT
5
MISALIGNMENT
DIMENSION
CHECK
STRAIGHT
EDGE
DATUM LINE
(FORWARD
SURFACE
OF
RING
GEAR)
DATUM LINE
(FORWARD
SURFACE OF RING
GEAR)
TO
ESTABLISH
ALTERNATOR
PULLEY
AND RING
GEAR
PARALLEL ALIGNMENT,
MEASURE
FROM
STRAIGHT
EDGE TO FACE
OF
PULLEY
(AT TWO
PLACES), POINT
"C",
AND AT
OTHER RELATIVE
BELT-PULLEY
CONTACT.
LATER INSTL.
ADD SHIMS
(P/N 62833-41)
AS
REQUIRED FOR PROPER
ALTERNATOR
BELT ALIGNMENT.

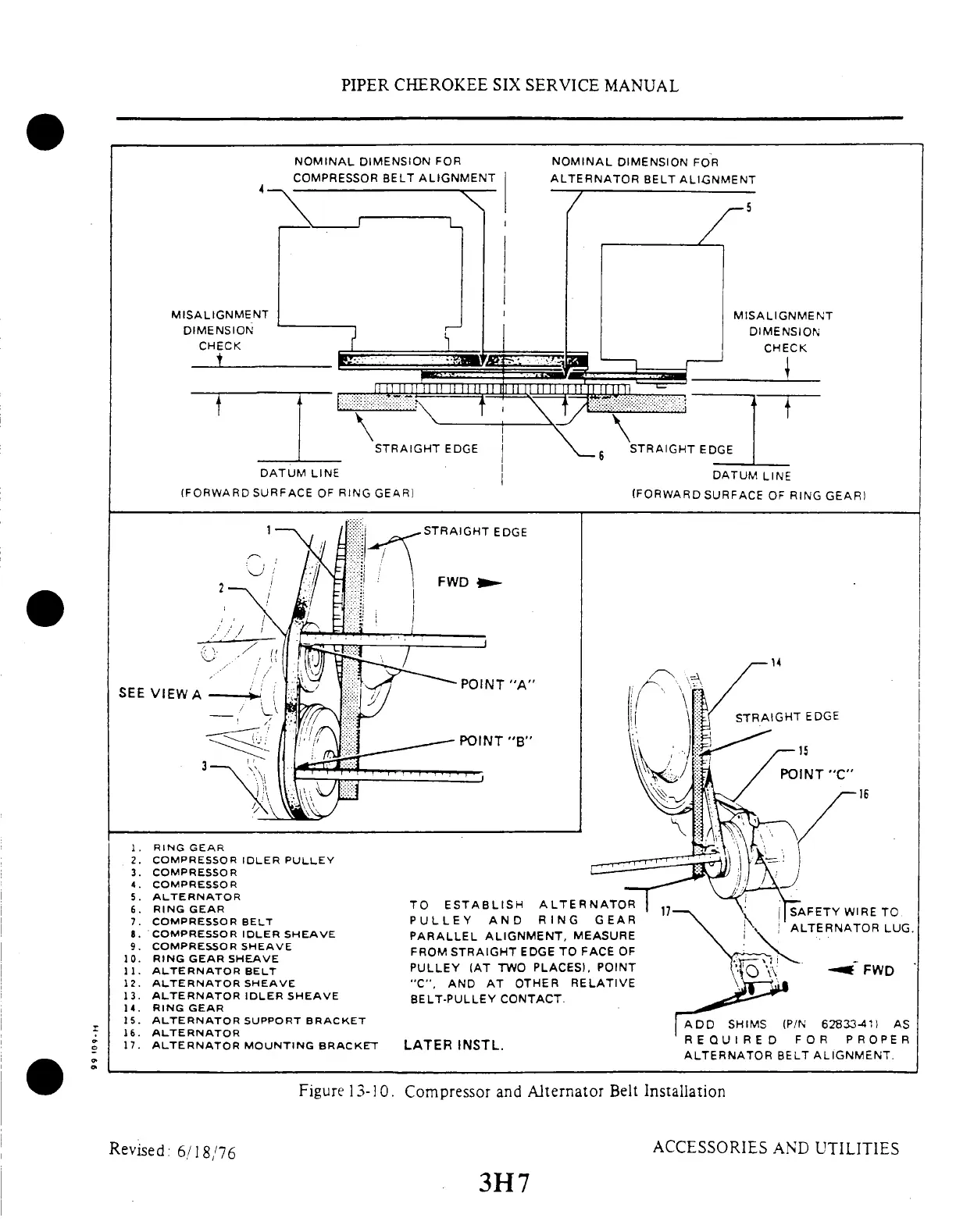

Figure
13-10. Compressor
and
Alternator
Belt Installation
Revised:
6/18/76
ACCESSORIES
AND
UTILITIES
3H7
