Piper Cherokee Six - Page 698

VIEW
A-A
ADD OR REMOVE
SHIMS
(P/N
62833-83)
AS REQUIRED
FOR
PROPER
COMPRESSOR
BELT
ALIGNMENT.
PIPER CHEROKEE
SIX SERVICE
MANUAL
PRESENT
INSTL.
BRACKET
ASSY. P/N
79584-2
ADD
OR REMOVE
SHIMS P/N 62833-82
AS REQUIRED
TO ALIGN
IDLER IN
BELT
PLANE
.............
. .
.. .
. .
. . .
. .
936
POI
POINT "D"
PRESENT INSTL.
INSURE THERE
IS POSITIVE
CLEARANCE
BETWEEN
JAM NUT
AND MOUNTING BRACKET.
EARLY
INSTL.
VIEW A

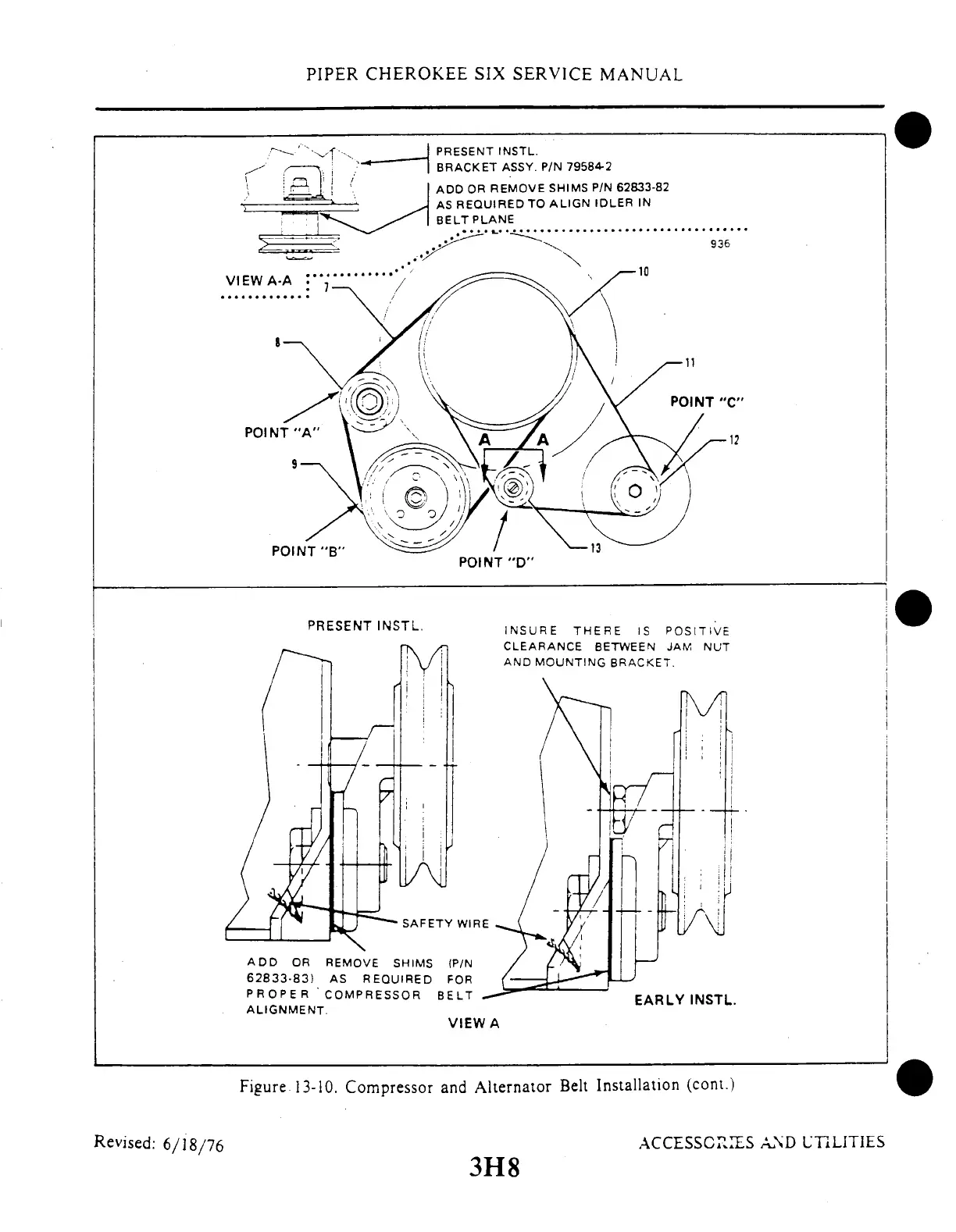

Figure 13-10. Compressor and Alternator Belt Installation (cont.)
Revised:
6/18/76
