ENGLISH
13

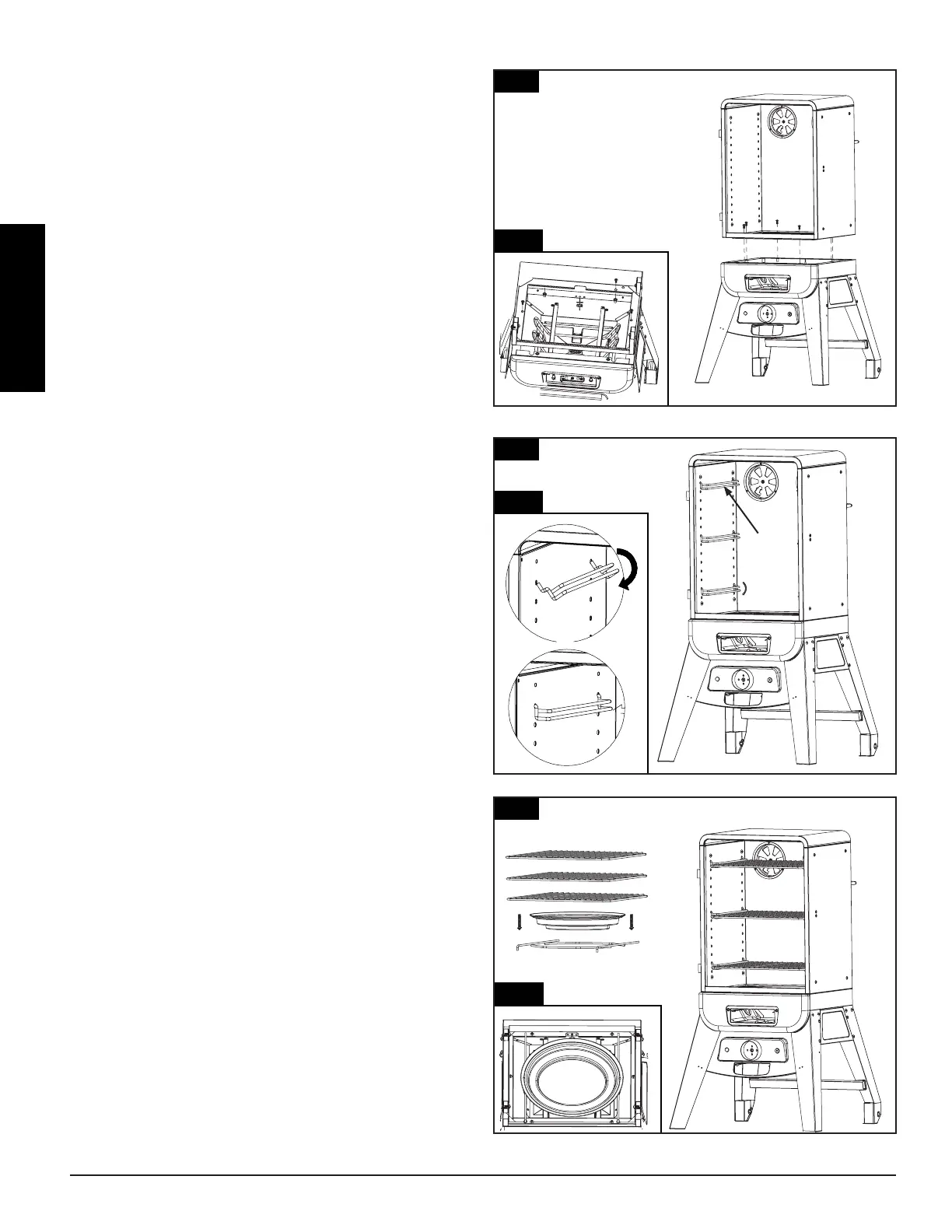

Fig.10.1
10.
Parts Required:
1 x Upper Smoker Cabinet Assembly (#2)
1 x Lower Smoker Cabinet Assembly (#14)
6 x #10-24*1/2”(#C)
Installation:
• Mount Upper Smoker Cabinet Assembly (#2)
to the Lower Smoker Cabinet Assembly (#14)
using 6 x #10-24*1/2” (#C) as Fig.10 & Fig.10.1
shown.
Note: Assemble all (6) screws, align the Upper Cabinet to the
Lower Cabinet then tighten all screws as Fig.10 and Fig.10.1
shown.
11.
Parts Required:
6 x Cooking Grid Support (#5)
1 x Upper Smoker Cabinet Assembly (#2)
Installation:
• Assemble three Cooking Grid Supports (#5) in
the holes in the left side of the smoker. Repeat
the procedure for the right side making sure
the Cooking Grid Support (#5) on the left side
and right side are at the same height as Fig.11
& Fig.11.1 shown, so the Cooking Grids are level.
12.
Parts Required:
3 x Cooking Grid (#4)
1 x Water Pan Support (#16)
1 x Water Pan (#15)
Installation:
• Place Water Pan Support (#16)and Water Pan
(#15) onto the bottom area of Cabinet and
place three Cooking Grids(#4) into the Cooking
Grid Support as Fig.12 & Fig.12.1 shown.
Fig.11
Fig.11.1
5
Fig.12
Fig.12.1
4
15
16
To Next Page
