IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws completely
until all screws for that step have been installed, or unless otherwise mentioned.
1.
Parts Required:
1 x Lower Smoker Cabinet with Control Panel
Assembly (#14)
1 x Right Front Leg (#22)
1 x Left Front Leg (#19)
1 x Right Rear Leg with Wheel Assembly (#17)
1 x Left Rear Leg with Wheel Assembly (#18)
12 x 1/4-20*1/2”Screw (#B)
Installation:
• Place a piece of cardboard on the floor to
prevent scratching the unit. Remove the Door
Assembly (#7) and set aside. Lay the Lower
Smoker Cabinet with Control Panel Assembly
on up side down on the cardboard as Fig.1
shown.
• Mount Right Front Leg (#22), Left Front Leg
(#19), Right Rear Leg with Wheel Assembly
(#17) and Left Rear Leg with Wheel Assembly
(#18) to the Lower Smoker Cabinet with
Control Panel Assembly (#14) using 12x1/4-
20*1/2”Screws (#B) as Fig.1 & Fig.1.1 shown,
tighten inside screws only, but do not tighten
all outside screws yet as Fig.1 shown.
Parts are located throughout the shipping carton, including inside the electric smoker. Inspect the unit, parts,
and hardware blister pack after removing from the protective shipping carton. Before assembly of product,
review all parts and reference the parts list. If any part is missing or damaged, do not attempt to assemble.
Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Customer Care for parts.
Tools required for assembly: screwdriver and wrench. Tools are not included.

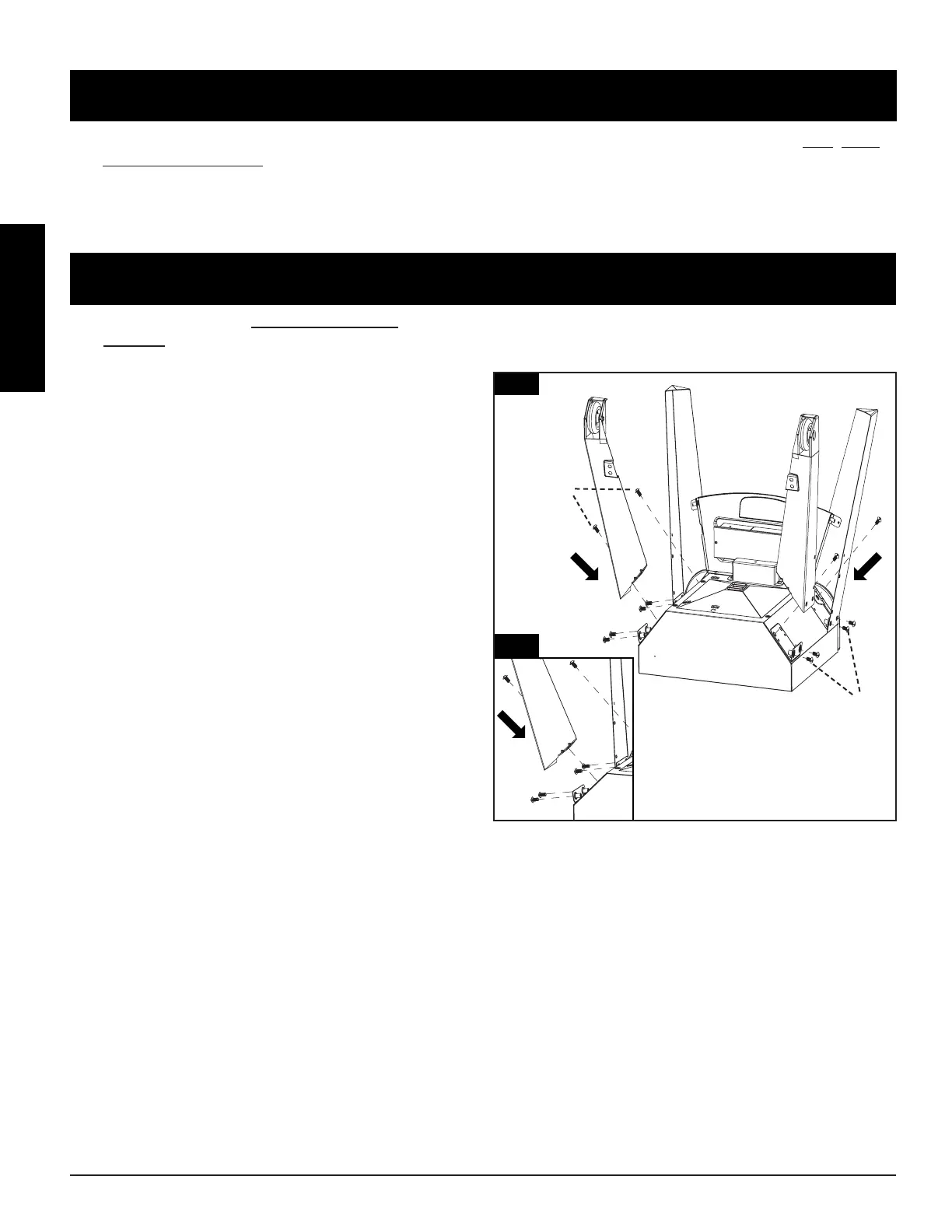

Fig.1
