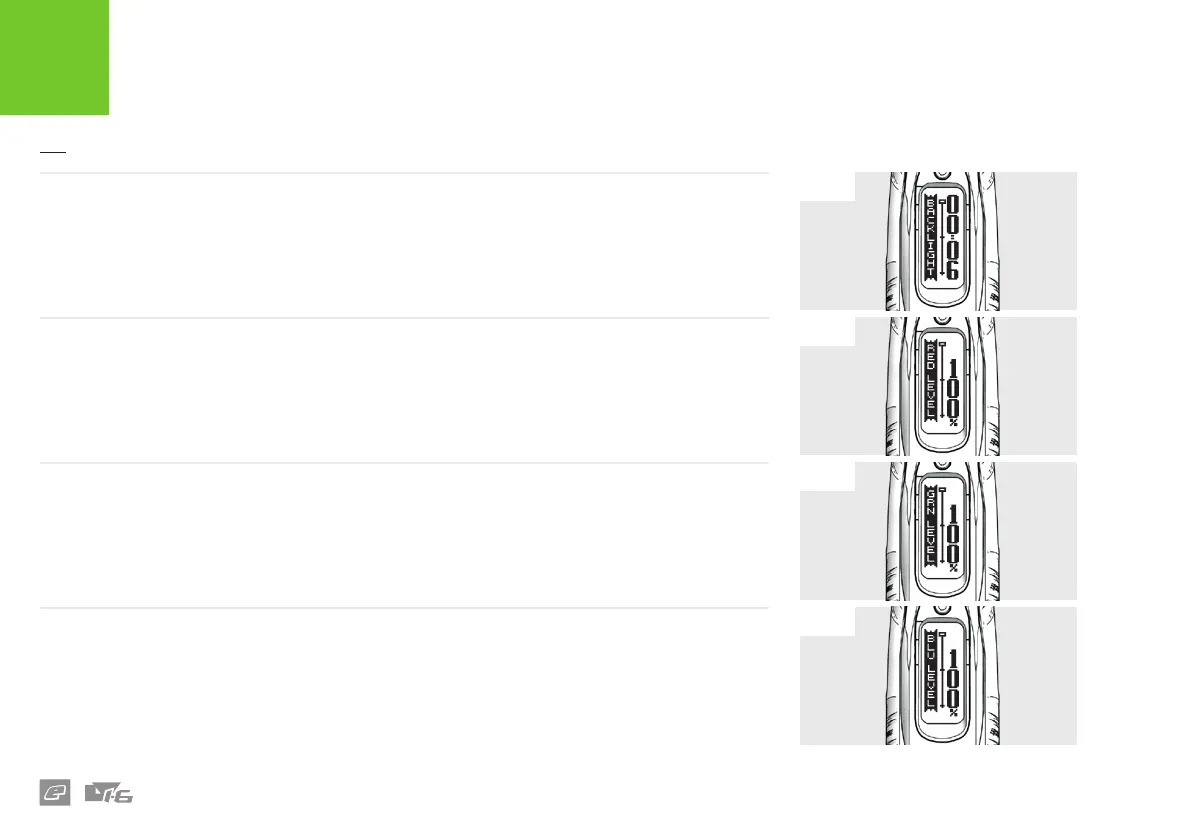

FIG-1 - BACKLIGHT PARAMETER
Sets the time that the LCD backlight is illuminated
for after a push-button is pressed.
This parameter can be set between 00:00 and
00:20 seconds. Setting this parameter to 00:00
will prevent the backlight from coming on.
FIG-2 - RED LEVEL PARAMETER
Sets the power level of the red backlight LED.
This parameter can be set between 0% and
100% in 1% increments.
FIG-3 - GRN LEVEL PARAMETER
Sets the power level of the green backlight LED.
This parameter can be set between 0% and
100% in 1% increments.
FIG-4 - BLU LEVEL PARAMETER
Sets the power level of the blue backlight LED.
This parameter can be set between 0% and
100% in 1% increments.
