Planet SGSW-2620 User Manual

- 30 -
Figure 4-30 802.1Q VLAN Configure save successfully screen
Press any key for return to previous menu.
Press space bar switch to Port Based in VLAN mode. The screen in Figure 4-31 appears.
After setup completed, press “ESC” and choose “Save” to save the current configuration. The fol-
lowing screen in Figure 4-32 and 4-33 appears.

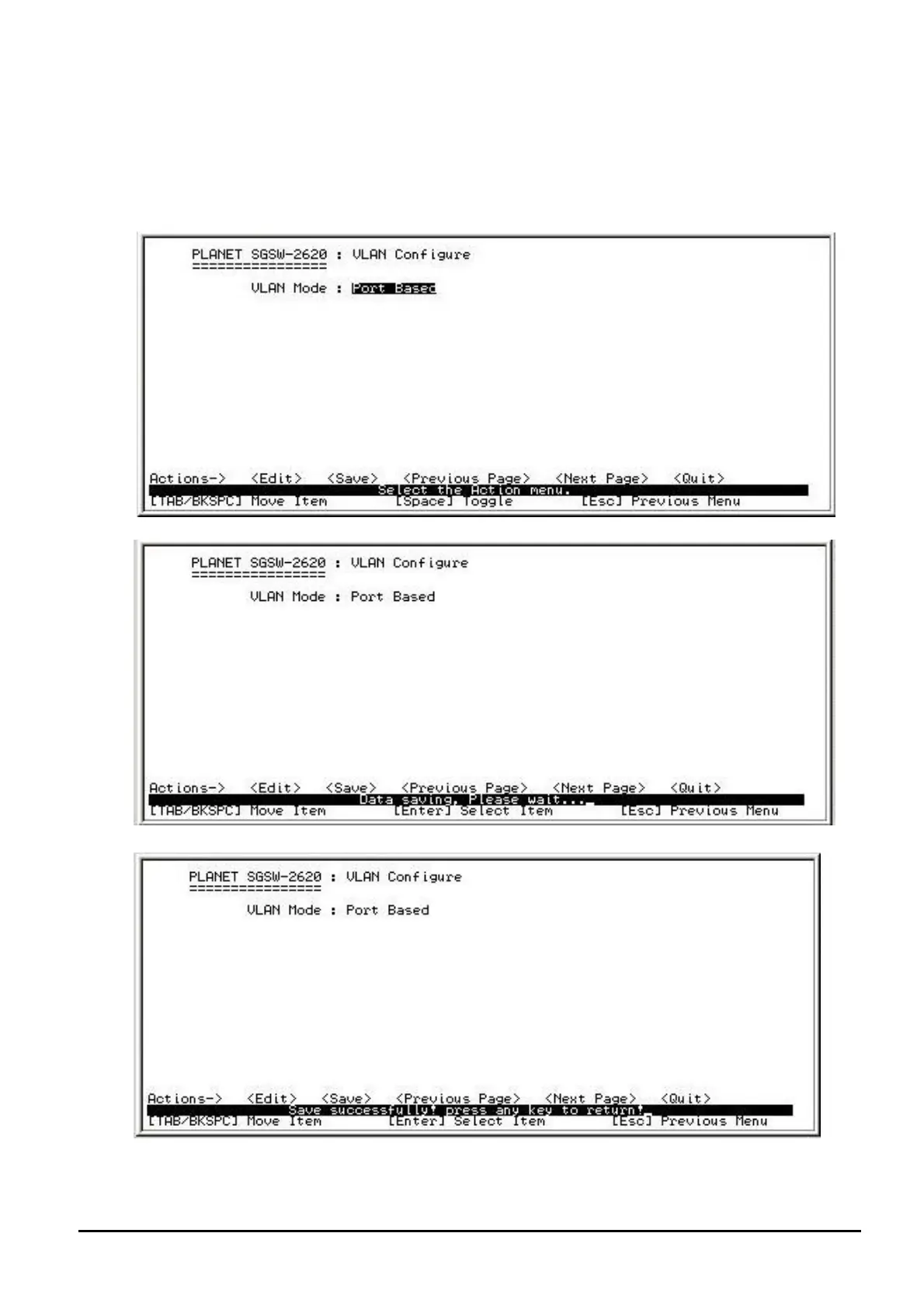

Figure 4-31 Port-based VLAN screen
Figure 4-32 Save Port Based VLAN Configure process screen
Figure 4-33 Port Based VLAN Configure save successfully screen
Press any key for return to previous menu.
