Planet SGSW-2620 User Manual

- 38 -

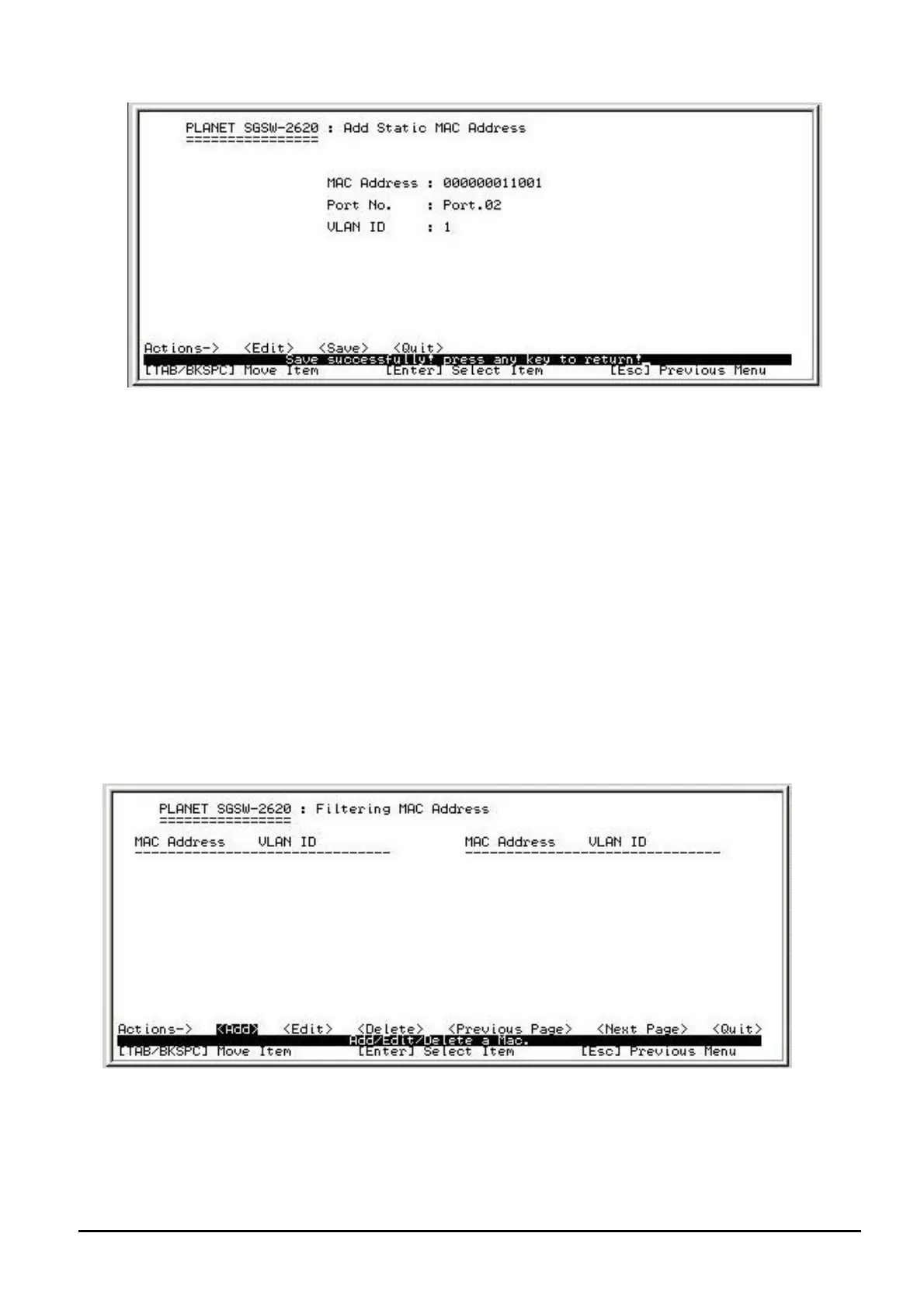

Figure 4-49 Static MAC Address Configuration save successfully screen
Press any key for return to previous menu.
Edit Static Mac address procedure:
1.Press “Edit”.
2.Choose the MAC address that want to edit and press “Enter”.
3.Press “Edit” to edit the existence MAC address.
4.After setup completed, press “ESC” and choose “Save” to save the current configuration.
Delete Static MAC address procedure:
1.Press “Delete”.
2.Choose the MAC address that want to edit and press “Enter”.
3.After setup completed, press “Save” to save the current configuration.
4.4.2.7.2 Filtering MAC Address
Figure 4-50 Filter MAC Address Configuration screen
Press “Add” to add a Filter MAC address, after setup completed, press “ESC” and choose “Save” to
save the current configuration. The screen in Figure 4-51 appears
