This sub-menu contains five items:
Set RSTP Mode: please refer to chapter 4.4.3.1.1.
System Configuration: please refer to chapter 4.4.3.1.2.
Per port Setting: please refer to chapter 4.4.3.1.3.
Per port Status: please refer to chapter 4.4.3.1.4.
Previous Menu: please refer to chapter 4.4.3.1.5.
4.4.3.1.1 Set RSTP Mode
Provide disable or enable STP or RSTP function. The RSTP Setup screen in Figure 4-55 appears.

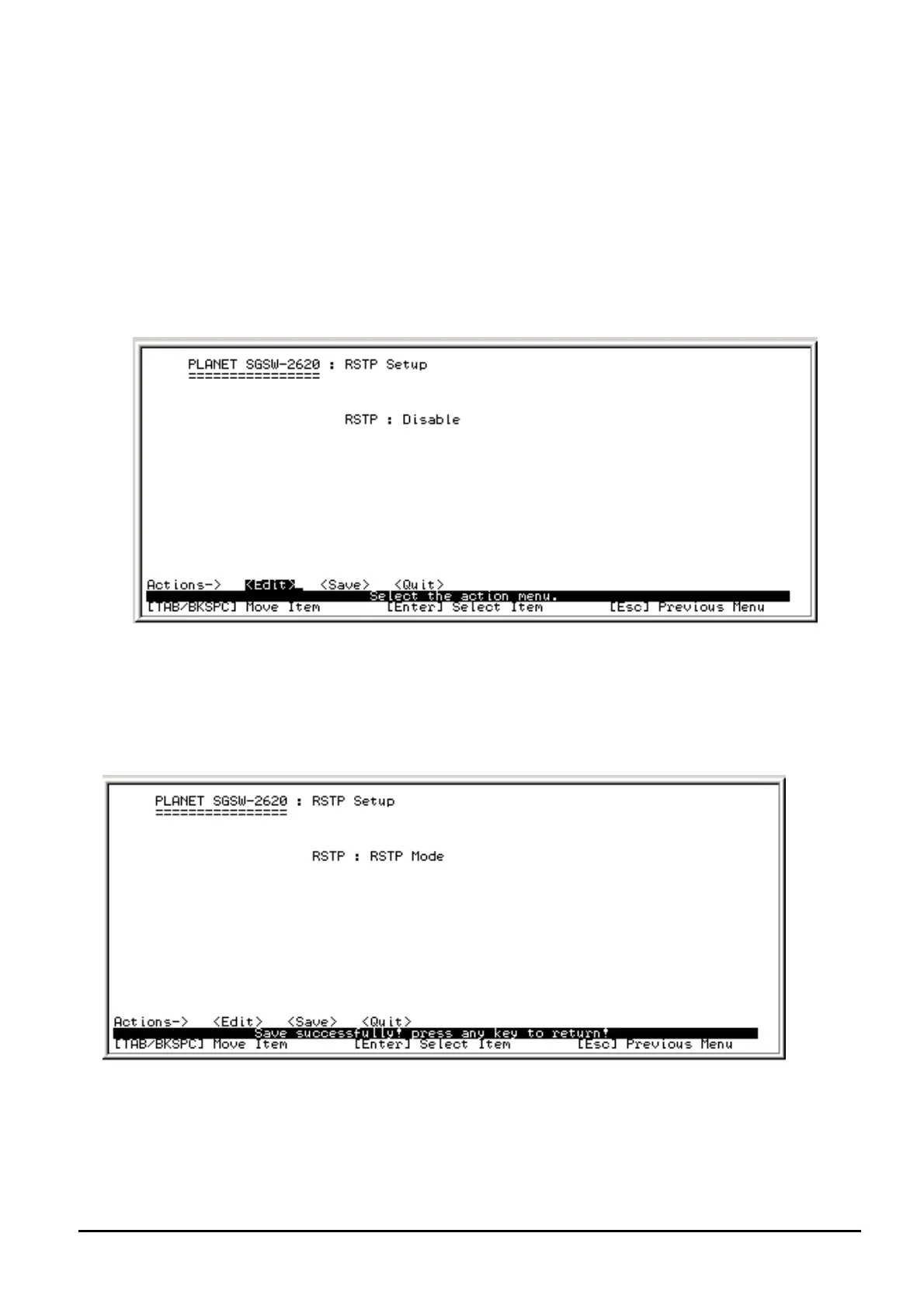

Figure 4-55 RSTP Setup screen
Setup procedure:
1. Press “ Edit” to disable or enable STP or RSTP function.
2. After setup completed, press” ESC” and choose “Save” to save the current configure. The screen in
Figure 4-56 appears.
Figure 4-56 RSTP Setup save successfully screen
Press any key for return to previous menu.
