4.4.3.1.2 System Configuration
Allow modify the RSTP system configuration and view the Root Bridge Information. The System
Configuration screen in Figure 4-57 appears.

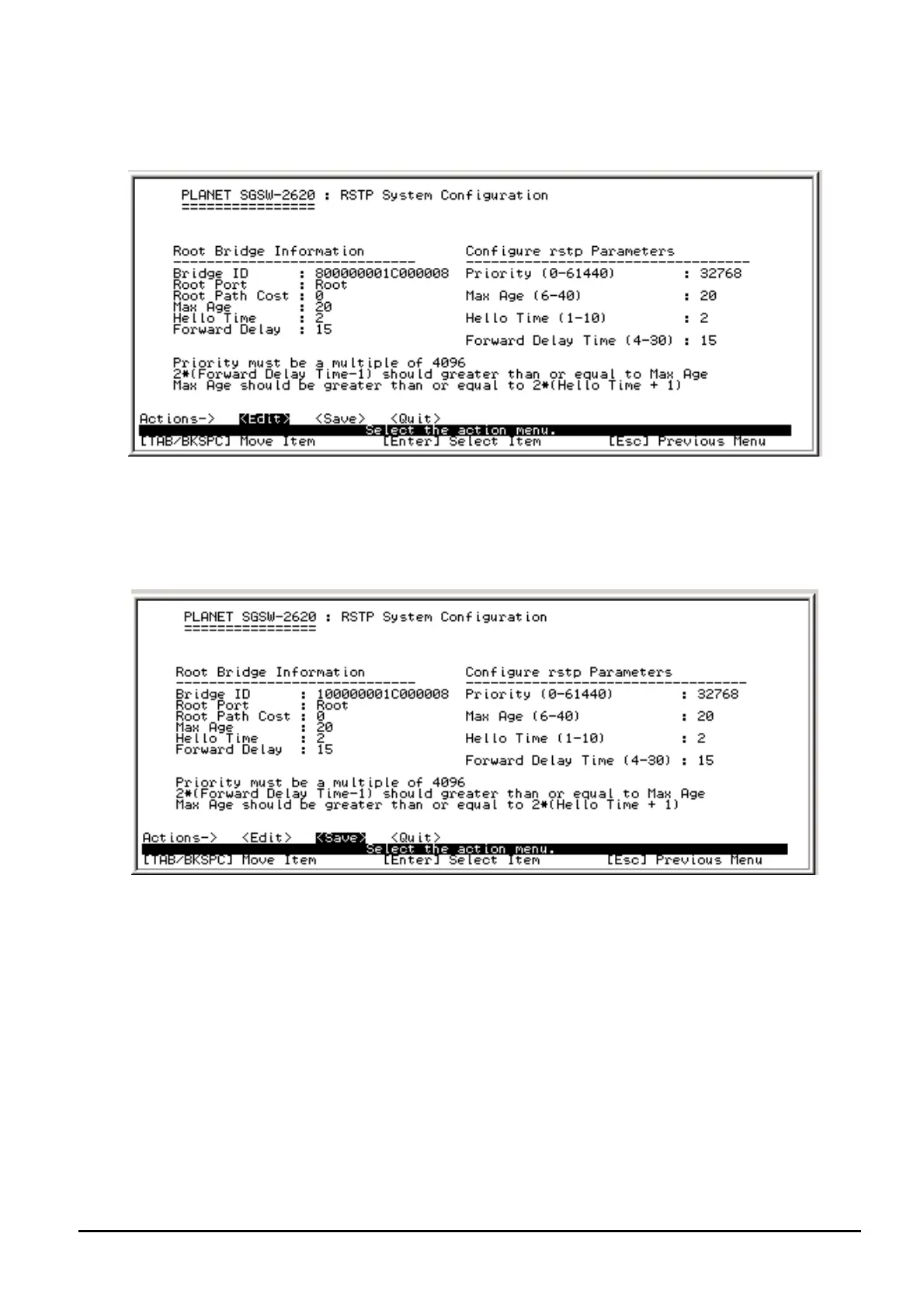

Figure 4-57 RSTP system configuration screen
Setup procedure:
1. Press “ Edit” to modify the Rapid Spanning Tree Parameters.
2. After modify completed, press” ESC” and choose “Save” to save the current configure. The screen in
Figure 4-58 appears.
Figure 4-58 STP system configuration save successfully screen
Press any key for return to previous menu.
4.4.3.1.3 Per Port Setting
