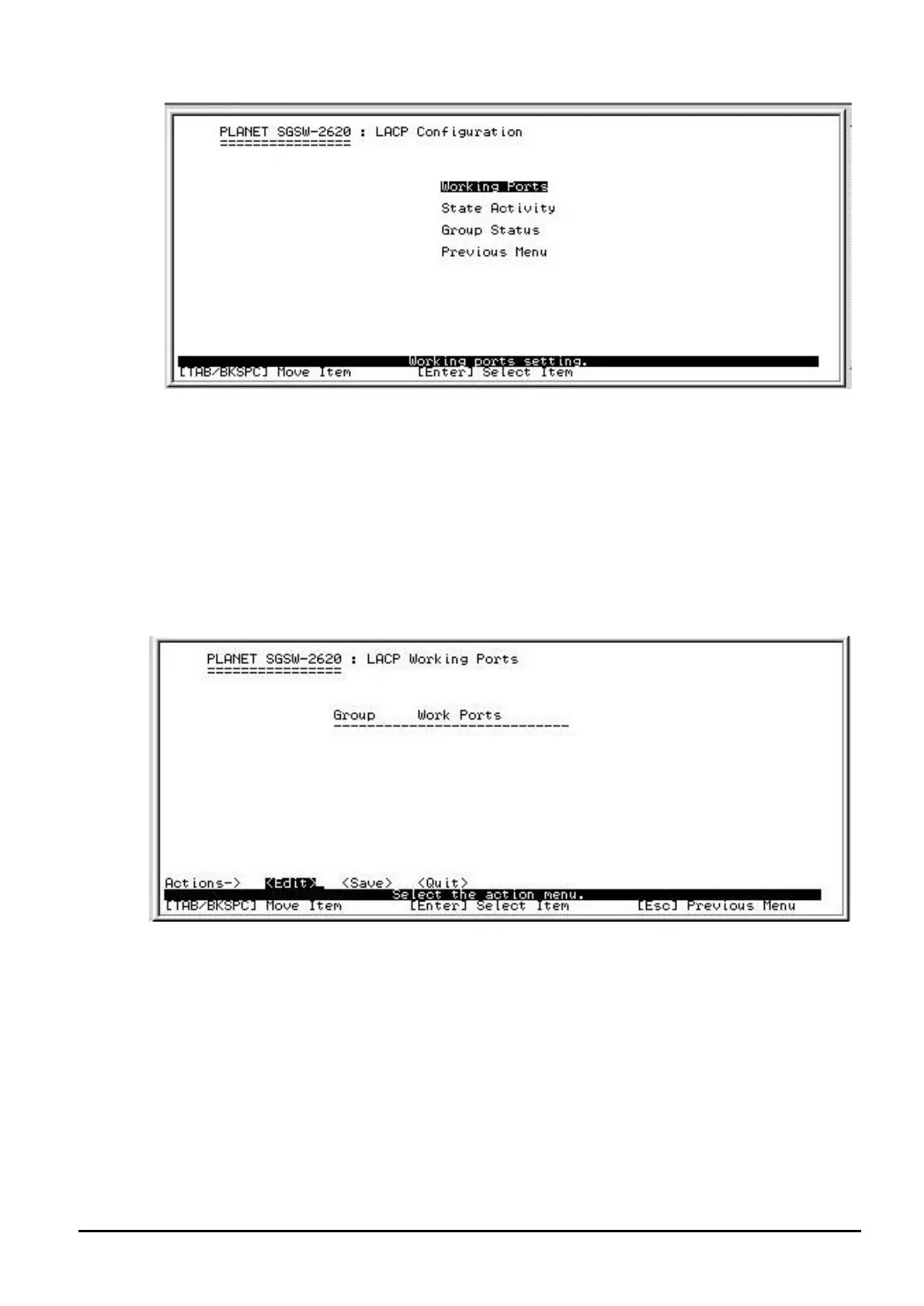

Figure 4-71 LACP Configuration screen
This subnet menu contains four items:
Working Ports: please refer to chapter 4.4.3.3.1.
State Activity: please refer to chapter 4.4.3.3.2.
Group Status: please refer to chapter 4.4.3.3.3.
Previous Menu: please refer to chapter 4.4.3.3.4.
4.4.3.3.1 Working Ports
Allow editing the LACP working ports configuration. The working ports screen in Figure 4-72
appears.
Figure 4-72 LACP Working Ports screen
Edit LACP Working Ports procedure:
1.Press “Edit”.
2.The Group display the Trunk group ID
3.The Working Ports display the maximum number of ports can be aggregated at the same time, in the LACP
trunk group, the exceed ports is standby and able to aggregate if work ports is fail. If it’s local static trunk
group and the number must be the same as group ports.
4.After setup completed, press “ESC” and choose “Save” to save the current configuration.
